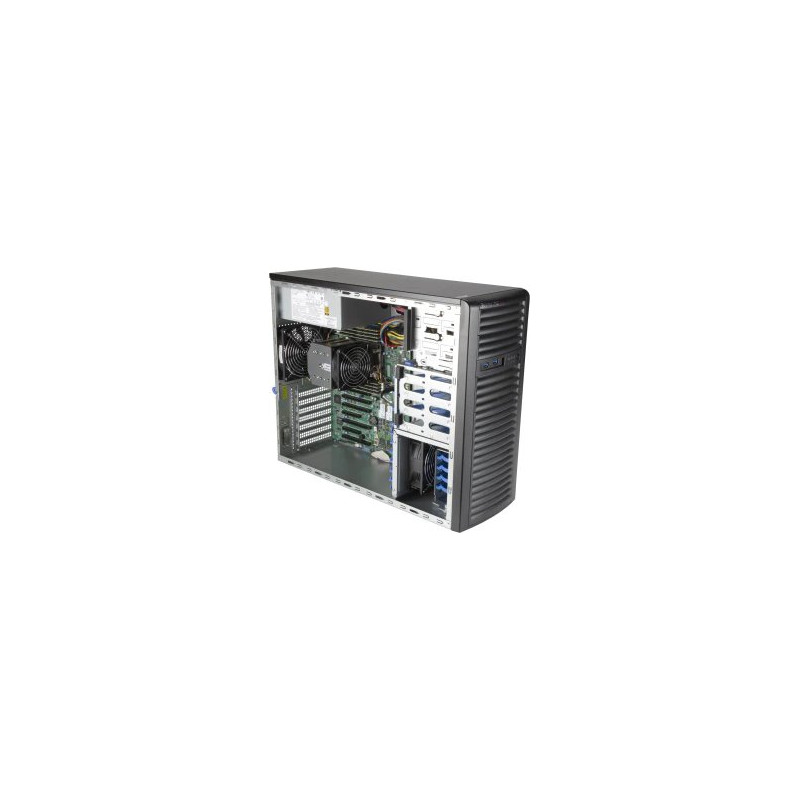

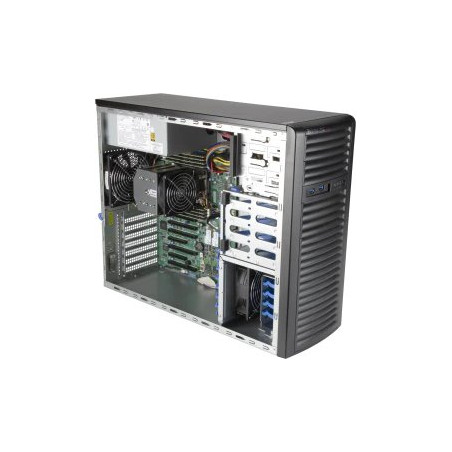

SUPERMICRO A+ Server TWR/4U SP3, 8x DDR4, 8x 3,5", 900W(gold), 2x1GbE, IPMI, OOB

Key Applications- Entry-Level Workstation

- Video and Music Production

- 3D Simulation and Rendering

- Office Applications

 Key Features

1.Single AMD EPYC™ 7002/7003 Series Processor

2.8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

3.5 PCI-E 4.0 x16 (LP), 2 PCI-E 4.0 x8 (LP)

4.Integrated IPMI 2.0 + KVM with?dedicated LAN

• Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

5.4 internal 3.5" SATA3 drive bays and 4 internal 2.5" drive bays

M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 nM.2 Key: M-Key

6.6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, ASPEED AST2500 BMC graphics

7.Dual Gigabit LAN ports

8.900W Gold Level Power Supply

Product SKUs   AS -3014TS-i A+ Server 3014TS-i (Black)   Motherboard   Super H12SSL-i   Processor/Chipset   CPU Single AMD EPYC™ 7002/7003 Series Processor Socket SP3 Supports CPU TDP up to 280W Cores Up to 64 Cores   System Memory   Memory Capacity 8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs   On-Board Devices   Chipset System on Chip SATA SATA3 (6Gbps) Network Controllers Broadcom BCM5720 Gigabit Ethernet Controller IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video ASPEED AST2500 BMC   Input / Output   SATA 8 SATA3 (6 Gbps) ports LAN Dual Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port USB 6 USB 3.0 ports (4 rear, 2 via header) COM 1 COM Port (rear) Video 1 VGA port DOM 1 SuperDOM (Disk on Module) port   System BIOS   BIOS Type AMI 256Mb SPI Flash EEPROM   Management   Software Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN Power Configurations ACPI / APM Power Management   PC Health Monitoring   CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN 2 Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis   Form Factor Mid-Tower Model CSE-732i-903B   Dimensions and Weight   Width 7.6" (193mm) Height 16.7" (424mm) Depth 20.68" (525mm) Packaging (W x H x L) 11.97" (304mm) x 21.38" (543mm) x 25.27" (642mm) Net Weight 27 lbs (12.25 kg) Gross Weight 30 lbs (13.61 kg) Available Colors Black   Front Panel   Buttons Power On/Off button LEDs Power status LED HDD activity LED Network activity LEDs System Information LED Ports 2 USB 3.0 Ports   Expansion Slots   PCI-Express 5 PCI-E 4.0 x16 (LP) slots 2 PCI-E 4.0 x8 (LP) slots M.2 Interface: 2 PCI-E 4.0 x4 Form factor: 2280, 22110 Key: M-key   Drive Bays   Internal 4 internal 3.5" SATA3 drive bays 4 internal 2.5" drive bays   System Cooling   Fans 2x 12cm rear exhaust fans Optional additional 12cm rear exhaust fan   Power Supply   900W AC multi output power supply AC Voltage 100-240 V, 50-60 Hz, 10-6 Amp +5V Standby 3 Amp +12V1 25 Amp +12V2 25 Amp +12V3 25 Amp +12V4 25 Amp +5V 25 Amp +3.3V 25 Amp -12V 0.5 Amp Certification    Gold Level Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.   Operating Environment   RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-H12SSL-i   CSE-732i-903B	1   1	Super H12SSL-i Motherboard   3U Mid-Tower Chassis
Cable 1	CBL-0082L	2	Y SPLIT SATA POWER ADAPTER, PB FREE
Cable 2	CBL-PWCD-0160-IS	1	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Cable 3	CBL-SAST-1270-100	1	Slimline x8 (STR) to 8x SATA,70CM,100 OHM,RoHS
FAN 1	FAN-0077L4-1	1	120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732
Parts	MCP-260-00042-0N	1	STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention	SNK-P0064AP4	1	4U Active CPU Heat Sink for AMD Socket SP3 Platform
*Power Supply	PWS-903-PQ	1	PS2 900W Multi-Output Power Supply 80Plus Gold
*Cable 4	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Cable 5	CBL-CUSB-1007	1	20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
*Cable 6	CBL-0084L	1	16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
*Drive Tray(s)	MCP-220-73101-0B	4	SC731 Tool-less Internal 3.5inch HDD Tray
*FAN 2	FAN-0124L4	1	12 CM x 12 CM fan
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
	Part Number	Qty	Description
TPM	AOM-TPM-9655V	-	Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9655V-S	-	Based on AOM-TPM-9655V with Server TXT package
AOM-TPM-9665V	-	AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
AOM-TPM-9665V-S	-	Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
