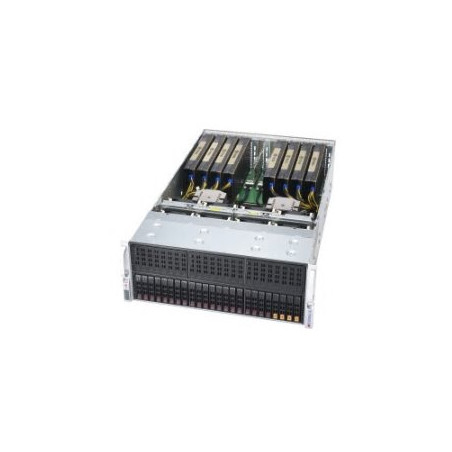

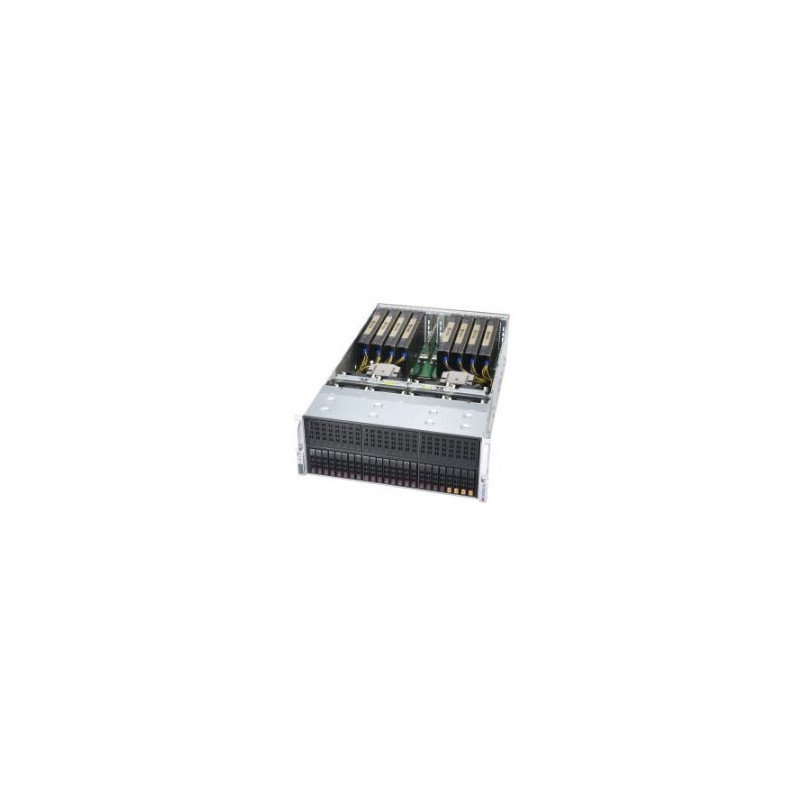

SUPERMICRO 4U AMD GPU server 2xSP3 SoC, 32x DDR4 R, 24x 2,5HS (4xU.2) , 8x GPU ready, 2+2 2000W(tit), 2x10Gb BaseT,IPMI

Product SKUs

AS -4124GS-TNR A+ Server 4124GS-TNR (Black)



Motherboard


Super H12DSG-O-CPU


Processor/Cache

CPU Dual AMD EPYC™ 7003/7002 Series Processors
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)*
Socket SP3
Supports CPU TDP up to 280W**

Cores Up to 128 Cores (64 per CPU)

Note * Supports 2 CPUs only – single socket not supported
** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


GPU

Supported GPUs 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)
NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct
Supports both active and passive cooled GPUs
Compatible GPU list

CPU-GPU Interconnect PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root

GPU-GPU Interconnect NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)



System Memory

Memory Capacity 32 DIMM slots*
Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM

Memory Type 3200MHz ECC DDR4 RDIMM/LRDIMM

Note * Minimum 4 DIMMs required with Milan


On-Board Devices

Chipset System on Chip (SoC)

SATA SATA3 (6Gbps)

Network Controllers Provided via riser card

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics ASPEED AST2500 BMC



Input / Output

SATA 24 SATA3 (6Gbps) ports

LAN 2 RJ45 GbE LAN ports (rear)
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (rear)

Video 1 VGA Connector

COM Port 1 COM port (header)



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watchdog



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 4U Rackmountable
Rackmount Kit (MCP-290-00057-0N)

Model CSE-418G2TS-R4016BP



Dimensions

Height 7.0" (178mm)

Width 17.2" (437mm)

Depth 29" (737mm)

Weight Net Weight: 65.5 lbs (29.7 kg)
Gross Weight: 100 lbs (45.3 kg)

Available Colors Black



Drive Bays / Storage

Hot-swap Up to 24x 2.5" SAS/SATA drive bays
2x 2.5" SATA supported natively*
4x 2.5" NVMe supported natively
RAID controller option available for 24 HDDs

Note * 2x drives in RAID 1 only via onboard Marvell 9230


Expansion Slots

PCI-Express 9 PCI-E 4.0 x16 (FHFL) slots
or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices



System Cooling

Fans 8x 11.5K RPM heavy duty fans



Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power 1000W: 100 – 127Vac
1800W: 200 – 220Vac
1980W: 220 – 230Vac
2000W: 230 – 240Vac
2000W: 220 – 240Vac (UL only)

Dimension
(W x H x L) 73.5 x 40 x 203 mm

Input 100-127Vac / 12-9A / 50-60Hz
200-220Vac / 10-9.8A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
220-240Vac / 11-10A / 50-60Hz (UL only)

+12V Max: 83A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 166A / Min: 0A (230-240Vac)
Max: 166A / Min: 0A (220-240Vac) (UL only)

12Vsb Max: 3.5A / Min: 0A

Output Type 25 Pairs Gold Finger Connector

Certification Titanium Level96% Titanium Level
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
