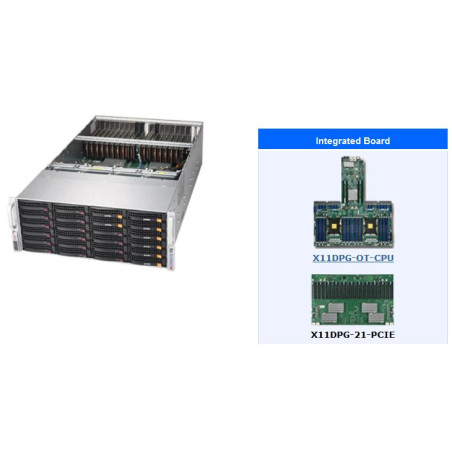

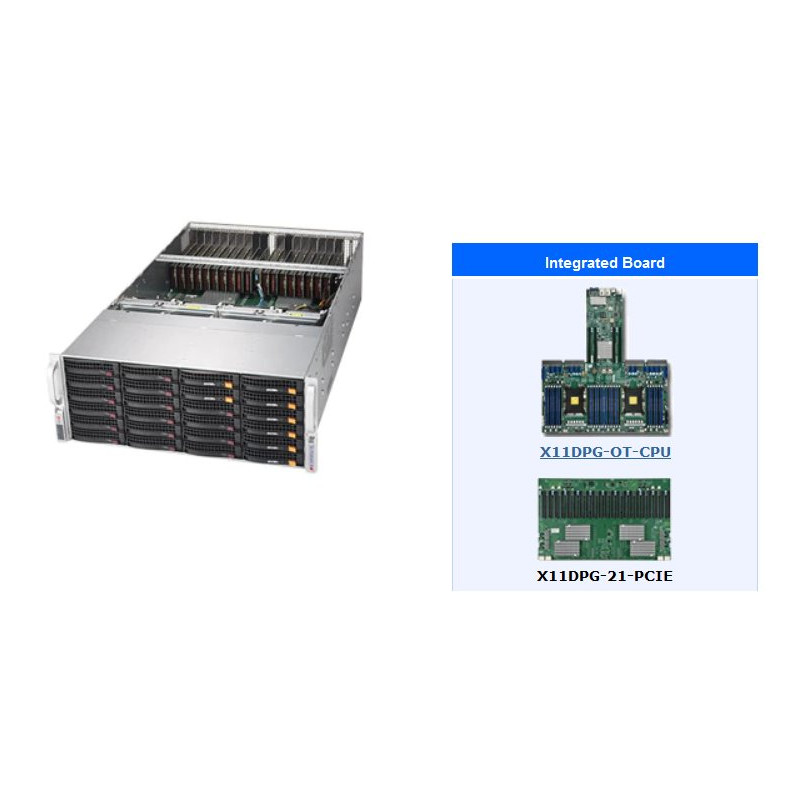

SUPERMICRO 4U GPU server 2x LGA3647, iC622, 24x DDR4, 24x 3,5"HS (2x NVMe opt.), 21x PCIe, 2x2200W(tit), 2x10GbE, IPMI

Product SKUs

SYS-6049GP-TRT SuperServer 6049GP-TRT (Black)



Motherboard


Super X11DPG-OT-CPU


Processor/Cache

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores Up to 28 Cores

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU Support Please refer to: Compatible GPU list



System Memory

Memory Capacity 24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C622 chipset

SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Controllers Dual Port 10GbE from C622

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics ASPEED AST2500 BMC



Input / Output

SATA 24 SATA3 (6Gbps) ports

LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 3.0 ports (rear)

Video 1 VGA Connector

COM Port 1 COM port (header)



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watchdog



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 4U Rackmountable
Rackmount Kit (MCP-290-00057-0N)

Model CSE-848GTS-R4000P



Dimensions

Height 7.0" (178mm)

Width 17.2" (437mm)

Depth 32.1" (815mm)

Weight Net Weight: 65.5 lbs (29.7 kg)
Gross Weight: 100 lbs (45.3 kg)

Available Colors Black



Drive Bays / Storage

Hot-swap 24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives

M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factors: 2280, 22110
Key: M-Key



Expansion Slots

PCI-Express 20 PCI-E 3.0 x16 support up to 20 single width GPU
1 PCI-E 3.0 x8 (FH, FL in x16) slot



System Cooling

Fans 8x 92mm RPM Hot-Swappable Cooling Fans



Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power 1000W: 100 – 120Vac
1800W: 200 – 220Vac
1980W: 220 – 230Vac
2000W: 230 – 240Vac
2000W: 200 – 240Vac (UL/CUL only)

Dimension
(W x H x L) 73.5 x 40 x 265 mm

Input 100-120Vac / 12.5-9.5A / 50-60Hz
200-220Vac / 10-9.5A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)

+12V Max: 83.3A / Min: 0A (100-120Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 166.7A / Min: 0A (230-240Vac)
Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)

12Vsb Max: 2.1A / Min: 0A

Output Type 25 Pairs Gold Finger Connector

Certification Titanium Level96% Titanium Level
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
