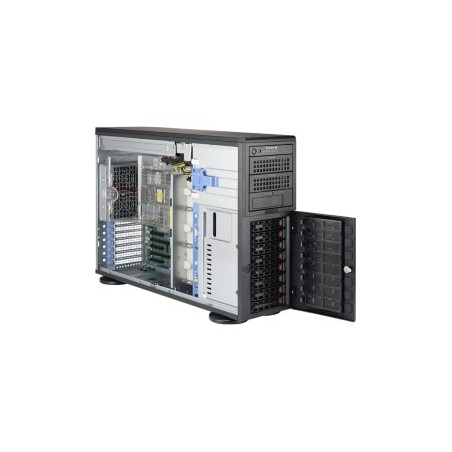

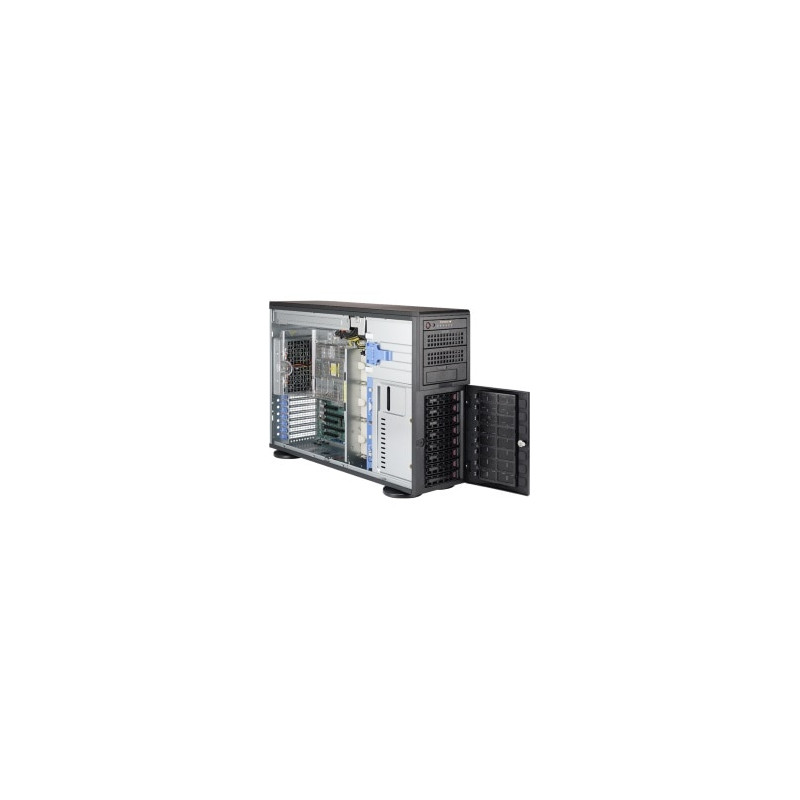

SUPERMICRO A+ Server TWR/4U 2x SP3, 16x DDR4, 8x 3,5", 2x1280W(plat), 2x10GbE, IPMI

Product SKUs

AS -4023S-TRT A+ Server 4023S-TRT



Motherboard

H11DSi-NT


Processor/Chipset

CPU Dual AMD EPYC™ 7001/7002* series Processors
(* Board revision 2.x required)
Socket SP3
Supports CPU TDP 225W / cTDP up to 240W*

Cores Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)

Chipset System on Chip (SoC)



System Memory

Memory Capacity 16 DIMM slots
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus

Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

SATA SATA3 (6 Gbps)

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers 2 Intel® X550 10GBase-T Ethernet Controllers
1 Realtek RTL8211E PHY (dedicated IPMI)

VGA ASPEED AST2500 BMC



Expansion Slots

PCI-Express 2 PCI-E x16 slots
3 PCI-E x8 slots

M.2 Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
Form factor: 2280, 22110
Key: M-key



Input / Output

SATA 10 SATA3 (6 Gbps) ports

LAN Dual 10G LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (rear)
2 USB 2.0 ports (rear)

VGA 1 VGA port

SAS 8 SAS3 ports support via optional Add-on Card

NVMe 2 NVMe support with optional cables

Others 1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header



System BIOS

BIOS Type AMI 128Mb SPI Flash EEPROM

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1







Chassis

Form Factor Tower / 4U Rackmountable

Model CSE-745BTS-R1K28BP2



Dimensions

Height 17.8" (452mm)

Width 7" (178mm)

Depth 25.5" (647mm)



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED



Drive Bays

Hot-swap 8 hot-swap 3.5" Drive Bays: 8 SATA3 by default
or 8 SAS3




Peripheral Drives

5.25" 3 peripheral 5.25" drive bays



Backplane

HDD Backplane Supports 8 SATA3 or 8 SAS3 HDD



System Cooling

Fans 3 internal hot-swap 9400 RPM fans
2 external rear hot-swap 9400 RPM fans



Power Supply

1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input 1000W Output @ 100-140V, 8-12A, 50-60Hz
1280W Output @ 180-240V, 6-8A, 50-60Hz

DC Output 1000W: +12V/83A; +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A

Certification Platinum Level Certified95%+
Platinum Certified
[ Test Report ]


PC Health Monitoring

CPU Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic

LED CPU / System Overheat LED

Other Features Chassis Intrusion Detection
Chassis Intrusion Header



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
