SUPERMICRO microtower server LGA1151(8/9g), C242, 2x DDR4, 4x 3.5" HS SATA3, M.2, 250W (80+ Bronze)

Product SKUs

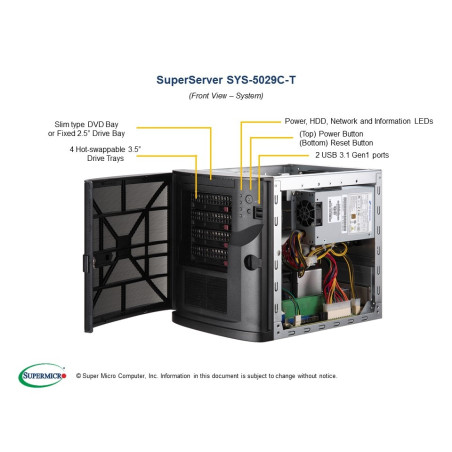

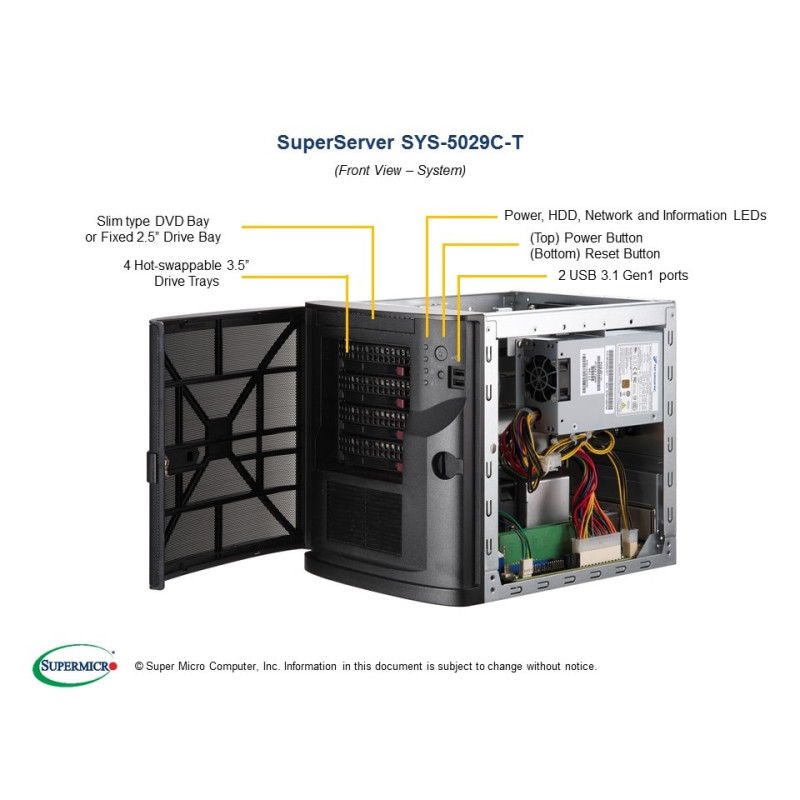

SYS-5029C-T SuperServer 5029C-T (Black)



Motherboard


Super X11SCL-iF


Processor

CPU Single Socket H4 (LGA 1151),
CPU TDP support up to 80W
Support Intel® Xeon® Processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors

Cores 6 cores, 12 threads

Note BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series



System Memory

Memory Capacity 2 DIMM slots
Up to 64GB ECC UDIMM
Up to DDR4-2666MHz

Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM

DIMM Sizes 32GB, 16GB, 8GB, 4GB

Note Future support for 64GB via BIOS update expected in early 2019



On-Board Devices

Chipset Intel® C242 chipset

SATA SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support

IPMI ASPEED AST2500

Network Controllers Dual LAN with Intel® I210-AT

Video ASPEED AST2500 BMC



Input / Output

SATA 4 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.1 Gen1 (front)
2 USB 3.1 Gen1 (rear)
2 USB 2.0 (rear)

Video 1 VGA port

Serial Port / Header 1 COM port

DOM SATA DOM (Disk on Module) power connector support

TPM 1 TPM 2.0 Header



Management

Software SuperDoctor® 5
Watch Dog
Non-maskable Interrupt (NMI)
Chassis intrusion detection







Chassis

Form Factor Mini Tower

Model CSE-721TQ-350B2



Dimensions and Weight

Height 9.45" (240mm)

Width 8.27" (210mm)

Depth 11" (279mm)

Weight Gross Weight: 15 lbs (6.8 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
Network activity LEDs
System Information LED

Ports 2 USB 3.1 Gen1 ports



Expansion Slots

PCI-E 1 PCI-E 3.0 x16 slot, for low-profile AOC



Drive Bays

HDD 4 Hot-swap 3.5" drive bays with BPN
2 internal 2.5" drive bays

Peripheral 1 optional slim DVD-ROM bay



Power Supply

350W Flex ATX Multi-output Gold Power Supply
Total Output Power and Input 350W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

+5V Max:15 Amp; Min:0.2 Amp

+12V Max:28 Amp; Min:0.1 Amp @100V-240V

+3.3V Max: 10 Amp Min: 0.1 Amp

5VSB Max: 2 Amp Min: 0.05 Amp

-12V Max: 0.3 Amp Min: 0.05 Amp

Certification 80 PLUS Gold Level


PC Health Monitoring

CPU Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3+0 CPU switch phase voltage regulator
CPU thermal trip support

FAN Low noise fan speedcontrol

Temperature Monitoring for CPU and chassis environment
Thermal Control for 4x 4-pin fan connectors
Platform Environmental Control Interface (PECI)



System BIOS

BIOS Type UEFI 256Mb

BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
20% to 95% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
