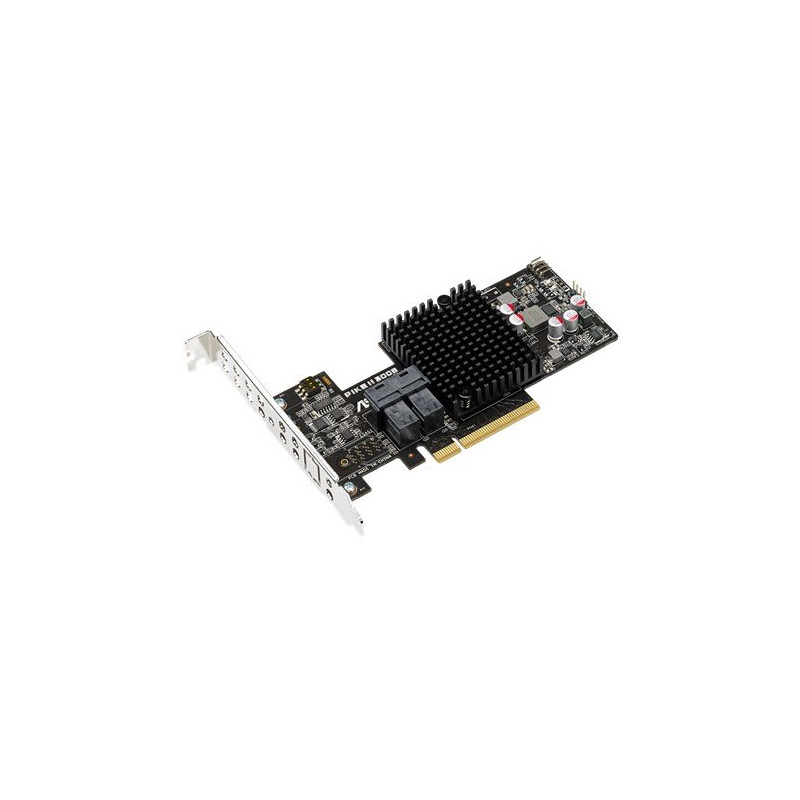

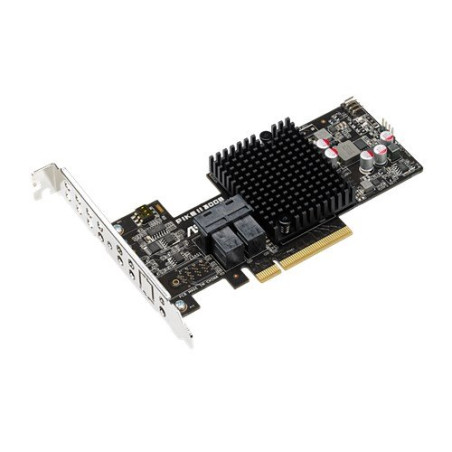

ASUS PIKE II 3008-8i, RAID 0, 1, 10, 1E

Chipset

LSI SAS 3008


Interface

PCI-E Gen 3


Ports

8 Ports *1


RAID levels

RAID 0/RAID 1/RAID 10/RAID 1E


Devices Supported

SATA :
SATA 3Gb/s, SATA 6Gb/s
SAS :
SAS 3Gb/s, SAS 6Gb/s, SAS 12Gb/s


Data Rate

SAS 12Gb/s


Form Factor

5.81 " x 2.71 " Inch


Package Content

1 x Full-height Bracket (Default)
1 x Low-profile Bracket
1 x HDD LED Cable
1 x Support DVD (per carton)


Note

*1 8 SAS 12Gb/s Ports(2 Mini-SAS HD SFF-8643)

*Support ASUS server and workstation motherboard/system :

(1) Z10PE-D16 Series, Z10PR-D16, Z10PH-D16, Z10PA-D8 Series, Z10PA-U8 Series, Z10PE-D8 WS, Z10PE-D16 WS, X99-E WS
ESC8000 G3, ESC4000 G3S Series, ESC4000 G3 Series, RS700-E8 Series, RS720-E8-RS24-E, RS500-E8 Series, RS520-E8 Series, RS720Q-E8-RS12, TS500-E8-PS4, TS700-E8 Series

(2) Z9PE-D16-10G/DUAL Series, Z9PE-D16 Series, Z9PH-D16 Series, Z9PR-D16, Z9PR-D12, Z9PA-D8 Series, Z9PA-U8 Series, Z9NR-D12, Z9NA-D6 Series, Z9NH-D12, Z9PE-D8 WS
RS700-E7 Series, RS720-E7/RS24-EG, RS720-E7/RS12 Series, TS700-E7/RS8, RS720Q-E7/RS12 Series, TS700-X7/PS4
** Ensure to update BIOS to the latest version before using PIKE II 3008 Series card.

(3) P9D-E/4L, P9D-C/4L, P9D-MH Series, P9D-M, P9D-MV, P9D-V, P9D-X, P9D-I, P9D-IV, P9A-I Series
** Ensure to update BIOS to the latest version before using PIKE II 3008 Series card.
