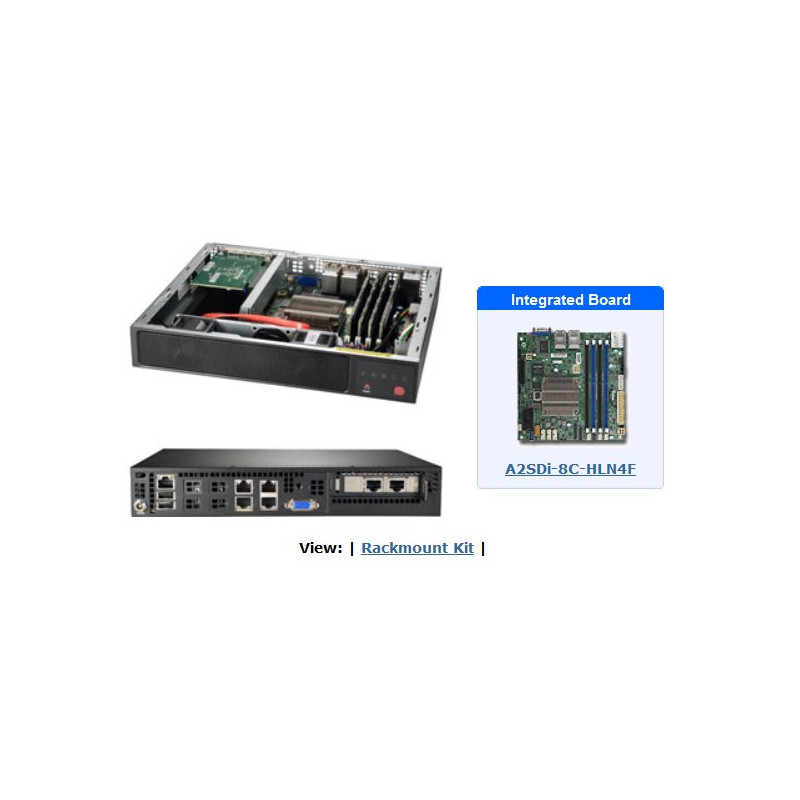

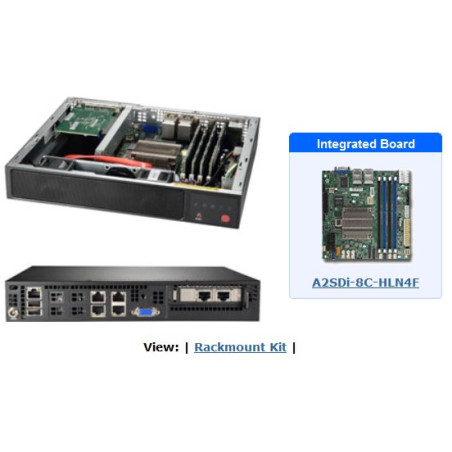

SUPERMICRO mini server Atom C3758, 4x DDR4 ECC, 84W, M.2, 4x 1Gb LAN, IPMI

Product SKUs

SYS-E300-9A-8C SuperServer E300-9A-8C (Black)



Motherboard


Super A2SDi-8C-HLN4F


Processor/Cache

CPU Intel® Atom® processor C3758
8 Cores, 2.2GHz
CPU TDP support 25W
FCBGA 1310



System Memory

Memory Capacity 4x DDR4 DIMM sockets
Supports up to 256GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors
(using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SoC controller for 4 SATA3 (6Gbps) ports

Network Controllers Quad Gigabit Ethernet LAN via Intel® C3000 SoC

Graphics Aspeed AST2400



Input / Output

SATA 2 SATA3 (6Gbps) ports

LAN 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 2.0 ports (rear)

Display 1 VGA port

DOM 1 SuperDOM (Disk on Module) power connector

TPM TPM 2.0 header







Chassis

Form Factor Mini-1U

Model CSE-E300



Dimensions

Width 10" (254mm) / 15" (381mm) - pkg.

Height 1.7" (43mm) / 10.87" (276mm) - pkg.

Depth 8.9" (226mm) / 5.59" (142mm) - pkg.

Weight Gross Weight: 7.5 lbs (3.4 kg)
Net Weight: 3.45 lbs (1.56 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button

LEDs Power LED (Hard drive activity LED)



Expansion Slots

PCI-Express 1 PCI-E 3.0 x4 AOC slot (LP)



Drive Bays / Storage

Internal Support up to 2 SSD when AOC area is not occupied. Need optional cable CBL-SAST-1034

M.2 Interface: PCI-E 3.0 x2
Form Factor: M Key 2242/2280



System Cooling

Fans 2x 40mm chassis fan



Power Supply

84W DC power adapter


System BIOS

BIOS Type AMI UEFI

BIOS Features UEFI 2.4
SMBIOS 2.7.1



Management

Software OOB
IPMI 2.0
KVM with dedicated LAN
NMI
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
