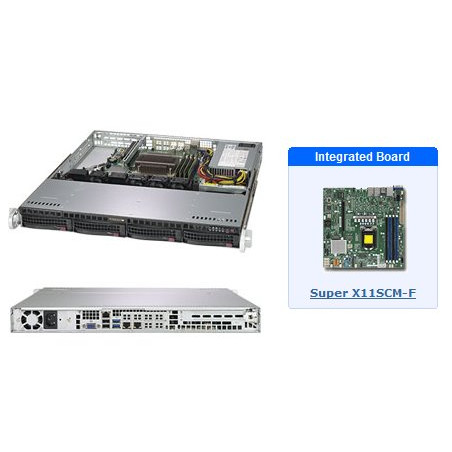

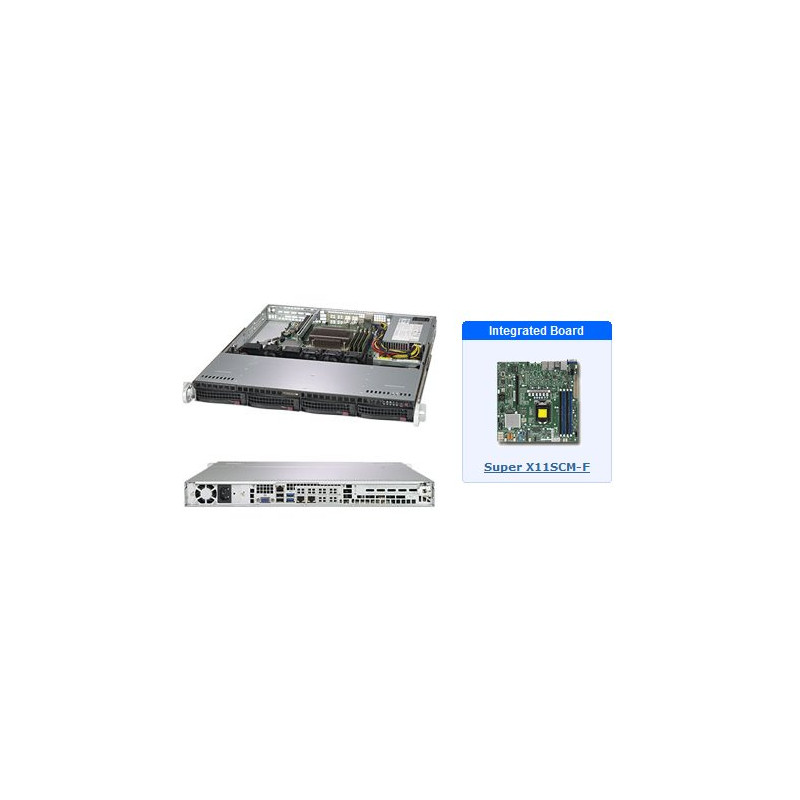

SUPERMICRO 1U server 1x LGA1151 (8/9g), iC236, 4x DDR4 ECC, 4x 3.5" HS SATA3, 350W, IPMI

Product SKUs

SYS-5019C-M SuperServer 5019C-M (Black)



Motherboard


Super X11SCM-F


Processor

CPU Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors

Cores / Cache 8 cores, 16 threads



System Memory

Memory Capacity 4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM
Up to DDR4-2666MHz

Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM

DIMM Sizes 32GB, 16GB, 8GB, 4GB



On-Board Devices

Chipset Intel® C246 chipset

SATA SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support

IPMI ASPEED AST2500

Network Controllers Dual LAN with Intel® I210-AT

Video ASPEED AST2500 BMC



Input / Output

SATA 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.1 ports (rear)
2 USB 2.0 ports (rear)

Video 1 VGA port

Serial Port / Header 1 COM port (header)

TPM 1 TPM 2.0 Header



System BIOS

BIOS Type UEFI 256Mb

BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0



Management

Software Intel® Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
Watch Dog
SuperDoctor® 5







Chassis

Form Factor 1U Rackmount

Model CSE-813MFTQC-350CB2



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.85" (503mm)

Package 8.5" (H) x 23.4" (W) x 29.7" (D)

Weight Gross Weight: 32 lbs (14.52 kg)
Net Weight: 18 lbs (8.16 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
Network activity LEDs
System Information LED



Expansion Slots

PCI-Express 1 PCI-E 3.0 x16 slot

M.2 M.2 Interface:
1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key



Drive Bays

Hot-swap 4 Hot-swap 3.5" drive bays



System Cooling

Fans 4x 40x28mm PWM fans



Power Supply

350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 5.0-2.5 Amp

+5V Max.: 15 Amp
Min.: 0.2 Amp

+5V standby Max.: 3 Amp
Min.: 0 Amp

+12V Max.: 29 Amp
Min.: 0.5 Amp

-12V Max.: 0.2 Amp
Min.: 0 Amp

+3.3V Max.: 12 Amp
Min.: 0.2 Amp

Certification Platinum Level Certified Platinum Level Certified
[ Test Report ]


PC Health Monitoring

CPU Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
