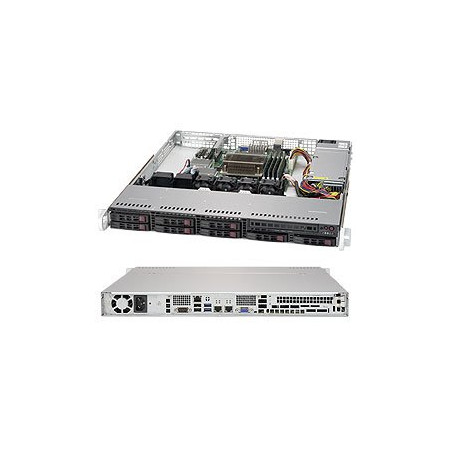

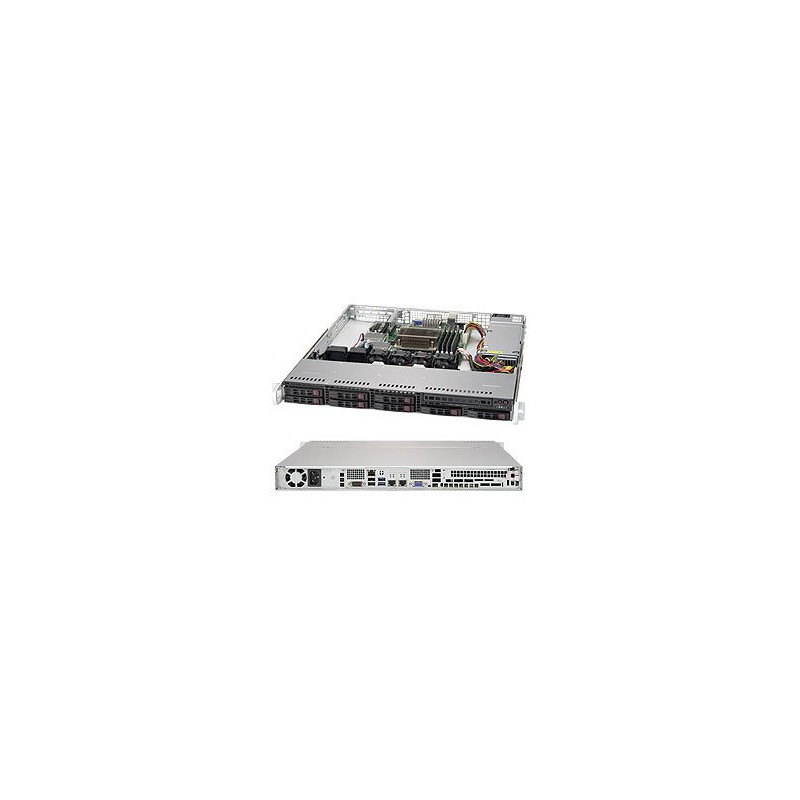

SUPERMICRO 1U server 1x LGA1151, C236, 4x DDR4 ECC, 8x 2.5" HS SAS/SATA, 340W (80+ Platinum), IPMI

Product SKUs

SYS-1019S-MC0T SuperServer 1019S-MC0T (Black)



Motherboard


Super X11SSH-CTF


Processor/Cache

CPU Single Socket H4 (LGA 1151) supports:
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen Core™ i3,
Intel® Pentium®,
Intel® Celeron® processors
CPU TDP up to 80W

Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity 4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236 chipset

SATA SATA3 (6 Gbps) via C236 controller
RAID 0, 1, 5, 10

SAS Broadcom 3008 SAS3 (12Gbps) controller;
SW RAID 0, 1, 10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual Intel® X550 10GBase-T LAN ports
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video ASPEED AST2400 BMC



Input / Output

SATA 8 SATA3 (6Gbps) ports

SAS 8 SAS3 (12Gbps) ports

LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
6 USB 2.0 ports (2 rear + 4 headers)

Video 1 VGA port

Serial Port / Header 2 COM ports (1 rear, 1 header)

SuperDOM 2 SuperDOM (Disk on Module) ports with built-in power



PC Health Monitoring

Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN Total of 6 fan headers supporting up to 6 fans
4 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED System Information LED
Suspend static indicator LED
UID/Remote UID

Other Features Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free







Chassis

Form Factor 1U Rackmount

Model CSE-113MFAC2-341CB



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.98" (507mm)

Package 8.5" (H) x 24" (W) x 29.5" (D)

Weight Gross Weight: 31 lbs (14.1 kg)
Net Weight: 18.5 lbs (8.4 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2 Network activity LEDs
System Information LED



Expansion Slots

PCI-E 1 PCI-E 3.0 x8

M.2 1x M.2 Interface: SATA and PCI-E 3.0 x4
Form Factor: 2260
Key: M-Key
Double Height Connector



Drive Bays

Hot-swap 8 Hot-swap 2.5" SAS/SATA3 drive bays



Backplane

SAS3/SATA HDD Backplane
(SAS support requires optional SAS controller)


System Cooling

Fans 4x 4cm chassis internal fan
Optional 2x 40x28mm PWM fan



Power Supply

340W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp

+5V Max: 16 Amp / Min: 0.5A

+12V Max: 28 Amp / Min: 0.5A

+3.3V Max: 15 Amp

+5V standby Max: 3 Amp

-12V Max: 0.5 Amp

Certification Platinum Level Certified Platinum Level



System BIOS

BIOS Type 8MB SPI Flash EEPROM with AMI BIOS



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
