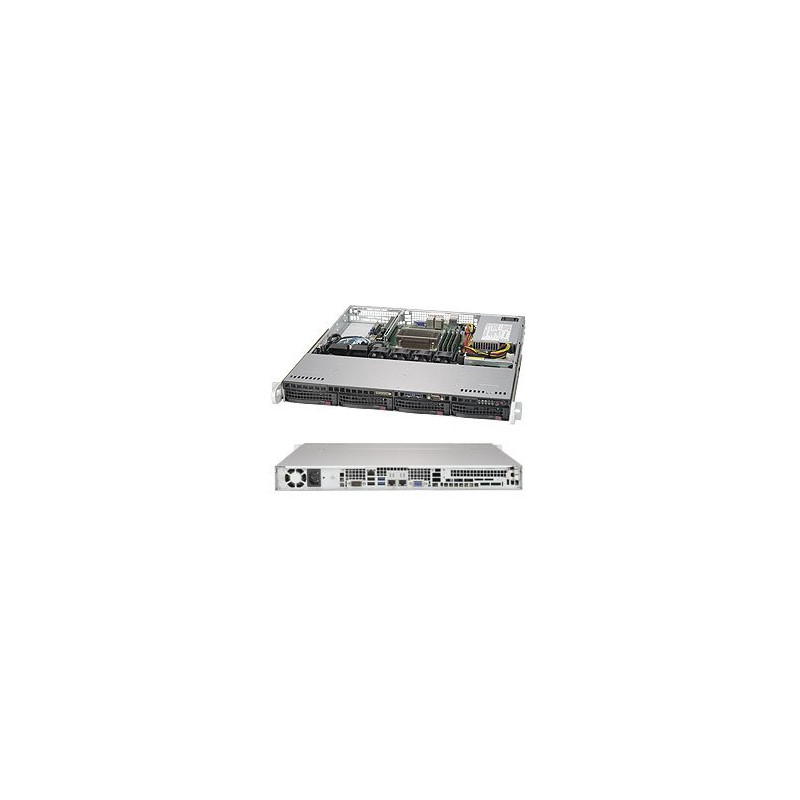

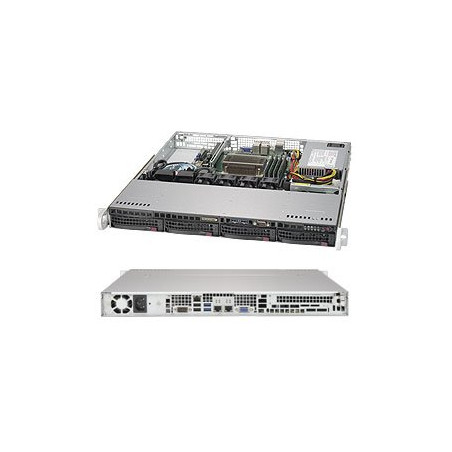

SUPERMICRO 1U server 1x LGA1151, iC236, 4x DDR4 ECC, 4x 3.5" HS SATA3, 350W, IPMI

Product SKUs

SYS-5019S-M SuperServer 5019S-M (Black)



Motherboard


Super X11SSH-F


Processor/Cache

CPU Single Socket H4 (LGA 1151) supports:
Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3

CPU TDP up to 80W

Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity 4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236 chipset

SATA SATA3 (6Gbps) via C236 controller
RAID 0, 1, 5, 10 support

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual Intel® I210-AT Gigabit Ethernet LAN ports
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video ASPEED AST2400 BMC



Input / Output

SATA 8 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
6 USB 2.0 ports (2 rear + 4 headers)

Video 1 VGA port

Serial Port / Header 2 COM ports (1 rear, 1 front)

SuperDOM 2 SuperDOM (Disk on Module) ports with built-in power



PC Health Monitoring

Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN Total of 5 fan headers supporting up to 5 fans
4 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED System Information LED
Suspend static indicator LED
UID/Remote UID

Other Features Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free







Chassis

Form Factor 1U Rackmount

Model CSE-813MFTQC-350CB



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.85" (503mm)

Package 8.5" (H) x 24" (W) x 29.5" (D)

Weight Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2 Network activity LEDs
System Information LED



Expansion Slots

PCI-Express 1 PCI-E 3.0 x8 (in x16) AOC slot

M.2 1x M.2 Interface: PCI-E 3.0 x2
Form Factor: 2280
Key: M-Key
Double Height Connector



Drive Bays

Hot-swap 4 Hot-swap 3.5" SATA3 drive bays



Peripheral Drives

Optional 2 Fixed 2.5" internal drives



Backplane

SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)


System Cooling

Fans 4x 40x28mm 4-pin PWM Cooling Fans
Optional 1x 40x28mm PWM fan



Power Supply

350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 5.0-2.5 Amp

+5V Max.: 15 Amp
Min.: 0.2 Amp

+5V standby Max.: 3 Amp
Min.: 0 Amp

+12V Max.: 29 Amp
Min.: 0.5 Amp

-12V Max.: 0.2 Amp
Min.: 0 Amp

+3.3V Max.: 12 Amp
Min.: 0.2 Amp

Certification Platinum Level Certified Platinum Level Certified
[ Test Report ]


System BIOS

BIOS Type 8MB SPI Flash EEPROM with AMI BIOS



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
