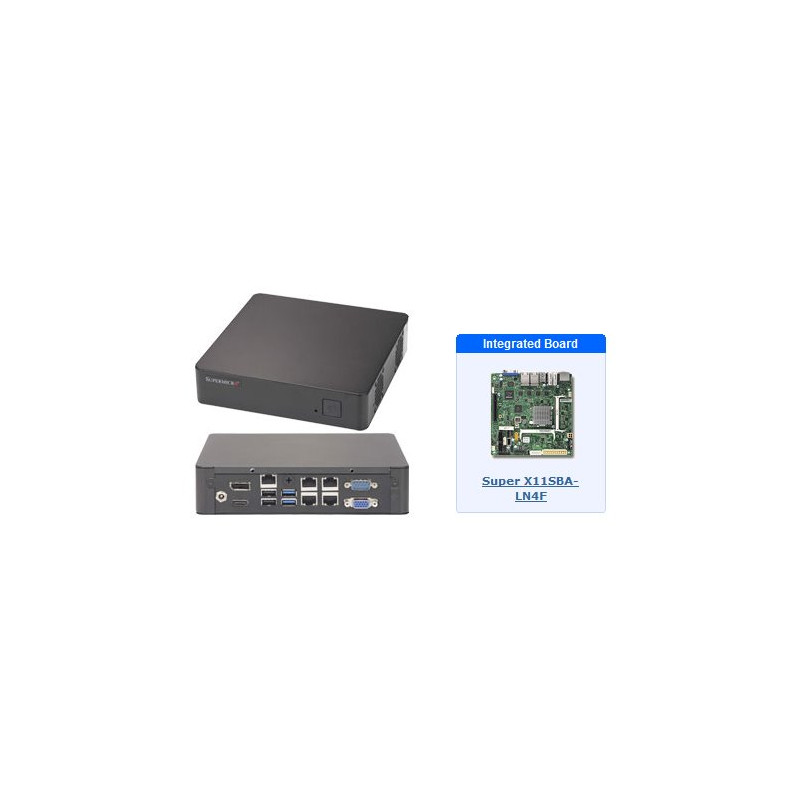

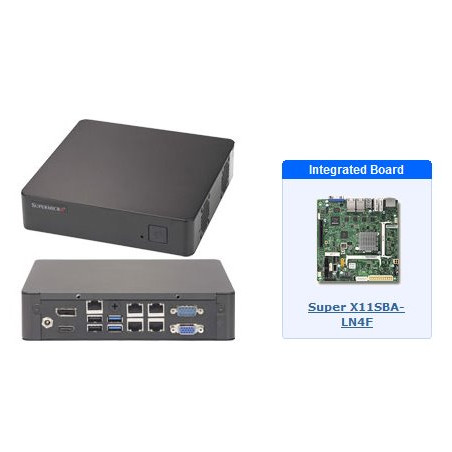

SUPERMICRO mini server Pentium N3700 (4C), 2x DDR3, mSATA, 4x 1Gb LAN, HDMI/DP/VGA, IPMI, 60W PSU

Product SKUs

SYS-E200-9B SuperServer E200-9B (Black)



Motherboard


Super X11SBA-LN4F


Processor/Cache

CPU Socket FCBGA1170
Intel® Pentium® Processor N3710
CPU TDP 6W
1.6-2.4GHz, 2MB



System Memory

Memory Capacity 2x 204-pin SO-DIMM slot
Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)

Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes 4GB, 2GB

Memory Voltage 1.35 V



On-Board Devices

Chipset Intel® N3710 System on Chip

SATA SATA 3.0 (6Gbps) from Intel® SoC

Network Controllers Quad Gigabit Ethernet LAN ports with Intel® I210-AT
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics Aspeed AST2400 BMC



Input / Output

Serial ATA 2x SATA3 (6Gbps) ports

LAN 4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

USB 2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)

Display 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays)

DOM 1x SuperDOM (Disk on Module) port with built-in power

Others TPM 1.2 header







Chassis

Form Factor Mini-ITX

Model CSE-101S



Dimensions

Width 7.68" (195mm) / 15" (381mm) - pkg.

Height 1.75" (44.5mm) / 10.87" (276mm) - pkg.

Depth 7.68" (195mm) / 5.59" (142mm) - pkg.

Weight Gross Weight: 5.5 lbs (2.49 kg)
Net Weight: 2.45 lbs (1.11 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button

LEDs Power LED (Hard drive activity LED)



Expansion Slots

Mini-PCIe 1x mini-PCIe slot with mSATA support



Drive Bays

Internal 1x 2.5" internal drive tray



System Cooling

Fans 1x 4cm high performance PWM fan; support up to 2 chassis fans



Power Supply

60W DC Power Adapter


System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features Plug and Play (PnP)
ACPI 5.0
UEFI 2.3.1
SMBIOS 2.7
DMI 2.3
USB Keyboard support
RTC (Real time Clock) Wakeup
3TB HDD Support



Management

Software IPMI 2.0 with KVM support
NMI
SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / ACPM Power Management
Main Switch Override Mechanism
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery

Fan Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
10% to 85% (non-condensing)
Non-operating Relative Humidity:
10% to 95% (non-condensing)
