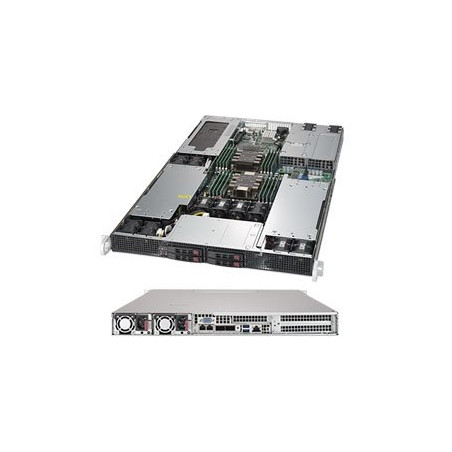

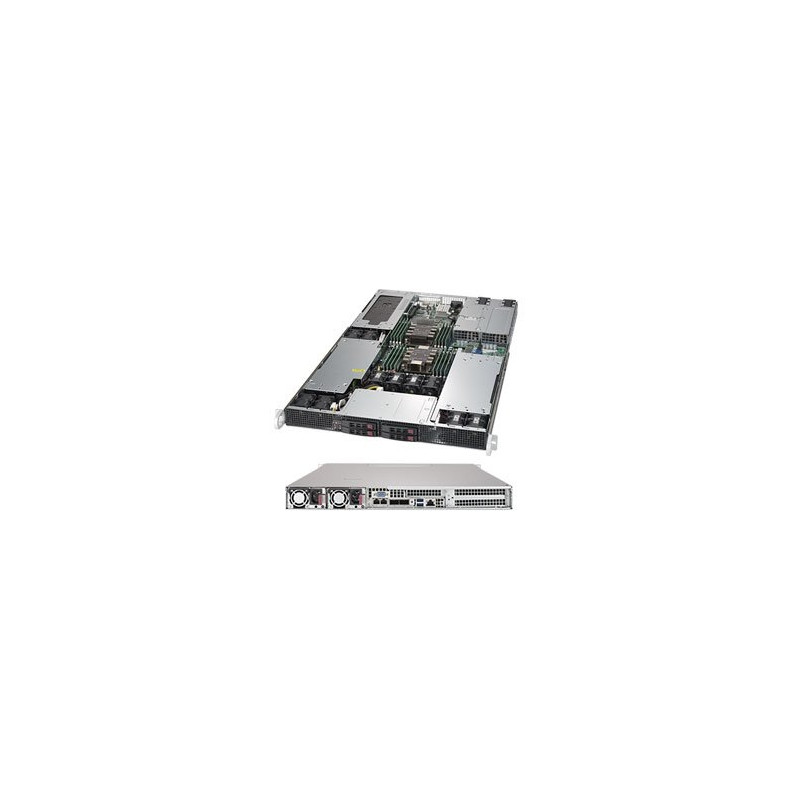

SUPERMICRO 1U GPU server 2x LGA3647, iC621 , 16x DDR4 ECC R, 4x SATA3 HS (2,5"), 2x1600W, SIOM, IPMI, 3xGPU

Product SKUs

SYS-1029GP-TR SuperServer 1029GP-TR (Black)



Motherboard


Super X11DPG-SN


Processor

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-165W*

Cores Up to 28 Cores

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU Support Please refer to: Compatible GPU list



System Memory

Memory Capacity 16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C621 chipset

SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics ASPEED AST2500 BMC



Input / Output

LAN 1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (rear)

Video 1 VGA port

Serial Header 1 Fast UART 16550 header



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 1U Rackmount

Model CSE-118GH-R1K66B2



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 30.6" (777mm)

Weight Net Weight: 45 lbs (15.9 kg)
Gross Weight: 58 lbs (21.8 kg)

Available Color Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED / UID LED



Expansion Slots

PCI-Express 4 PCI-E 3.0 x16 (FHFL) slots
1 PCI-E 3.0 x8 (in x16, LP) slot



Drive Bays

Hot-swap 4 Hot-swap 2.5" drive bays




System Cooling

Fans 10 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control



Power Supply

1600W 1U Redundant Power Supplies with PMBus
Total Output Power 1000W: 100 – 127Vac
1600W: 200 – 240Vac

Dimension
(W x H x L) 73.5 x 40 x 265 mm

Input 100-127Vac / 12.9A Max / 50-60Hz
200-240Vac / 9.5A Max / 50-60Hz

+12V Max: 82A / Min: 0.1A (100-127Vac)
Max: 132A / Min: 0.1A (200-240Vac)

12V SB Max: 2A / Min: 0.2A

Output Type 25 Pairs Gold Finger Connector

Certification Platinum Level Certified94%+ Platinum Level
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
