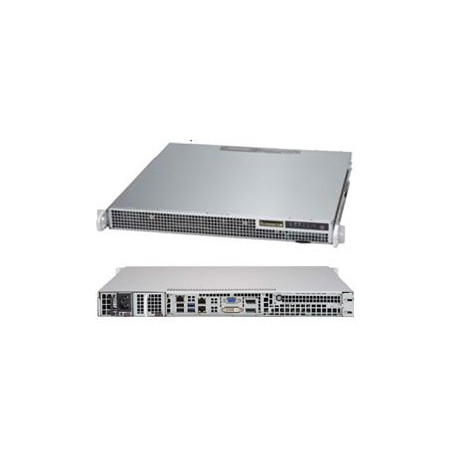

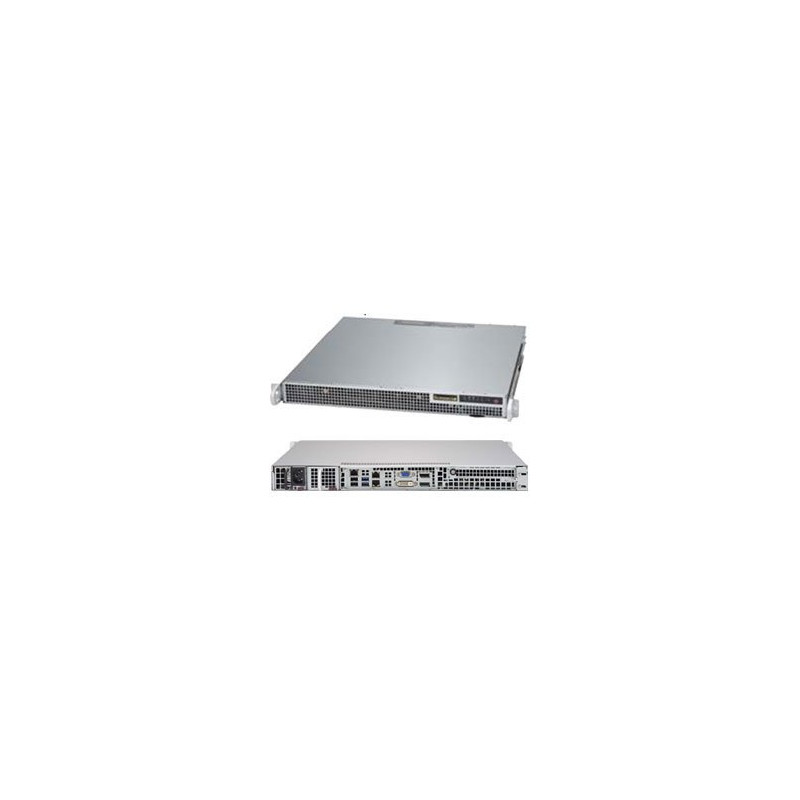

SUPERMICRO 1U server 1x LGA1151, iQ170 (i7), 4x DDR4 NonECC, 2x 2.5" Fix SATA, 400W (80+ Platinum), IPMI

Product SKUs

SYS-1019S-M2 SuperServer 1019S-M2 (Black)



Motherboard


Super X11SSZ-QF


Processor/Cache
CPU Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP
Single Socket H4 (LGA 1151)

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity 4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 Non-ECC UDIMM

Memory Type 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 16GB, 8GB, 4GB

Memory Voltage 1.2 V



On-Board Devices

Chipset Intel® Q170 Express chipset

SATA SATA3 (6Gbps) via Intel® Q170 Express controller
RAID 0, 1 support

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio RealTek ALC 888S High Definition Audio

Video ASPEED AST2400 BMC and Intel HD Graphics 530



Input / Output

SATA 2 SATA3 (6Gbps) ports; RAID 0, 1

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (2 rear)
3 USB 2.0 ports (2 rear + 1 Type A)

Video/Display 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM

Serial Port / Header 2 serial headers

SuperDOM 1 SuperDOM (Disk on Module) port with built-in power



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup



Management

Software AMT
IPMI 2.0 with KVM support
NMI
vPro
Watch Dog
SuperDoctor® 5

Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery







Chassis

Form Factor 1U Rackmount

Model CSE-514-407C-1P



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 16.9" (429mm)

Package 8" (H) x 24" (W) x 24" (D)

Weight Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2 Network activity LEDs
System Information LED



Expansion Slots

PCI-Express 1 PCI-E 3.0 x16 (in x16 slot)



Drive Bays

Internal 2 Fixed 2.5" SATA3 drive bays



System Cooling

Fans 4x 40x56mm PWM fan; 2x fans for AOC cooling



Power Supply
400W Platinum level power supply with PMBus and I2C
AC Input 400W: 100-240 V, 50-60 Hz

DC Output
+5V standby 3 Amp

DC Output
+12V 33 Amp

Certification Platinum Level Certified Platinum Level



PC Health Monitoring

Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN Total of 6 fan headers supporting up to 6 fans
6 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED System Information LED
Suspend static indicator LED
UID/Remote UID

Other Features Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
