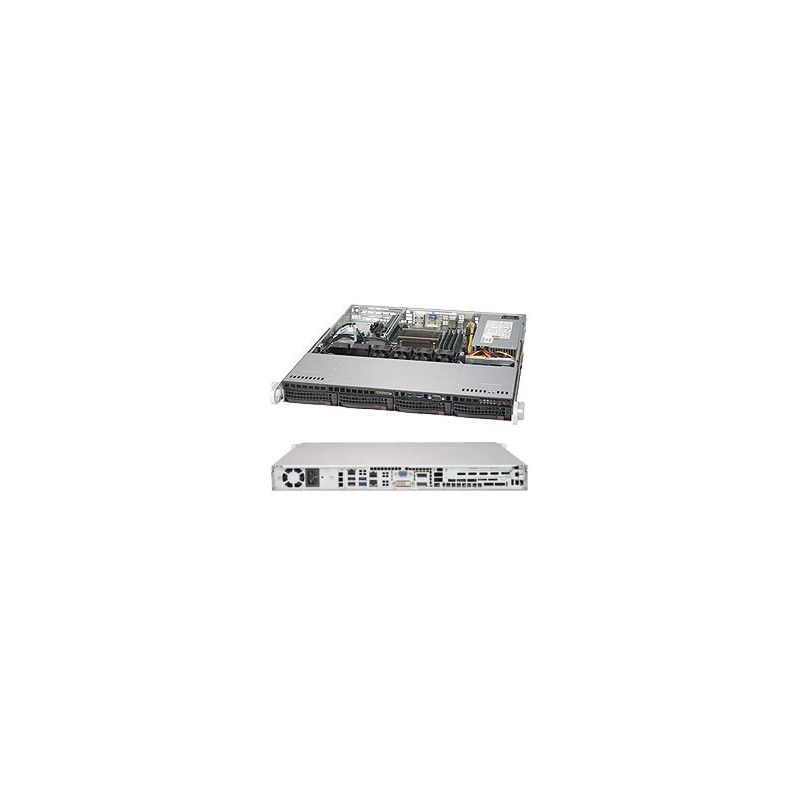

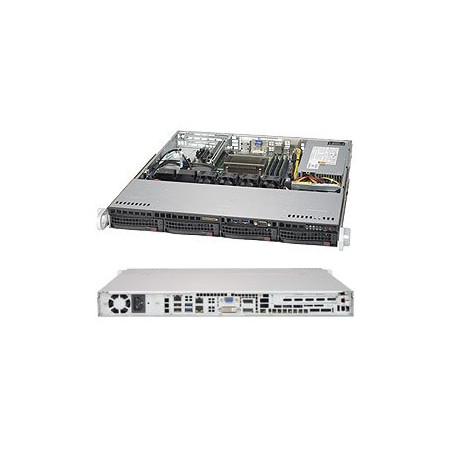

SUPERMICRO 1U server 1x LGA1151, iQ170 (i7), 4x DDR4, 4x 3.5" HS SATA3, 350W, IPMI

Product SKUs

SYS-5019S-M2 SuperServer 5019S-M2 (Black)



Motherboard


Super X11SSZ-F


Processor/Cache

CPU Single Socket H4 (LGA 1151) supports:
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen Core™ i7/i5/i3,
Intel® Pentium®,
Intel® Celeron® processors
CPU TDP up to 80W

Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity 4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC/Non-ECC UDIMM

Memory Type 2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 16GB, 8GB, 4GB

Memory Voltage 1.2 V



On-Board Devices

Chipset Intel® C236 chipset

SATA 4x SATA3 (6Gbps) via Intel® C236 controller
RAID 0, 1, 5, 10 support

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio RealTek ALC 888S High Definition Audio

Video ASPEED AST2400 BMC



Input / Output

SATA 4 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 3.0 ports (2 rear + 2 headers)
9 USB 2.0 ports (2 rear + 6 headers + 1 Type A)

Audio Front panel header

Video/Display 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM

Serial Port / Header 2 COM ports (1 front, 1 header)



PC Health Monitoring

Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN Total of 6 fan headers supporting up to 6 fans
4 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED System Information LED
Suspend static indicator LED
UID/Remote UID

Other Features Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free







Chassis

Form Factor 1U Rackmount

Model CSE-813MFTQC-350CB



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.85" (503mm)

Package 8.5" (H) x 24" (W) x 29.7" (D)

Weight Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2 Network activity LEDs
System Information LED



Expansion Slots

PCI-Express 1 PCI-E 3.0 x16 slot



Drive Bays

Hot-swap 4 Hot-swap 3.5" SATA3 drive bays



Backplane

SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)


System Cooling

Fans 4x 4cm internal fans



Power Supply

350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 5.0-2.5 Amp

+5V Max.: 15 Amp
Min.: 0.2 Amp

+5V standby Max.: 3 Amp
Min.: 0 Amp

+12V Max.: 29 Amp
Min.: 0.5 Amp

-12V Max.: 0.2 Amp
Min.: 0 Amp

+3.3V Max.: 12 Amp
Min.: 0.2 Amp

Certification Platinum Level Certified Platinum Level Certified
[ Test Report ]


System BIOS

BIOS Type 8MB SPI Flash EEPROM with AMI BIOS



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
