| Product SKUs |

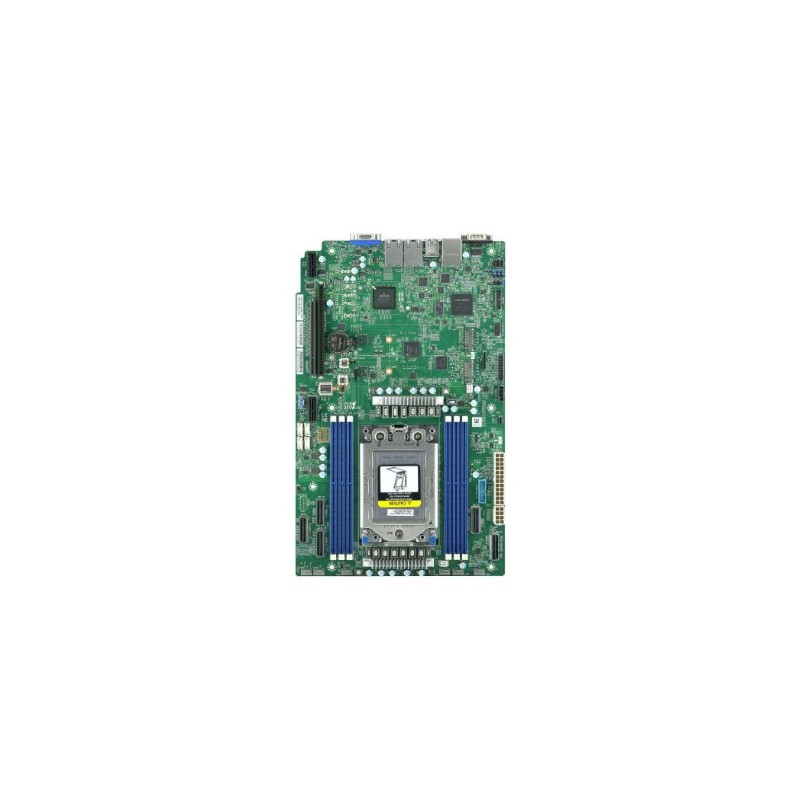

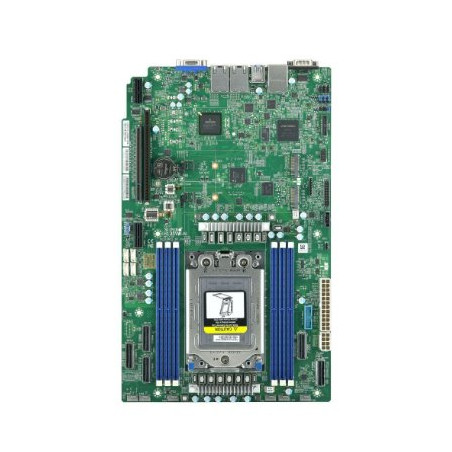

| MBD-H13SVW-N |
|
| Physical Stats |
| Form Factor |
Proprietary WIO |
| Dimension |
8.15" x 13.05" (20.7cm x 33.15cm) |
| Processor |
| CPU |
AMD EPYC™ 8004 series Processors |
| Single Socket SP6 supported, CPU TDP supports Up to 225W TDP |
|
| Core |
Up to 64 cores, 128 threads |
| System Memory |
| Memory Capacity |
6 DIMM slots |
| Up to 576GB ECC Registered RDIMM, DDR5-4800MHz |
|
| Memory Type |
4800 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4800MHz (1DPC) |
| DIMM Sizes |
8GB, 16GB, 32GB |
| Memory Voltage |
1.1V |
| Error Detection |
Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
|
| On-Board Devices |
| Chipset |
System on Chip |
| Network Controllers |
Dual LAN with Broadcom BCM5720 1GBase-T |
| Single LAN with Realtek RTL8211F PHY |
|
| Input / Output |
| USB |
6 USB 3.0 port(s) (4 USB; 2 via header) |
| Video Output |
1 VGA port(s) |
| TPM |
1 TPM Header |
| Others |
3 MCIO (PCIe 5.0 x8) Port(s) |
| 2 MCIO (PCIe 5.0 x8/SATA3) Port(s) |
|
Expansion Slots
|
| PCIe |
1 PCIe 5.0 x16 Right Riser Slot, |
| 1 PCIe 5.0 x32 Left Riser Slot |
|
| M.2 |
M.2 Interface: 2 PCIe 3.0 x4 |
| Form Factor: 2280/22110 |
|
| Key: M-Key |
|
| System BIOS |
| BIOS Type |
AMI 32MB SPI Flash EEPROM |
| BIOS Features |
ACPI 6.4 |
| SMBIOS 3.5 or later |
|
| UEFI 2.8 |
|
| Plug and Play (PnP) |
|
| USB Keyboard support |
|
| Security |
| Hardware |
Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage |
VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| LED |
UID/Remote UID |
| BMC/IPMI Heartbeat LED |
|
| Other Features |
RoT |
| FAN |
6x 4-pin fan headers (up to 6 fans) |
| Operating Environment |
| Operating Temperature Range |
10°C - 35°C (°F - °F) |
| Non-Operating Temperature Range |
-40°C - 70°C (°F - °F) |
| Operating Relative Humidity Range |
8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range |
5% - 95% (non-condensing) |
| |
|
| Optional Parts |
|
|
| |
|
Part Number |
| TPM security module (optional, not included) |
|
AOM-TPM-9670V |
| |
|
|
Standard Parts (Parts Included)
|
|
|
| Motherboard / Chassis |
MBD-H13SVW-NT |
Super H13SVW-NT Motherboard |
| Motherboard / Chassis |
CSE-815BTS-R000WNP |
1U Chassis |
| Backplane |
BPN-NVME5-LA15-S4 |
1U 4-Slot 3.5 |
| Cable |
CBL-CDAT-0728 |
4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 |
| Cable |
CBL-MCIO-1270OT4S2-85 |
MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS |
| Cable |
CBL-0335L |
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF |
| Cable |
CBL-PWCD-0160-IS |
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Fan |
FAN-0163L4 |
40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
| Front Panel |
MCP-280-00033-0N |
Universal Thermal sensor kit with 80cm I2C cable |
| Front Panel |
FPB-FP815U |
815 UIO front control board (U) |
| Power Supply |
PWS-861A-1R |
1U redundant 800/860W Titanium AC power supply 54.5x40x322mm |
| Power Supply |
MCP-250-81502-0N |
SC815 Redundant Power Distributor Cover |
| Riser Card |
RSC-W-66G5 |
1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R |
| Riser Card |
RSC-WR-6G5H |
1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS |
| Software |
SFT-OOB-LIC |
License key for enabling OOB BIOS management |
| Heatsink / Retention |
SNK-P0062P-1 |
1U Passive CPU Heat Sink for AMD Socket SP6 Processors |
| *Power Distributor |
PDB-PT116-SL8824 |
Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths |
| *Fan Holder |
CSE-PT0135 |
FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| *Fan Holder |
MCP-340-00035-0B |
Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| *Peripheral Drive |
CSE-PT93L-B |
Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| *Drive Tray(s) |
MCP-220-00075-0B |
Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window |
MCP-240-00202-0N |
1U WIO rear window to support top-load riser bracket for SC815B,SC116B |
| *Rail Set |
MCP-290-00016-0N |
1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N |
| *Rail Set |
MCP-290-00054-0N |
Rail set, quick/quick, optional for 1U 17.2 |
| *Air Shroud |
MCP-310-81506-0B |
Air block for 1U WIO SC815B with X13SEW |
| 2.5" to 3.5" Toolless Converter Tray |
MCP-220-00118-0B • |
Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
| GPU Kit |
CBL-PWEX-1240 |
GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM |
| GPU Kit |
CBL-0424L • |
GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm |
| GPU Kit |
MCP-310-81504-0B |
1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4 |
| NVMe Cable (Drive Bay 0-1) |
CBL-MCIO-1235M5Y • |
MCIO (x8 to 2 x4) STR,25CM,85OHM |
| NVMe Cable (Drive Bay 2-3) |
CBL-MCIO-1225M5Y • |
MCIO (x8 to 2 x4) STR,25CM,85OHM |
| Software |
SFT-DCMS-Single |
DataCenter Management Package (per node license)
|
