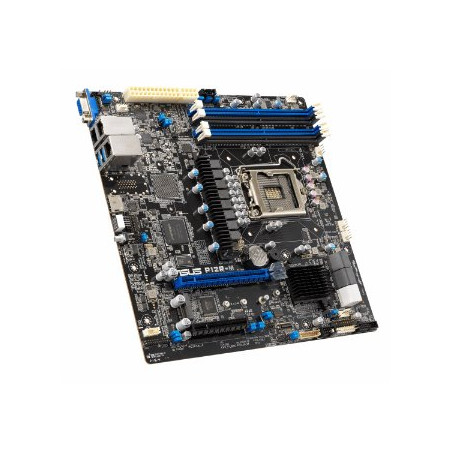

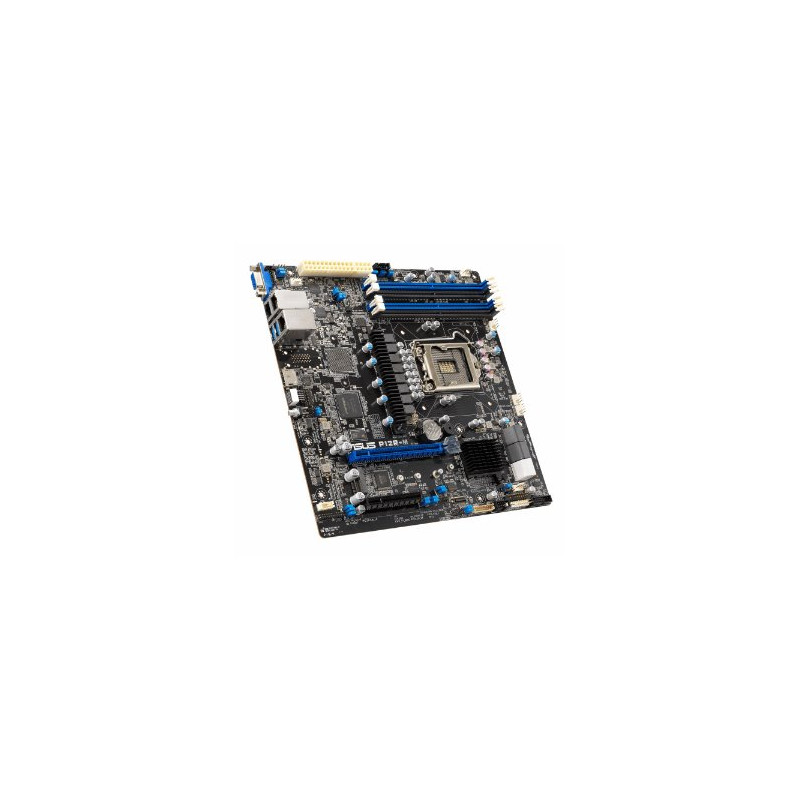

ASUS P12R-M/LGA-1200,C252,MICROATX, 4*DIMM, 1*PCIe x8 slot, 1*PCIe 16 slot, 6*SATA ports, 1*M2, 2 x Intel® I210AT + 1 x Mgmt LAN

Processor / System Bus

1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic

Intel® C252 Chipset
Memory

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information
Expansion Slots

Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
Form Factor

U ATX (9.6"x9.6", 244mm x 244mm)
Storage

Storage Controller :
6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking

2 x Intel® I210AT + 1 x Mgmt LAN
Graphic

Aspeed AST2600 with 64MB VRAM
On Board I/O

1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports

2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LAN
Management Solution

ASUS Control Center Enterprise (Optional)
Optional ASMB10-iKVM for KVM-over-Internet
Weight

Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG

Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG

Environment

Operation temperature: 10? ~ 50?*
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)

*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

Accessories

Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring

CPU Temperature
Fan RPM
Note

*1.VGA from BMC
*2.HDMI (useable only with iGPU)
