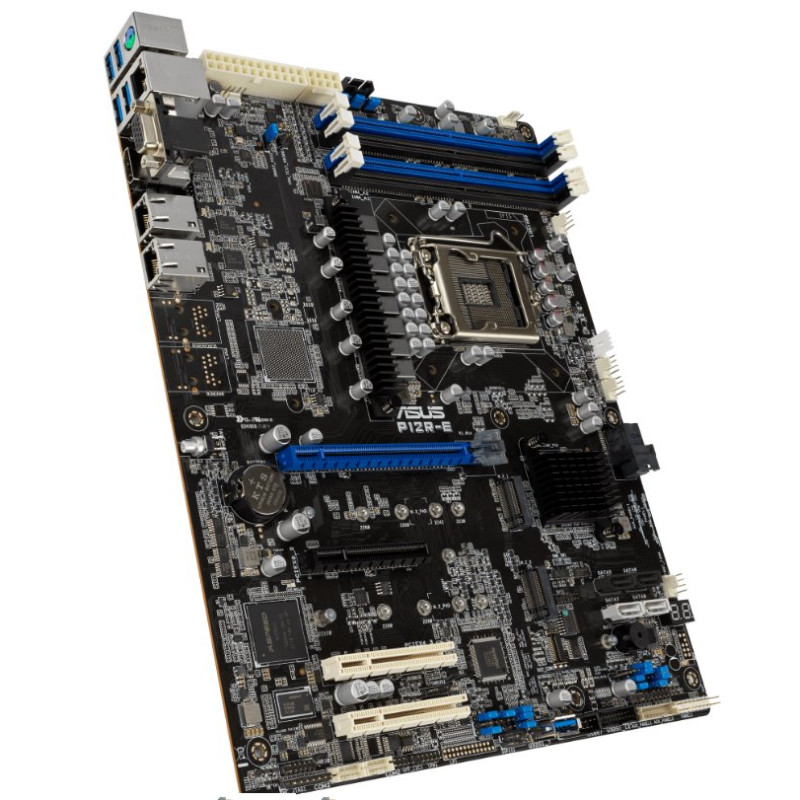

ASUS P12R-E/LGA-1200, C256, ATX, 4DIMM, 1*PCIe x16 slot, 3*PCIe x8 slots, 2*M2, 2 x Intel® I210AT + 1 x Mgmt LAN

Processor / System Bus

1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic

Intel® C256 Chipset
Memory

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
Expansion Slots

Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
Form Factor

ATX (12"x9.6", 305mm x 244mm)
ASUS Features

FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage

Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking

2 x Intel® I210AT + 1 x Mgmt LAN
Graphic

Aspeed AST2600 with 64MB VRAM *2
On Board I/O

1 x VGA Header*2
1 x HDMI*3
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
Back I/O Ports

2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Management Solution

ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet(Optional)
Weight

Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment

Operation temperature: 10? ~ 50?*
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)

*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories

Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
4 x SATA 6G cables
1 x Plate for LGA1200
Bulk Pack (10-in-1)
1 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring

CPU Temperature
Fan RPM
Note

*1.Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
*2.VGA from BMC
*3.HDMI (useable only with iGPU)
