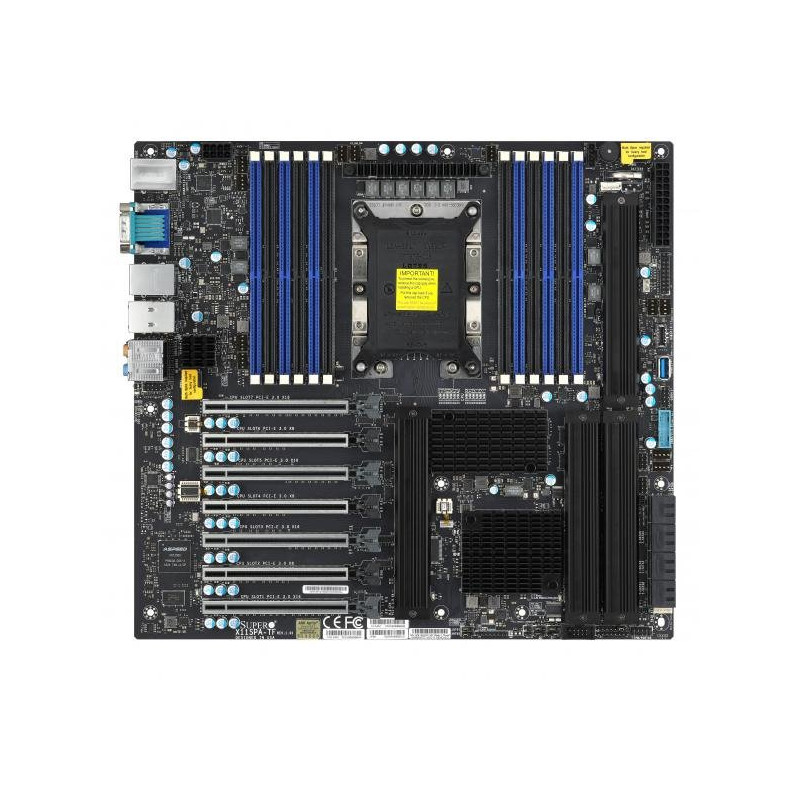

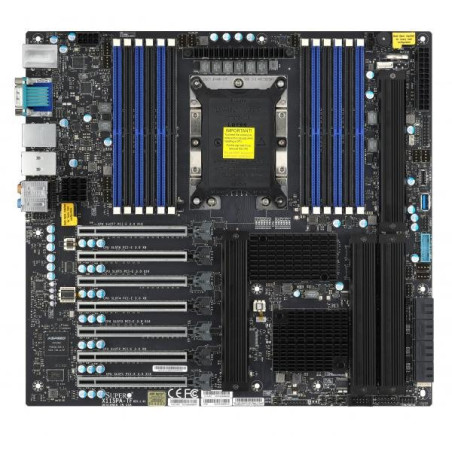

SUPERMICRO WS MB 1xLGA3647, iC621, 12x DDR4 ECC, 8xSATA3, 4xM.2, PCI-E 3.0/4,3(x16,x8),2x 10Gb LAN,IPMI

Product SKUs

MBD-X11SPA-TF X11SPA-TF



Physical Stats

Form Factor E-ATX

Dimensions 12" x 13" (30.48cm x 33.02cm)



Processor/Cache

CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP

Cores / Cache Up to 28 cores



System Memory

Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Up to 3TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz, in 12 DIMM slots

Memory Type N/A

DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® C621

SATA Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia® AQC107 10G Ethernet Controller
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)

Audio ALC 888S HD Audio

Graphics ASPEED AST2500 BMC
VGA connector is dedicated for IPMI.



Input / Output

LAN 1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 2.0 ports (2 via headers)
6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)

Video Output 1 VGA port,
VGA connector is dedicated for IPMI.

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 4 PCI-E 3.0 x16,
3 PCI-E 3.0 x8 (in x16 slot),
PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)


M.2 M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110
Key: M-Key
M.2 support RAID 0,1(up to RAID 5, 10), VROC key is required for Raid.



System BIOS

BIOS Type 256Mb SPI Flash with AMI BIOS

BIOS Features ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup



Management

Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog

System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor 5

Power Configurations ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
CPU thermal trip support for processor protection



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED CPU / System Overheat LED, Suspend static indicator LED

Other Features Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard
X11SPA series IO Shield MCP-260-00142-0N 1
SATA cable CBL-0044L 2
CPU-GPU power connector adapter CBL-PWEX-0663 1
M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard
X11SPA series IO Shield MCP-260-00142-0N 1
SATA cable CBL-0044L 6
CPU-GPU power connector adapter CBL-PWEX-0663 1
X11SPA-TF/X11SPA-T Quick Reference Guide MNL-2173-QRG 1
M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard



Optional Parts List
Name Part Number Qty Description
4U CPU Heat Sink SNK-P0071APS4 1 4U Active CPU Heat Sink for SYS-5049A-T.
TPM security module (optional, not included) AOM-TPM-9671V 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9670V 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for X11SPA-TF



Chassis (Optimized for X11SPA-TF)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC743AC-1200B-SQ
SC743AC-668B
SC743TQ-903B
SC745BAC-R1K28B2
SC745BTQ-R1K28B-SQ
SC842XTQC-R804B
SC842TQC-865B
SC842TQC-668B
SC747BTQ-R1K62B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SPA-TF)

Server Name

SYS-5049A-T
