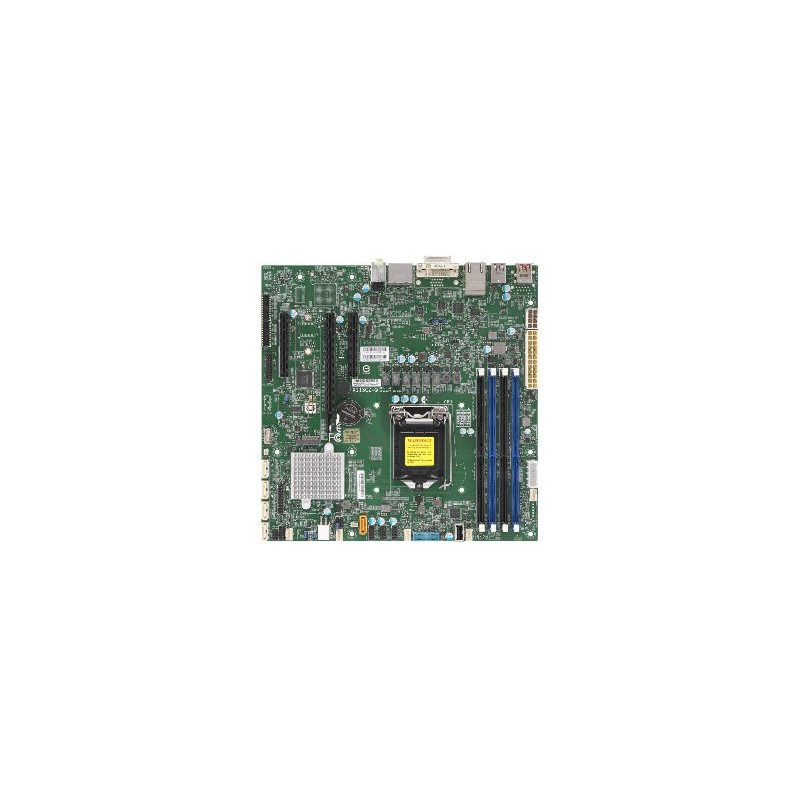

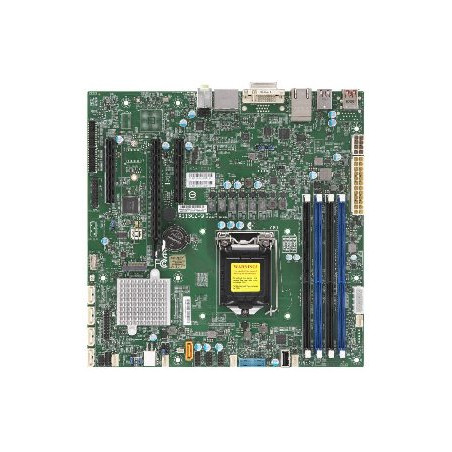

SUPERMICRO MB 1xLGA1151 (Core 8th/ 95W in 1U), Q370,4xDDR4,6xSATA3,M.2,4xPCIe 3.0 (x16, x1,2 x4),2xDP,DVI,Audio,2x LAN

Product SKUs

MBD-X11SCZ-Q X11SCZ-Q



Physical Stats

Form Factor uATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP



System Memory

Memory Capacity Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® Q370

SATA Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Audio ALC 888S HD Audio

Graphics Intel® HD Graphics
3 Independent Displays



Input / Output

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 7 USB 2.0 ports (6 via headers, 1 Type A)
2 USB 3.1 Gen1 ports(2 via headers)
6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 via headers)

Video Output 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays

Serial Port / Header 4 COM Ports (4 headers)


TPM TPM Header & Chip both







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup



Management

Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog

Power Configurations +12V DC Power Input
ATX Power connector
ACPI Power Management



PC Health Monitoring

Voltage +1.35V, +1.5V, +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 5 -fan status

FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone

Temperature Thermal Control for 5 Fan Connectors

LED N/A

Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard
QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket



Optional Parts List
Name Part Number Qty Description
Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
1U I/O Shield MCP-260-00127-0N -- 1U I/O Shield for X11SCZ with EMI Gasket in SC813 Chassis
1U I/O Shield MCP-260-00128-0B -- 1U I/O Shield for X11SCZ with EMI Gasket in SC510 Chassis
USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket
