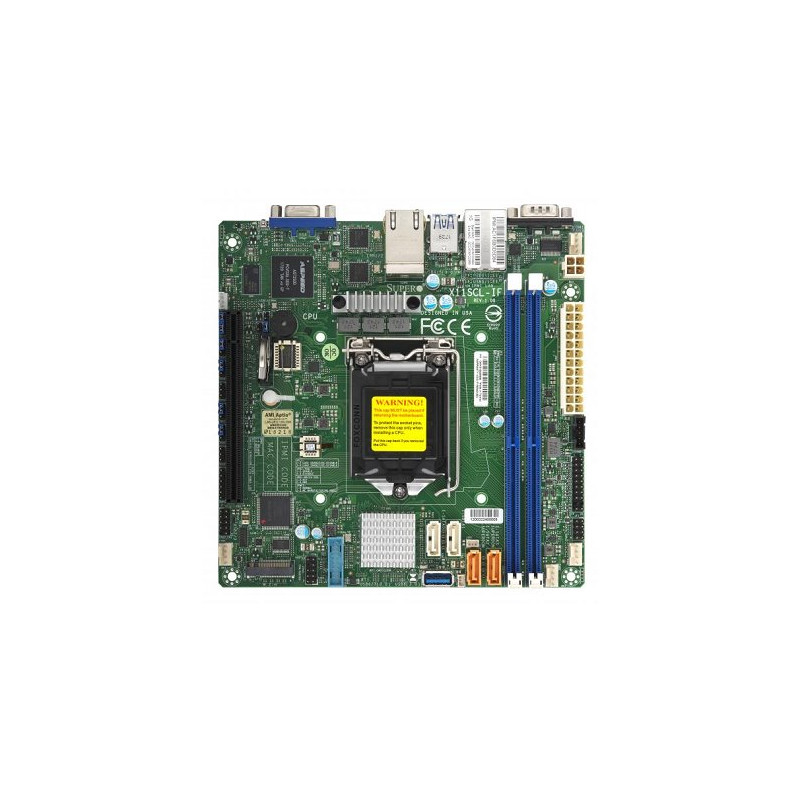

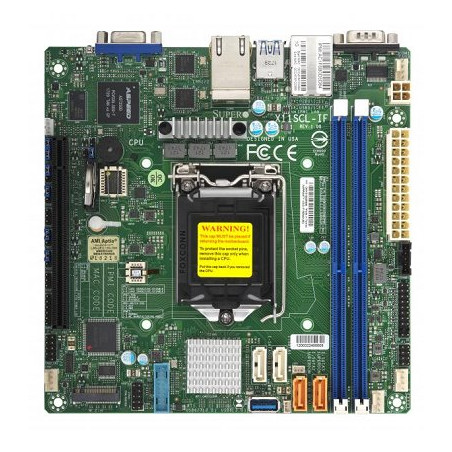

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C242, 2xDDR4, 4xSATA3, M.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, mini-ITX
  • SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C242, 2xDDR4, 4xSATA3, M.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, mini-ITX

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C242, 2xDDR4, 4xSATA3, M.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, mini-ITX

SRMBDX11SCLIFO
Supermicro
SUPERMICRO MB 1xLGA1151 (i7), Q170,DDR4,6xSATA3,PCIe 3.0 (1 x16, 2 x4, 1 x1),1x M.2,HDMI,DP,DVI,Audio
1 219,05 zł
Brutto
1 007,48 zł Netto
i
Kwota zastosowanego podatku VAT wynosi 21% dla kraju Czechy.
Aby zamówić
Ilość
Brak w magazynie



Warunki handlowe



Metody dostawy i płatności



Warunki reklamacji

help_outlineZapytanie o produkt drogą e-mailową
Opis

Product SKUs

MBD-X11SCL-IF X11SCL-IF



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

Cores / Cache 6 cores, 12 threads

Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors



System Memory

Memory Capacity Up to 64GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots

Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C242

SATA Intel® C242 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with 1GbE with Intel® I210

Graphics ASPEED AST2500 BMC



Input / Output

USB 4 USB 2.0 ports (2 rear + 2 via headers)
7 USB 3.2 Gen2 ports (2 rears (2 Rear Type A + 2 via headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 rear)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16 (in x16 slot)

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
Double Height Connector



System BIOS

BIOS Type UEFI 256Mb

BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0



Management

Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 4 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT

Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment

LED CPU / System Overheat LED, UID/Remote UID

Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-IF 1 X11SCL-IF Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-IF 1 X11SCL-IF Motherboard
QRG MNL-2088-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSL-F with EMI Gasket



Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor



Chassis (Optimized for X11SCL-IF)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
1U Heatsink:SNK-P0049A4
2U Heatsink:SNK-P0046A4
SC504-203B
SC505-203B
1U Heatsink:SNK-P0049A4
2U Heatsink:SNK-P0046A4
1U Heatsink:SNK-P0049A4
2U Heatsink:SNK-P0046A4
SC721TQ-350B2



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SCL-IF)

Server Name

SYS-5019C-L
SYS-5019C-FL
SYS-5029C-T
