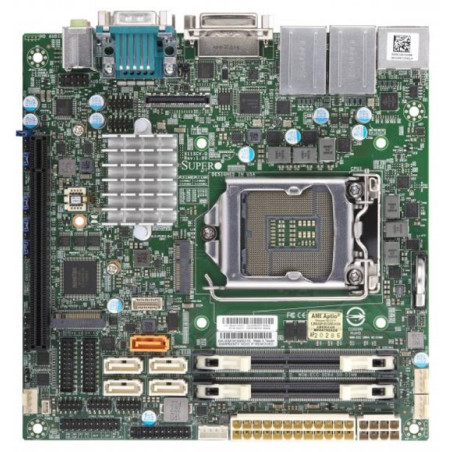

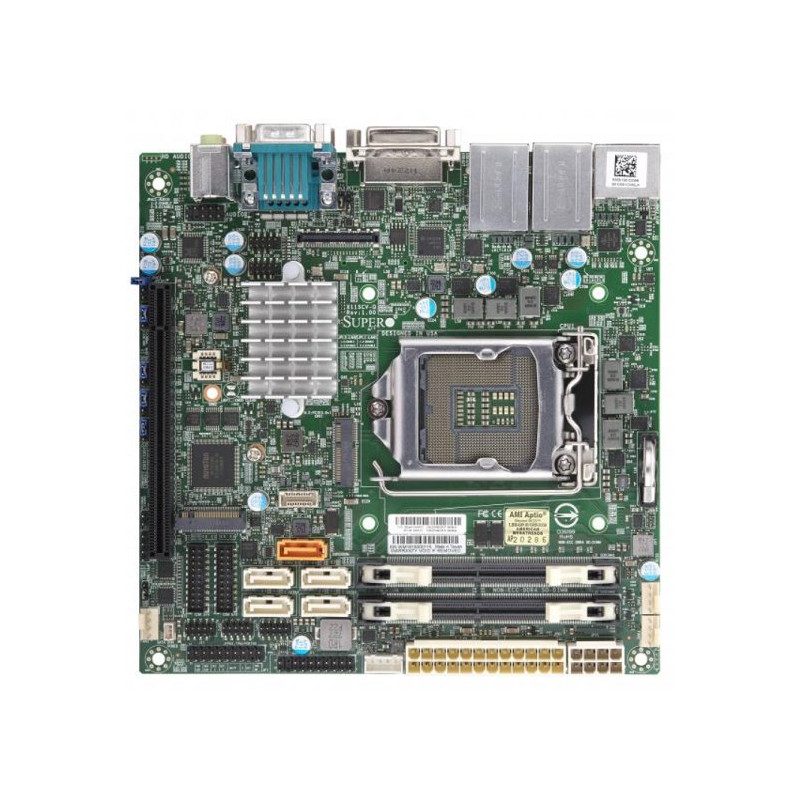

SUPERMICRO MB 1xLGA1151 (Core 8/9 65W), Q370,2xDDR4 SO-DIMM,6xSATA3,M.2, PCIe 3.0 x16,HDMI,DP,DVI,Audio,2xLAN

Product SKUs

MBD-X11SCV-Q X11SCV-Q



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP



System Memory

Memory Capacity Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots

Memory Type N/A

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® Q370

SATA Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Audio ALC 888S HD Audio

Graphics Intel® HD Graphics
3 Independent Displays, HDMI 2.0



Input / Output

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 4 USB 2.0 ports (4 via headers)
6 USB 3.2 Gen2 ports (4 rears (2 Rear Type A + 2 Rear Type C + 2 via headers; USB 3.1 Gen 2

Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays, HDMI 2.0

Serial Port / Header 6 COM Ports (2 rear, 4 headers), 4COM port support RS-232 thru pin header; 2COM support RS-232/422/485 in rear


TPM 1 TPM Header & Chip both







Expansion Slots

PCI-E 1 PCI-E 3.0 x16

M.2 1 M.2 M-Key PCI-E 3.0 x4, 2242/2280
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC Wakeup BIOS setup option



Management

Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog

Power Configurations ATX Power connector
+12V DC Power Input



PC Health Monitoring

Voltage +1.8V, +3.3V, +5V, +5V standby, 3 -fan status, HT, System level control, System temperature, VBAT

FAN 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, Low noise fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors

Temperature PECI

LED CPU / System Overheat LED

Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS, System level control, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -30°C ~ 60°C (-22°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCV-Q 1 X11SCV-Q Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00136-0N 1 Standard I/O Shield for X11SCV-Q



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCV-Q 1 X11SCV-Q Motherboard
QRG MNL-2096-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00136-0N 1 Standard I/O Shield for X11SCV-Q



Optional Parts List
Name Part Number Qty Description
USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm
COM Cable CBL-CUSB-0984 1 COM Cable 20cm
I/O Shield MCP-260-00137-0B 1 1U I/O Shield for X11SCV-Q in SC504 Chassis
Internal USB3.1 Type A cable CBL-CUSB-0835 1 USB 3.1 to dual USB 3.0 Type A



Chassis (Optimized for X11SCV-Q)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SCE300



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SCV-Q)

Server Name

SYS-E300-9C
SYS-5029C-TN2
