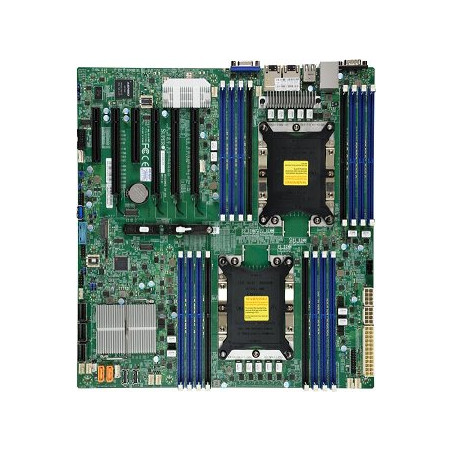

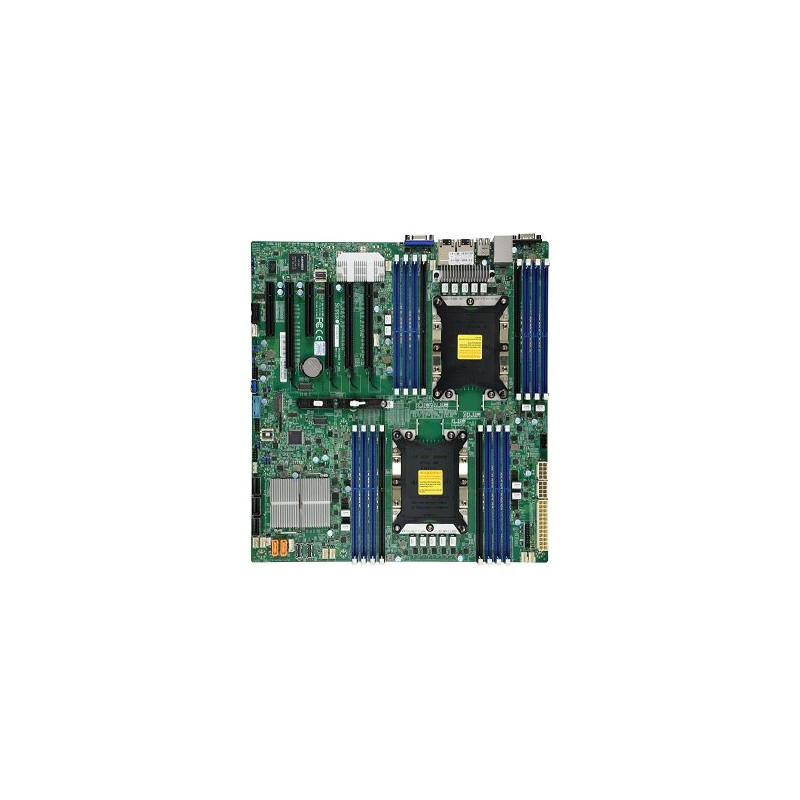

SUPERMICRO MB 2xLGA3647, iC622, 16x DDR4 ECC, 14xSATA3, 2xNVMe, 1xM.2, PCI-E 3.0/4,2(x16,x8),2x 10Gb LAN,IPMI

Product SKUs

MBD-X11DPi-NT X11DPi-NT



Physical Stats

Form Factor E-ATX

Dimensions 12" x 13" (30.48cm x 33.02cm)



Processor/Cache

CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

Cores / Cache Up to 28 cores

Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP



System Memory

Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);


Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C622

SATA Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with 10GBase-T with Intel® X722 + X557

Graphics ASPEED AST2500 BMC



Input / Output

SATA 14 SATA3 (6Gbps) port

USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8

M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages

FAN 8x 4-pin fan headers (up to 8 fans), PWM fan speed control

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11DPi-NT 1 X11DPi-NT Motherboard
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11DPi-NT 1 X11DPi-NT Motherboard
Quick Reference Guide MNL-1773-QRG 1
I/O Cables CBL-0476L 1 IPASS to 4 SATA cable
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD



Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V-S SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9671V-S SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor



Chassis (Optimized for X11DPi-NT)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC213AC-R1K23LPB
SC825TQC-R1K03LPB
SCLA25TQC-R609LP
SC825TQC-R802LPB
SC835TQC-R802B
SC835TQC-R1K03B
SC745BAC-R1K28B2
SC842TQC-865B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11DPi-NT)

Server Name

SYS-6029P-TRT
SYS-7049P-TRT
SYS-2029P-C1RT
