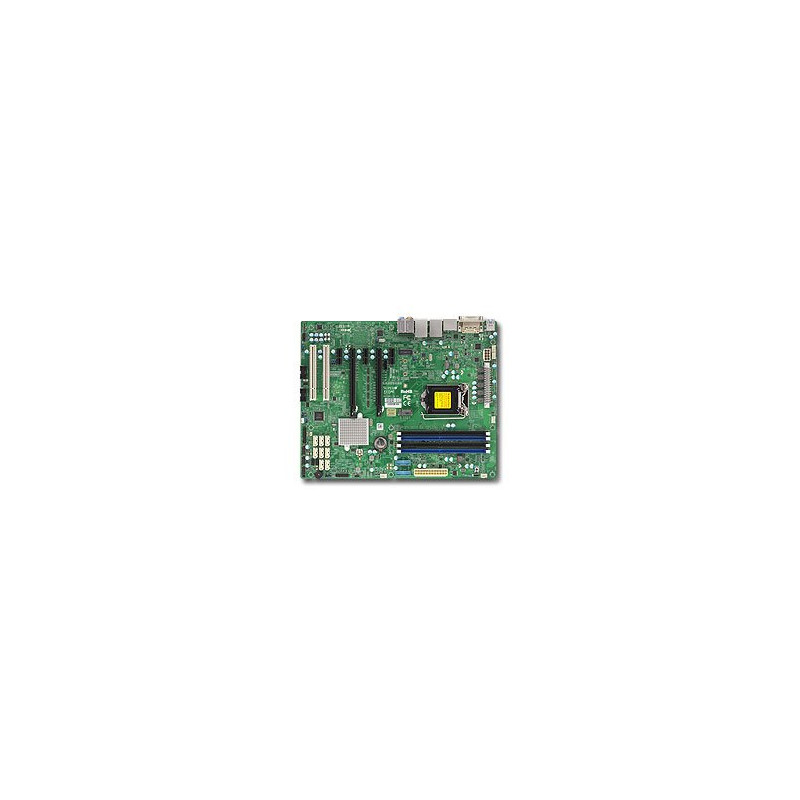

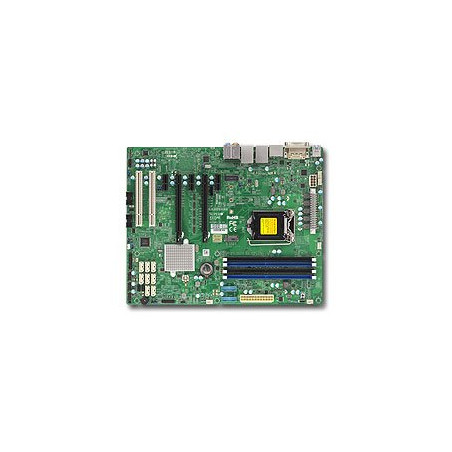

SUPERMICRO MB 1xLGA1151 (E3,i7), iC236,DDR4,8xSATA3,PCIe 3.0 (2 x16, 2 x1),2xPCI-32,1xM.2, HDMI,DP,DVI,Audio

Product SKUs

MBD-X11SAE X11SAE



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU Intel® 6th/7th Generation Core? i3 series, Intel® 6th/7th Generation Core? i5 series, Intel® 6th/7th Generation Core? i7 series, Intel® Xeon® processor E3-1200 v6/v5.
Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series



System Memory

Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid Support)

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Audio ALC 888S HD Audio



Input / Output

USB 8 USB 2.0 ports (2 rear + 6 via headers)
6 USB 3.1 Gen1 ports(2 rears, 4 Type A)
2 USB 3.1 Gen2 ports , 2 Type A); 2 USB 3.1 Gen 2 ports (2 Rear)

Video Output 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port

Serial Port / Header 2 COM Ports (2 headers)


TPM 1 TPM Header







Expansion Slots

PCI-E 2 PCI-E 3.0 x16,
3 PCI-E 3.0 x1,
***2 PCI-E x16 slots are running at x16/NA or x8/x8 ***
2 PCI,
2 - 5V PCI 32bit

M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2260/2280
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup



Management

Software AMT, SuperDoctor® 5, vPro, Watchdog

Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT

FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication

Temperature CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
