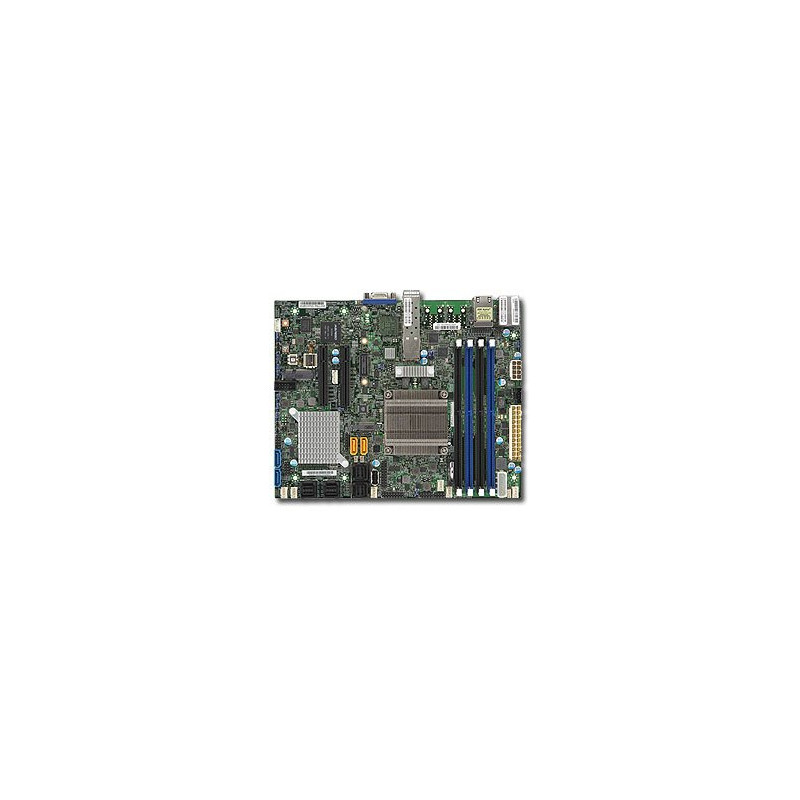

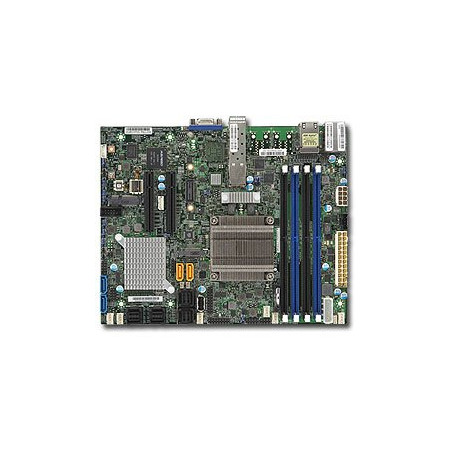

SUPERMICRO mini-ITX MB Xeon D-1537 (8-core), 4x DDR4 ECC DIMM,6xSATA,16xSAS3,2x PCI-E 3.0 x8, 2x10Gb SFP+ LAN,IPMI

Product SKUs

MBD-X10SDV-7TP4F X10SDV-7TP4F



Physical Stats

Form Factor Flex ATX

Dimensions 9.0" x 7.25" (22.86cm x 18.42cm)



Processor/Cache

CPU Intel® Xeon® Processor D-1537.
Single Socket FCBGA1667 supported, CPU TDP support 35W

Cores / Cache 8 cores, 16 threads / 12MB cache



System Memory

Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots

Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
Broadcom® 2116 SW controller for 16 SATA3 (6 Gbps) ports;
SAS2 and SATA3

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual LAN with 10G SFP+ from D-1500 SoC
Dual LAN with 1GbE with Intel® I210
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 4 SATA3 (6Gbps) port

LAN 2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 2.0 ports (4 headers, 1 Type A)
2 USB 3.0 ports (2 rear)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 2 PCI-E 3.0 x8
M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support

M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110



System BIOS

BIOS Type 128Mb SPI Flash with AMI BIOS

BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4



Management

Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
ATX Power connector
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature, VBAT

FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED

Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
