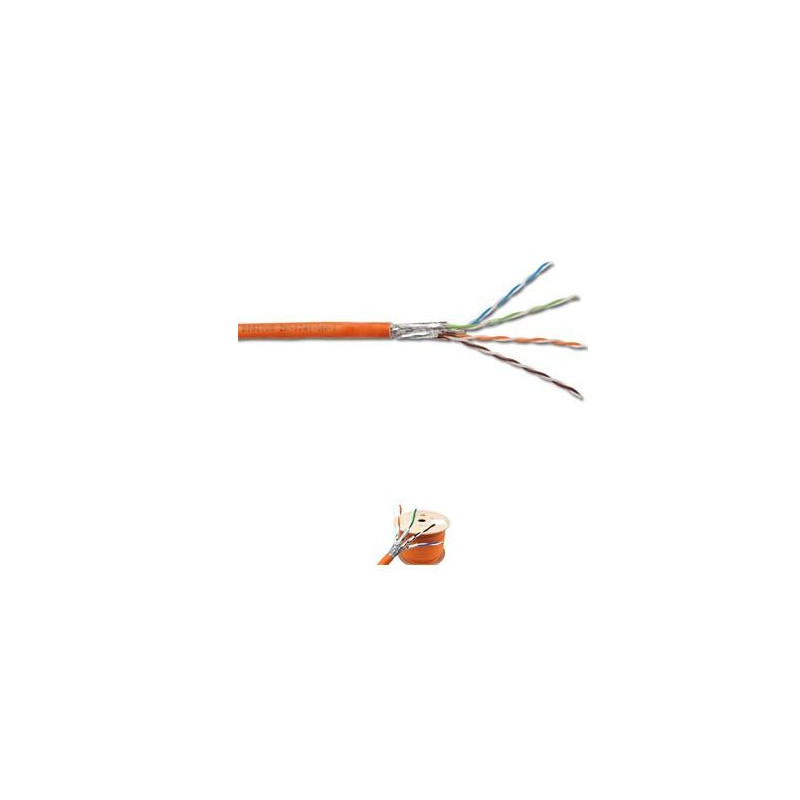

DIGITUS CAT 7, orange 100m ring, Twisted Pair PiMF Installation CableS/FTP, AWG 23/1, LSZH, 1000MHz

DIGITUS CAT 7 Twisted Pair PiMF Installation Cable 100m ring

S/FTP, AWG 23/1, LSZH, 1000MHz, Color orange



Instalační kabel nejvyšší kategorie Cat7, drát, stíněný každý pár jednotlivě + celkově opletením a fólií. Provedení nehořlavé LSZH, bezhalogenové. Oranžová barva. Návin 100m.



Parametry:





Physical description

• Basic Conductor: solid AWG 23/1, bare annealed copper (0.57mm nom.)

• Insulation: SFS-PO

• Total number of insulated conductors: 8, twisted in 4 pairs

• Color code: blue x white, orange x white, green x white, brown x white

• Individual pair shield: Aluminium foil, providing 100% coverage, foil face out

• Overall shield: tin-coated copper wire braid, 35% nom. coverage

• Outer jacket: low-smoke, zero-halogen, flame retardant, non corrosive compound for indoor use

• Outer jacket thickness: 0.6mm nom.

• Color: orange RAL 2000

• Overall diameter: 7.5mm nom.

• Copper (kg/km): 28



Mechanical properties

• Bend radius: dynamic: 8xD mm min., static: 4xD mm min.

• Storage temperature: -20°C to +75°C

• Temperature installation range: 0°C to +50°C

• Temperature operating range: -20°C to +60°C

• Flame tests: IEC 60332-1 (fire), IEC 60754 (gas), IEC 61034 (smoke)

• Pulling force: 150N max.

• Caloric value: 650 KJ/m

• Total weight: 68 Kg/Km nom.



Electrical properties @ 20°C

• Mean impedance: 100±5 Ohm @ 1-600 MHz

• Vp: 57-77% nom.

• Capacitance. 40 pF/m nom. @ 1 KHz

• Capacitance unbalance to ground: 1.6 pF/m nom. @ 1 KHz

• Insulation resistance: 0.5 GOhm · Km min.

• DC resistance: 72 Ohm/Km max. (2% max. resistance unbalance)

• DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)

• Voltage resistance: 72Vdc max.

• Coupling attenuation: 85dB min. @ 30-100 MHz, 82-20Log(f/100)dB min. @ 100-1000 MHz

• PS-ANEXT loss: 92.5-15Log(f) dB min. @ 1-600 MHz (67 dB max.)

• PS-AACRF: 78.2-20Log(f) dB min. @ 1-600 MHz (67 dB max.)

• Phase delay: 534+36/f1 nS/100m max. @ f=1-1000 MHz

• Delay skew: 25 nS/100m max.
