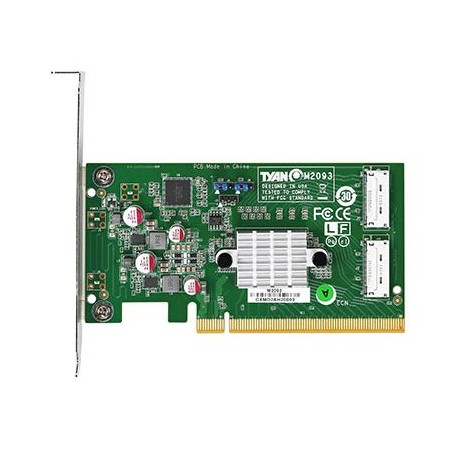

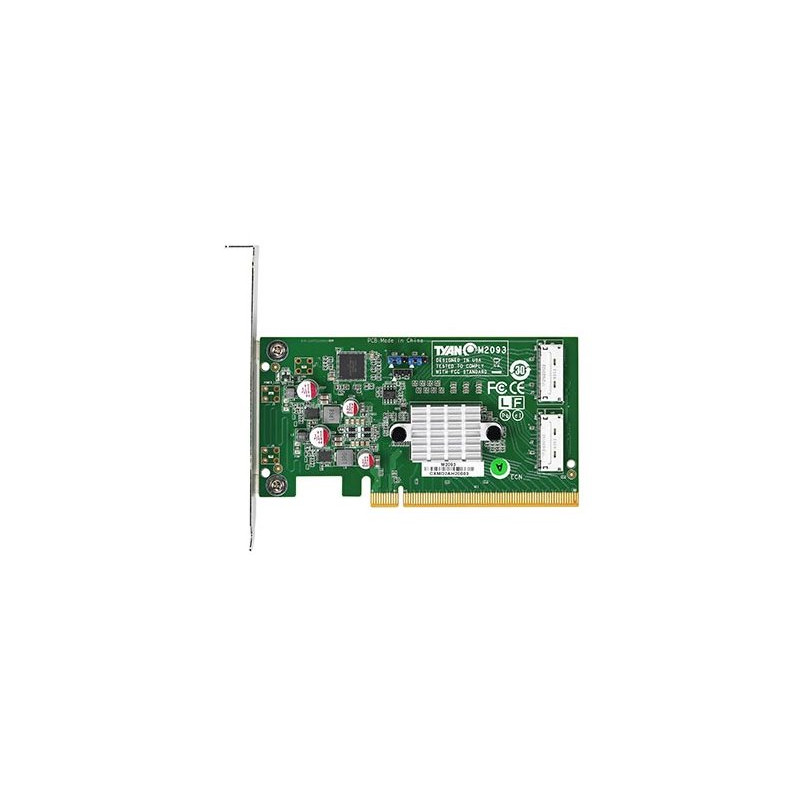

Tyan NVMe adpater, PCIe x16/2x OCuLink 8x, M2093

TYAN M2093 (M2093) Specifications


Host Bus Type Host Interface PCI-E Gen3 x16
Device Interface PCI-E Gen3 x8 via (2) OCuLink (SFF-8612) connectors
Physical Dimension Form Factor Half height, half length
Board Dimension 2.53" x 4.72" (64.41 x 120mm)
Supported TYAN Product Barebone GT62F-B5630 / GT75B-B7102 / GT86C-B5630 / TN76-B7102 / TN70A-B8026 / FT77D-B7109 / TN70E-B8026 / TN76A-B8242 / TS65A-B8036
Operating System OS supported list SuSE Linux/ SLES / Windows Server 2008, 2008 R2 / Red Hat Enterprise Linux Server / RHEL 7.3 x64 / RHEL 7.4 x64 / Windows Server 2016 Standard x64 EN / RHEL 7.5 x64
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
Regulation FCC (DoC) Class A
CE (DoC) Class A
RoHS RoHS 6/6 Compliant Yes
Package Contains Card (1) M2093 Card
Others (1) Low profile bracket
