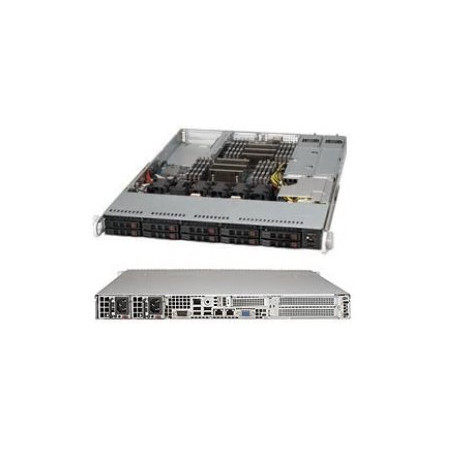

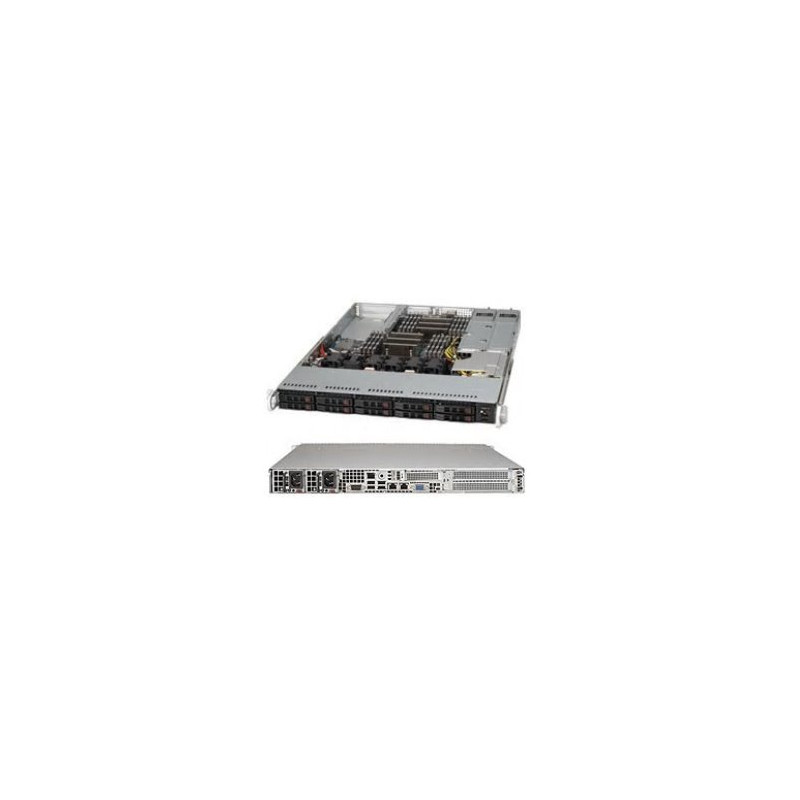

SUPERMICRO 1U chassis 10x 2,5" HS SAS3/SATA3, 2x700/750W, WIO

Product SKUs

CSE-116TQ-R706WB SuperChassis 116TQ-R706WB



Form Factor

Optimized for WIO (W series) motherboards



Processor Support

Dual, single Intel® / AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 23.5" (597 mm)

Gross Weight N/A

Packaging (W x H x L) 24" (610 mm) x 8" (203 mm) x 32" (813 mm)

Available Color Black



Expansion Slots

2 full-height & full-length expansion slot(s)
1 low-profile expansion slot(s)



Drive Bays

10 x 2.5" hot-swap SAS/SATA drive bay



Backplane

10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD



Front Panel

Buttons Power On/Off button
Unit Identification (UID) button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 4 x 40x56mm counter-rotation PWM fan(s)
(Opt. 2x fans for AOC cooling)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Power Efficiency 94%

Total Output Power and Input 700W with Input 100 - 140Vac
750W with Input 200 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 320 x 54.5 x 40.25 mm

Output Type Backplanes (gold finger)

+12V Max: 58A / Min: 0.5A (100Vac - 140Vac)
Max: 62A / Min: 0.5A (200Vac - 240Vac)

+5Vsb Max: 3A / Min: 0A

Power Distributor PDB-PT112-2420
O/P: 12V/54
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
HD Backplane BPN-SAS-116TQ 1 10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD
Cable(S) CBL-0157L 3 8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0206L 2 48CM SATA ROUND S-S PBF
Cable(S) CBL-0227L 2 48CM SATA ROUND S-RA PBF
Cable(S) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Fan(s) FAN-0101L4 4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Front Panel FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X
Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan
Cooling Fan & Accessory MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00047-0B 10 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT112-2420 1 SC112 20PIN REDUNDANT POWER DISTRIBUTOR
Part(s) MCP-120-00029-0N 2 Blank FH L bracket without SCSI cutout for SC815,823
Part(s) MCP-120-00030-0N 1 Blank LP L-bracket (1 raw of capsule hole)
Power Supply & Accessory PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Power Supply & Accessory MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
Mounting Rail(s) MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Rear Window MCP-240-00098-0N 1 WIO rear window for SC113,SC116, SC815 Redundant PWS




Optional Parts List

Part Number Qty Description
Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4")





Motherboard (for CSE- 116TQ-R706WB)


X10DRW-iT X10DRW-i


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- 116TQ-R706WB)


1028R-WTR 1028R-WC1RT 1028R-WTNR 1028R-WTNRT



SuperChassis 116TQ-R706WB
