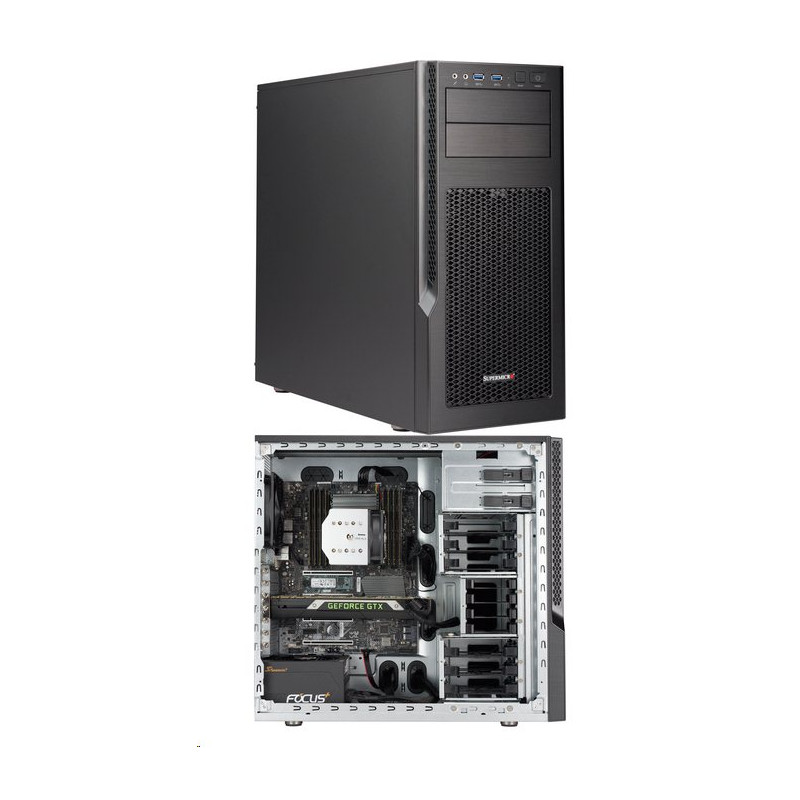

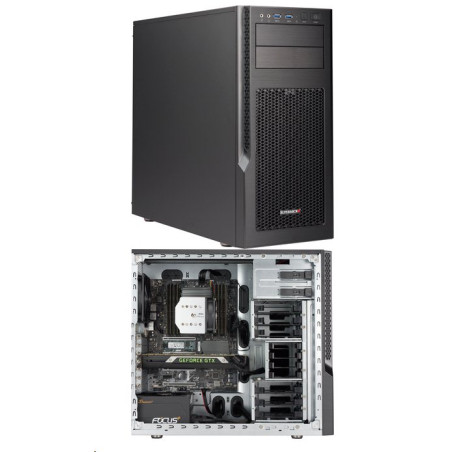

SUPERMICRO Mid-Tower 6x 3,5" + 4x 2,5" int. HDD, 2x 5,25", 750W (80Plus Gold)

Product SKUs

CSE-GS5A-754K SuperChassis GS5A-754K



Form Factor

Mid-Tower chassis for motherboard support size ATX 12?x10? & Micro-ATX 9.6?x9.6?



Processor Support

Single Intel® and AMD processors



Dimensions

Height 18.1" (460 mm)

Width 7.9" (200 mm)

Depth 19.4" (493 mm)

Net Weight 20 lbs (9 kg)

Gross Weight 26 lbs (11.8 kg)

Packaging (W x H x L) 14.2" (361 mm) x 24.9" (632 mm) x 24" (610 mm)

Available Color Black / Gray



Expansion Slots

Up to
7 full-height & full-length expansion slot(s)



Drive Bays

6 x 3.5" fixed drive bay
4 x 2.5" fixed drive bay



Peripheral Drives

2 x standard 5.25" drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs HDD activity LED
Power Status LED







Systems Cooling

Fans 2 x 12cm front cooling fan(s)
1 x 12cm rear exhaust fan(s)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
750W PS2 Multi-output Power Supply
Total Output Power and Input 750W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 140 x 150 x 86 mm

Output Type 24pin ATX

-12V Max: 0.3A

+12V Max: 62A (100Vac - 240Vac)

+5V Max: 20A

+3.3V Max: 20A

+5Vsb Max: 3A

Certification Gold Certified Gold Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
FCC class B
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Drive Tray(s) MCP-220-GS501-0B 1 S5 Mid-Tower Chassis 5.25inch Drive Tray
Drive Tray(s) MCP-220-GS502-0B 1 S5 Mid-Tower Chassis Tool-less Internal 2.5" HDD Carrier
Drive Tray(s) MCP-220-GS503-0B 1 S5 Mid-Tower Chassis Tool-less Internal 3.5" HDD Carrier
Power Supply & Accessory PWS-754-PQ 1 SSR-750FX 750W Muli-output-output PS with modular cable




Optional Parts List

Part Number Qty Description
Heatsink / Retention SNK-P3002A 1 Liquid Cooling Module w/ a 3-pin Pump Connector for S5 chassis





Motherboard (for CSE- GS5A-754K)


C9X299-PGF C9Z390-PGW C9Z390-CG-IW C9X299-PG300
C9Z390-CGW C9Z390-CG C9X299-PG300F X12SCA-F
X12SAE


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- GS5A-754K)


5039AD-I
