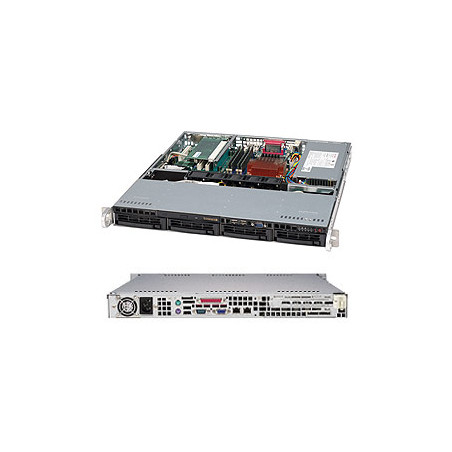

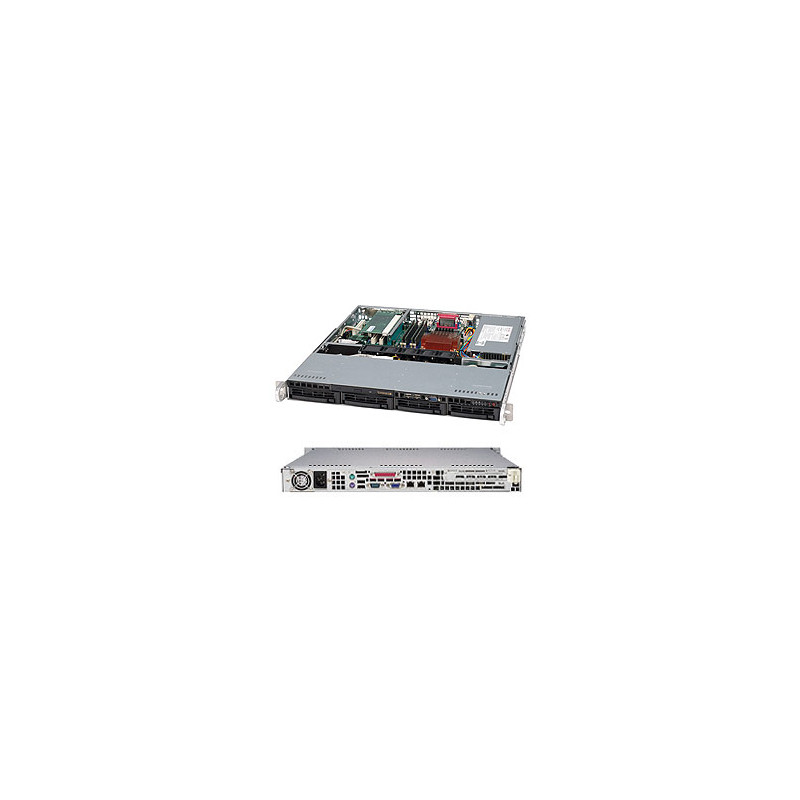

SUPERMICRO 1U chassis 4x 3,5" HS SAS/SATA, 350W (80PLUS Platinum)

Product SKUs

CSE-813MFTQC-350CB SuperChassis 813MFTQC-350CB



Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")



Processor Support

Dual, single Intel® / AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 19.85" (503 mm)

Gross Weight 31 lbs (14.06 kg)

Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)

Available Color Black



Expansion Slots

1 full height expansion slot(s)



Drive Bays

4 x 3.5" hot-swap SAS/SATA



Backplane

1U 4-Port 12Gbps Backplane Support 4x3.5



Peripheral Drives

Optional 1 x Slim DVD-ROM Drive



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED







Systems Cooling

Fans 4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency 93%

Total Output Power and Input 350W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 180 x 100 x 40 mm

Output Type 24pin ATX

-12V Max: 0.2A / Min: 0A

+12V Max: 29A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 15A / Min: 0.2A

+3.3V Max: 12A / Min: 0.2A

+5Vsb Max: 3A / Min: 0A

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB



Components ?





Standard Parts List

Part Number Qty Description
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan(s) FAN-0147L4 4 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M)
Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Power Supply & Accessory PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2




Optional Parts List

Part Number Qty Description
Front USB MCP-220-00114-0N - Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH
Front USB MCP-220-00129-0B - Black 2x USB3.0/COM port tray in slim FDD bay
Mounting Rail CSE-PT52L - Sliver chassis rail set for SC813M,515,113M
Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE
Peripheral Drive(s) DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Peripheral Drive(s) DVM-TEAC-DVD-SBT3 - BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS,HF,RoHS/REACH,PBF
Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF
Peripheral Drive(s) MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842





Motherboard (for CSE- 813MFTQC-350CB)


X11SSH-F X11SSH-LN4F X11SSi-LN4F X11SSL-F
X11SSL-CF X11SSL-nF X11SSL X11SSM-F
X11SSM X11SSH-CTF X11SSH-TF X11SSZ-TLN4F
X11SSZ-F X11SSZ-QF X10SRM-TF X10SRM-F
X11SSH-GTF-1585 X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- 813MFTQC-350CB)


5019S-M2 5019P-MT 5019S-M-G1585L 5019P-M
