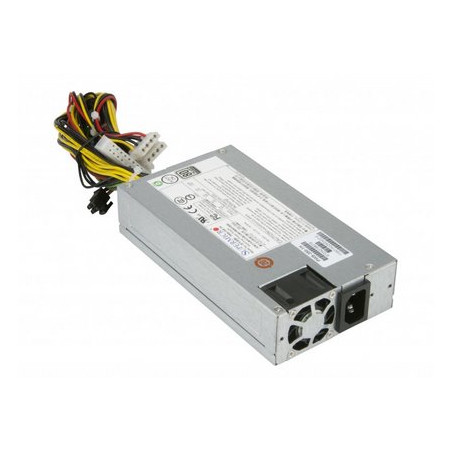

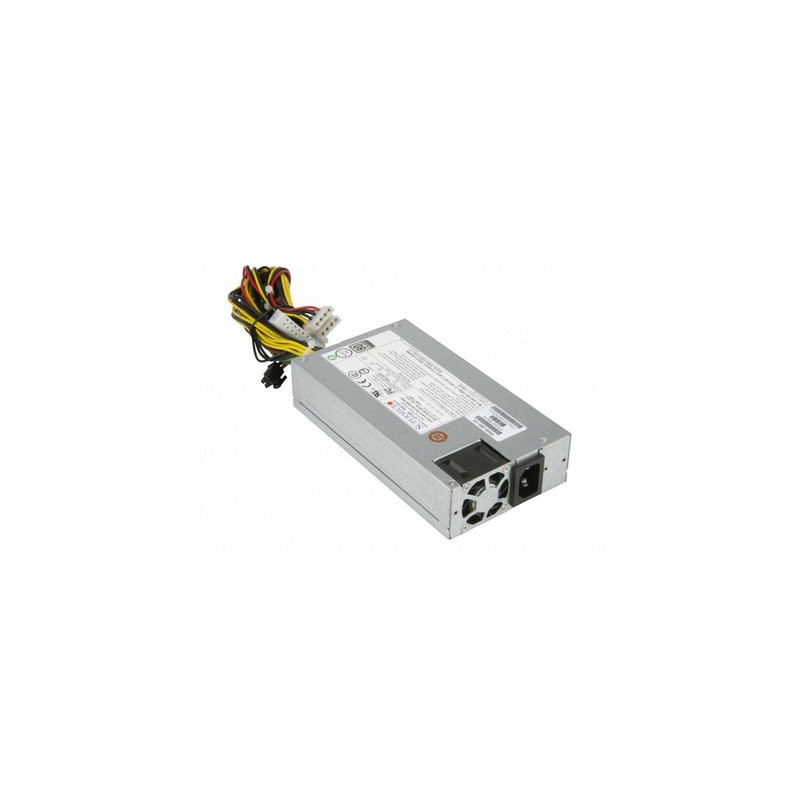

SUPERMICRO 1U, 350W, Multiple Output, 80+ Paltinum Power Supply

The Supermicro PWS-350-1H is an 80 Plus Platinum level power supply capable of continuously supplying 350W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and are certified by Supermicro.

Cables Included: •1x 24 Pin ATX (Motherboard)
•1x 8 Pin 12V (CPU)
•1x (4+4) 8 Pin 12V (CPU)
•2x 4 Pin Legacy HDD

Total Power Output
350W

Type
Single

Type of Power Supply
Power Supply

Form Factor
1U

Dimension (W x H x L)
100 x 40 x 180mm

+5V
15A

+12V
29A

+3.3V
12A

5V Standby
3A

Input Voltage Range
100-240Vac

Input Frequency Range
50-60Hz

Input Current Range
5 - 2.5A

Output Type
24Pin ATX Cable Output

8Pin / 4Pin (12V) Connector
Both

PFC
Yes

Voltage / Current
No

Energy Efficiency
94% Peak

80 Plus Certification
80 Plus Platinum

Validated Systems
SYS-1019C-FHTN8, SYS-1019D-4C-FHN13TP, SYS-1019D-FHN13TP, SYS-5018R-M, SYS-5019C-M, SYS-5019C-M4L, SYS-5019C-MHN2, SYS-5019P-M, SYS-5019P-MT, SYS-5019S-M, SYS-5019S-M-G1585L, SYS-5019S-M2, SYS-5019S-ML, SYS-5019S-MN4, SYS-5019S-MT

Validated Chassis
CSE-512F-350B1, CSE-513BTQC-350B, CSE-513BTQC-350WB, CSE-515-350, CSE-813MFTQC-350CB, CSE-813MFTQC-350CB2

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
