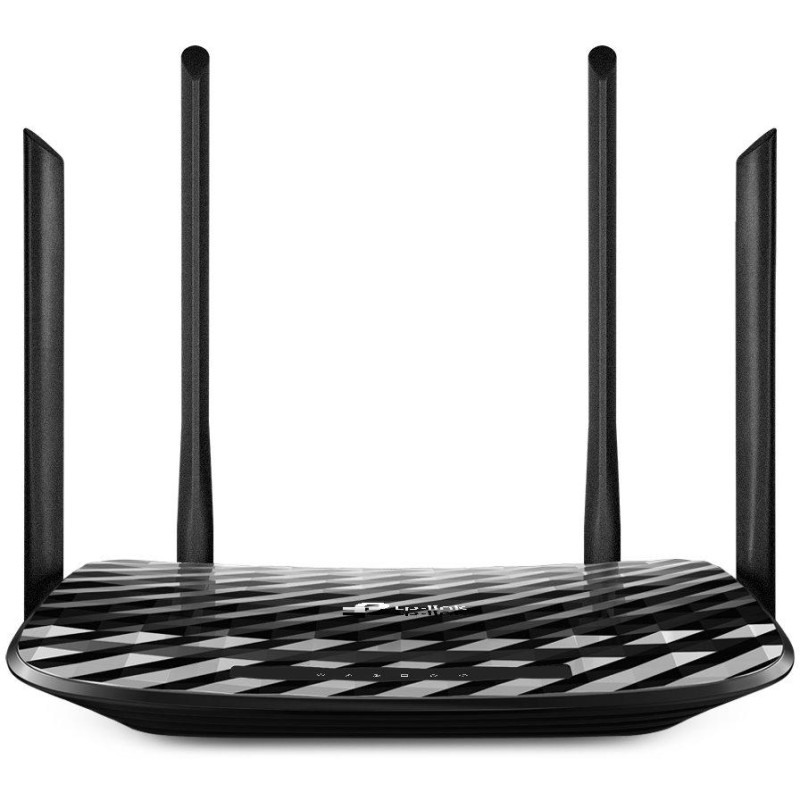

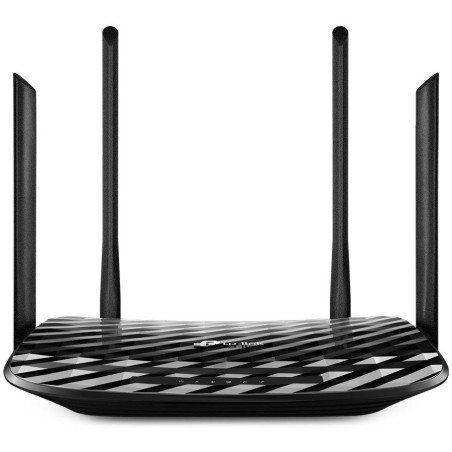

TP-Link EC225-G5
Wireless dual-band AC1300 router operating in the 2.4 and 5 GHz bands with support for 802.11a/b/g/n/ac standards. The router is equipped with Wi-Fi 5 wireless technology with sufficient speed for online gaming, streaming HD content and fast file downloads without dropouts. In the 2.4 GHz band, it reaches transfer speeds of up to 400 Mbit/s and in the 5 GHz band up to 867 Mbit/s . Beamforming technology and four high-gain antennas work together to adjust Wi-Fi coverage to perfectly fit your home and concentrate signal strength on each device. On the back, it has three RJ-45 gigabit LAN ports and one RJ-45 gigabit WAN port.
- Dual-band Wi-Fi AC1300 – 867 Mbit/s on the 5 GHz band and 400 Mbit/s on the 2.4 GHz band.
- MU-MIMO technology – Simultaneous data transmission to multiple devices for 2x higher performance.
- Increased coverage – 4 external antennas equipped with Beamforming technology expand and concentrate Wi-Fi signals.
- EasyMesh compatible – Covers your entire home with a Wi-Fi network using standard Mesh technology.
- Guest Network - Create separate networks for visitors or different applications while maintaining the security of the main network.
- WPA3 Security - Higher password security and better protection against brute-force attacks.
- Easy setup – You can set up your router in minutes via the intuitive web interface or the Aginet app.
Easy-to-use parental controls
Parents can gain control over the content their children view, just as network administrators can monitor employees. Using keywords, you can easily set up a block list of content and restrict the level of web access.
Easy setup and management with the Aginet app
The free Aginet app is available for Android and iOS devices and makes it easy to configure the EC225-G5 and manage network settings.
Easy remote management for ISPs
Allows ISPs to remotely configure and manage end-user devices. Supports TR-069, TR-098, TR181, TR-111, and TR143.
BASIC SPECIFICATIONS
Standard: 802.11a/b/g/n/ac
Data transfer rate: 867 Mbps - 5 GHz, 400 Mbps - 2.4 GHz
Antenna: 4x external omnidirectional antenna
Ports: 3x GbE RJ-45 LAN, 1x GbE RJ-45 WAN
Frequency band: 2.4GHz, 5GHz
Security: WPA, WPA2, WPA3
PoE support: no
Dimensions: 230 x 144 x 35 mm
