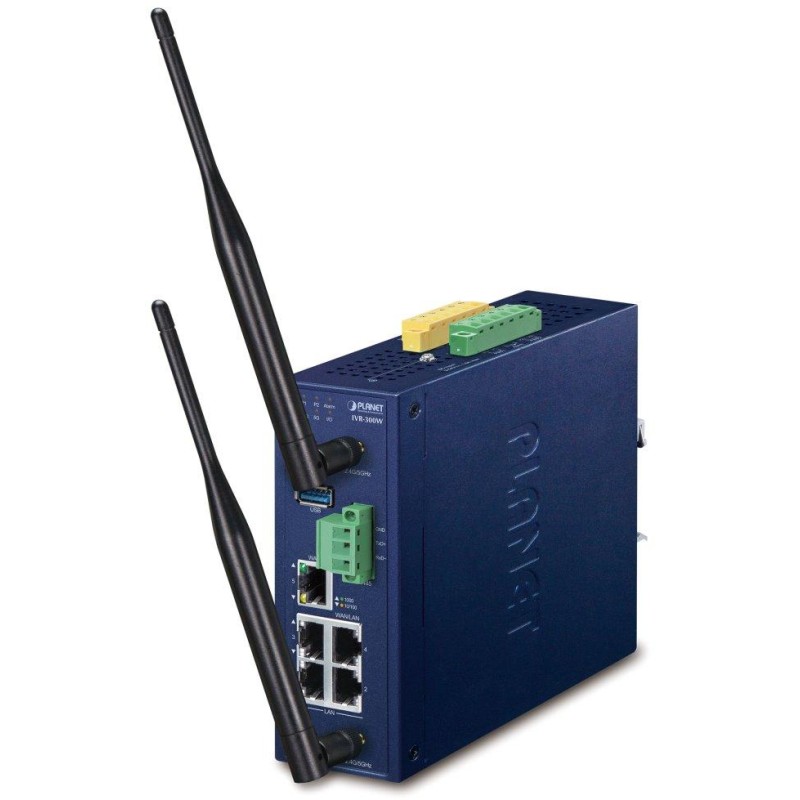

Planet IVR-300W industrial router, firewall, VPN, DoS, 2x WAN, 3x LAN, SD-WAN, Wi-Fi, fanless, IP30, -40 to +75°C, 9-54VDC

PLANET IVR-300W Wi-Fi 802.11ax industrial gigabit VPN router (security gateway) with five RJ-45 ports for WAN/LAN/DMZ definition with easy and quick setup via web interface. A device with a professional firewall enabling multiple Internet connections with the ability to distribute the load or create a backup for connections. It is an ideal device with a firewall and SD-WAN support for medium and small companies, providing them with a redundant Internet connection, while solving applications of secure remote connection to remote networks and protection against attacks from the Internet, it has an advanced firewall with detection of non-standard IP traffic, as well as the ability to control the transmission bandwidth using QoS rules and statistics of transmitted data. Connections between local networks or for external clients are provided by an integrated VPN server, encryption is supported by an integrated hardware accelerator. Wall or DIN installation, metal design IP30, DI/DO interface (2x input, 2x output), RS-485 (3-pole terminal block), 2x SMA connector (antennas included), dual power supply DC 9-54 V, operation at -40 to 75 °C, fanless. Key features: Wi-Fi: 2.4 and 5 GHz, IEEE 802.11a/b/g/n/ac/ax, 2x external 5 dBi SMA antenna, 600 + 1200 mbps transmission SD-WAN support Dual-WAN function USB 3.0 port for system configuration backup and firmware update 2x DI/DO and 1x serial port (RS-485) for Modbus applications SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful packet inspection (SPI) firewall and content filtering Cybersecurity, NAT ALG (application layer gateway), blocks SYN/ICMP Flooding DoS/DDOS attack blocking, port range forwarding AP controller - access interface (Captive Portal) including RADIUS - management of up to 16 AP Wi-Fi units without the need for a license Supported Planet NMS management system and CloudViewer application 1x 3-pole terminal block (RS-485) IP routing functions - static and dynamic routing, OSPF VPN functions - IPSec/remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN) Outbound load balancing for Ethernet WAN networks Automatic switching between Ethernet WAN networks Remote backup/restore of configuration and firmware updates or via USB port Grouping multiple devices into a cluster and their mass management or, for example, updates Software-defined WAN networks (SD-WAN) remove the limitations of an MPLS line from an external provider to the headquarters for cloud applications. However, using cloud applications in traditional networks that were not built for such type of traffic often means connection slowdowns, outages and an overall deterioration of the user experience. Not to mention the financial cost of such lines. SD-WAN automatically monitors data traffic in the network and directs it along a route that guarantees the highest possible quality. A great advantage of SD-WAN is also centralized management. It minimizes the risk of configuration errors, simplifies the detection and resolution of network problems and allows you to quickly implement the necessary changes to network and security policies. Another advantage of SD-WAN is security. It combines security integrated directly in the architecture with cloud security functions - it is a modern SASE approach. This does not limit the performance of the network or applications. Possible monitoring of mobile applications CloudViewer. BASIC SPECIFICATIONS Interfaces: Ports: 3x RJ-45 Gbit LAN, 1x RJ-45 Gbit LAN/WAN, 1x RJ-45 Gbit WAN, 1x USB 3.0 (firmware upgrade + backup/restore configuration) Management and administration: Web management (management from any browser), System Log, SNMP v1/v2c support, PLANET Smart Discovery utility and NMS controller Prioritization pQoS routing: yes IP routing and firewall: Firewall: SPI (Stateful Packet Inspection), blocking SYN/ICMP Flooding, NAT ALGs (Application Layer Gateway), etc. Traffic protection: DoS/DDOS protection, MAC/IP/URL filtering Protocols and services: TCP/IP, UDP, ARP, IPv4, IPv6, QoS, DMZ, IGMP, UPnP, SNMP (v1/v2c/v3), Static IP/PPPoE/DHCP client for WAN, DHCP server/NTP client for LAN, MAC address cloning, DDNS (PLANET DDNS, Easy DDNS, DynDNS and No-IP) VPN: Tunnels: PPTP, L2TP, GRE, IPSec/Remote Server (Net-to-Net, Host-to-Net), SSL Server/Client (Open VPN) Performance: 60 tunnels, throughput up to 60 Mbps Encryption: DES, 3DES, AES or AES-128/192/256-bit encryption Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 authentication algorithm Physical characteristics: Design: DIN rail or wall Power supply: DC power supply 9-54 V, redundant, 6-pin terminal, total power consumption up to 15.6 W (power supply not included) Operating temperature: -40 to +75 °C Dimensions: 135 x 135 x 50 mm Weight: 773 g Other downloads
