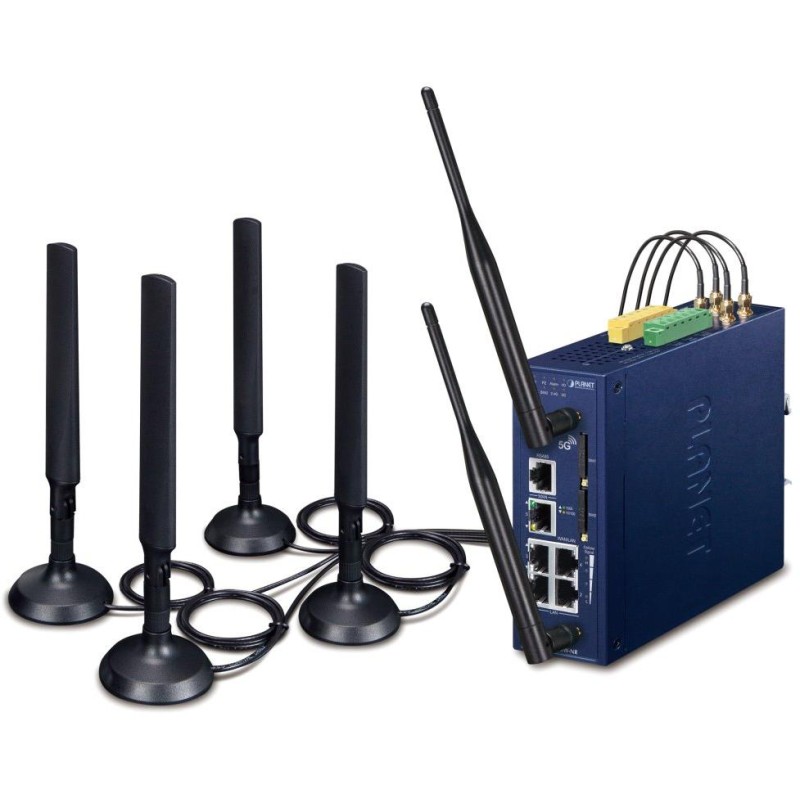

PLANET ICG-2515W-NR
Industrial Wi-Fi 6 security gateway for 5G/LTE IoT/M2M infrastructure (machine-to-machine), 3x LAN, 1x LAN/WAN, 1x WAN), 1x serial port RJ-45 (DB9), 2x SIM slot (redundant) , 2x digital input DI, 2x digital output DO, 4x 5G NR antenna (SMA connectors, 5 dBi gain, 3G/4G/LTE/5G mobile networks), download up to 2.4 Gbps, upload up to 500 Mbps, GNSS (GPS L1+L5, GLONASS, BeiDou, Galileo, QZSS), Wi-Fi connection (802.11a/b/g/n/ac/ax).
Web/SNMP v1/v2c/v3 management, SSH v2, TLS v1.2, support for UNI-NMS and PLANET Smart Discovery utility and Planet CloudViewer App , router with firewall, VPN support, dual WAN , RADIUS Server/Client, IP30 protection, operating temperature -40 to +75 °C , DIN rail mounting, DC 9-54 V power supply.
Wi-Fi 6 industrial Ethernet 5G/LTE gateway for possible application within IoT (Internet of Things) networks, M2M (machine to machine) industrial automation, but also for regular internet connection in mobile devices. The gateway can become a robust element of your customer data network infrastructure.
The basic communication interface is the 5G NR (NSA/SA) interface with backward support for previous generation networks (4G/LTE/3G), which you can use for places with poor signal coverage, when moving or roaming.
In addition to the gateway function, this device is also equipped with a wired router function via RJ-45 connectors. Thanks to this, the device is also ready for use with a classic wired connection if this installation is necessary.
Planet industrial elements are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments.
Key features:
- Global 5G NR (NSA/SA) and 4G LTE network with dual SIM slots for mobile network redundancy & Siemens SIMCom 4G/5G hardware modem
- Dual WAN - failover
- Automatic failover between 5G NR and Gigabit WAN
- 2x DI/DO and 1x serial port (RS-485) for Modbus applications
- Wi-Fi connection (802.11a/b/g/n/ac/ax), 1.8 Gbps (600 Mbps for 2.4 GHz; 1200 Mbps for 5 GHz)
- 2T2R MU-MIMO technology for better throughput and coverage, transmit power control
- GNSS localization in space with GPS/GLONASS/BeiDou/Galileo/QZSS support
- High Availability (HA)
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful Packet Inspection (SPI) Firewall + Content Filtering
- Advanced DoS/DDOS attack blocking
- Port range routing
- AP controller - access interface (Captive Portal) including RADIUS - management of up to 16 AP Wi-Fi units without the need to purchase a license
- Support for Planet NMS control systems and CloudViewer application
- Operating temperature -45 to +75 °C, DIN rail design, fanless
- Possible router monitoring withthe CloudViewer mobile application
Norms and standards:
- EN 301 908 - IMT cellular networks and access to them
- EN 303 413 - Satellite Earth Stations and Systems (SES)
- EN 301 489 - Electromagnetic compatibility (EMC) and radio mattersRadio Equipment and Services (ERM)
- EN 62311:2008 - Assessment of equipment in relation to human exposure limits to electromagnetic fields (0 Hz - 300 GHz)
- EN IEC 62368-1:2020/A11:2020 - Audio/video, information and communication technology equipment
BASIC SPECIFICATIONS
Physical properties:
Ports: 3x GbE RJ-45 LAN, 1x GbE RJ-45 LAN/WAN, 1x GbE RJ-45 WAN, 1x RJ-45 serial port, 2x SIM slot, 2x DI digital input, 2x DO digital output, 2x Wi-Fi connector
Mobile connection: 5G-NR (New radio), 2x SIM slot, 4x SMA connector
High Availability: Automatic failover between 5G NR and Gigabit WAN
MODBUS support: yes
Memory: 16MB Flash, 32GB eMMC, 512MB RAM
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: 2x DC 9-54 V, total power consumption up to 10 W (power supply not included), power inputs are mutually backed up
LED indication of mobile signal status and strength: yes
Operating temperature: -40 to +75 °C, humidity up to 90%
Dimensions: 135 x 135 x 50 mm
Weight: 0.9 kg
Supported LTE bands and frequencies:
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B46/B66/B71
LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48
WCDMA: B1/B2/B3/B4/B5/B8
GNSS (supported positioning systems): GPS L1+L5 (dual band), GLONASS, BeiDou, Galileo, QZSS
Wi-Fi interface:
Type: IEEE 802.11a/b/g/n/ac/ax
Frequency: 2.4GHz, 5GHz
Throughput: 1.8 Gbps (600 Mbps for 2.4 GHz; 1200 Mbps for 5 GHz)
Administration functions:
Management: Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2, UNI-NMS controller support, Smart Discovery utility and Planet CloudViewer application
Network Security: Cybersecurity, Firewall, SPI, DoS/DDoS attack blocking, content filtering, MAC/IP filter, NAT ALGs, SYN/ICMP Flooding blocking
Routing: static, dynamic, OSPF
Wi-Fi support: controller for Planet Wi-Fi AP units, Captive portal, built-in hostpot function for Wi-Fi clients
DHCP server: yes
Radius server/client: yes
VPN support: max. 60 tunnels, max 60 Mbps, hybrid, IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
