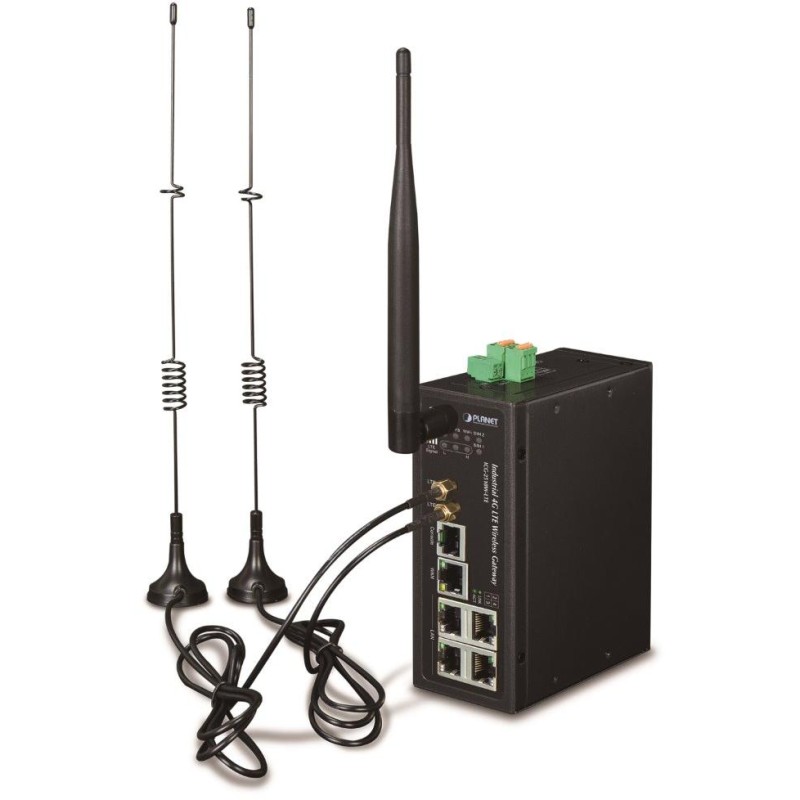

PLANET ICG-2510W-LTE
Industrial LTE gateway for IoT/M2M infrastructure , 1x WAN, 4x LAN, 1x RJ-45 (DB9), 2x digital input DI, 1x digital output DO, 2x SIM slot, 2x 5dbi antenna (SMA connectors, 2G/3G/4G/LTE mobile networks), 1x 1dbi antenna (RP-SMA-J), 1x microSD slot.
Web/SNMP v1/v2c management, CMS support for remote access. Router with firewall, VPN support IPsec+OpenVPN, URL/IP/MAC filter.
ESD+EFT surge protection. IP30 protection, operating temperature -35 to 75 °C , DIN rail mounting. Power supply DC 5 - 36 V (1.5 A).
Industrial Ethernet LTE gateway for possible application within IoT (Internet of Things), M2M (machine to machine) networks, but also for regular internet connection in mobile devices or dislocated installations (PV power plants). The gateway can become a robust element of your customer data network infrastructure.
The basic communication interface is two LTE interfaces with backward support for previous generation networks (2G+3G), which you can use in places with poor signal coverage, when moving or roaming.
The gateway includes a router with a firewall, VPN IPsec or OpenVPN can be used for connection, Web or SNMP management can be secured with SSH protocols. Access control and traffic can be filtered at the MAC/IP/URL address level.
In addition to the gateway function, this device is also equipped with a wired router function via RJ-45 connectors. Thanks to this, the device is also ready for use with a classic wired connection if this installation is necessary.
Planet industrial elements are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology even in industrial environments. The devices are designed for demanding operating conditions with frequent shocks and vibrations, have surge protection, are suitable for installation in outdoor cabinets with fluctuating operating temperatures (typically wireless, MAN ISP applications and telemetry).
BASIC SPECIFICATIONS
Physical properties:
Ports: 4 x RJ-45 LAN 10/100/1000Base-T, 1 x RJ-45 WAN 10/100/1000Base-T, 1 x RJ-45 (DB9), 2 x digital input, 1 x digital output (alarm), 2 x SIM slot, 2 x SMA, 1 x RP-SMA-J, 1 x microSD slot
WAN connection type: DHCP-4G, DHCP Client, Static IP, PPPoE Client, 3G Link1, 3G Link 2, DHCP-Backup 4G
MODBUS support: yes, MODBUS TCP, functional only through console port
Memory: 1k MAC addresses
IP protocol version: IPv4, IPv6
Design: DIN rail
Power supply: DC 9-36 V, total power consumption up to 8.4 W (power supply not included)
Protection: ESD up to 15kV, EFT up to 15kV
Operating temperature: -35 to +75 °C, humidity up to 90%
Dimensions: 133 x 115.7 x 45 mm
Weight: 564g
Supported LTE bands and frequencies:
FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
TDD LTE B38/B40/B41 (2600/2300/2500)
WCDMA B1/B5/B8 (2100/850/900)
GSM/EDGE B3/B8 (1800/900)
WiFi interface:
Type: IEEE 802.11 b/g/n/ac
Antennas: 11dBi for 2.4GHz band, 3dBi for 5GHz
Modes: AP, Client, Repeater, Repeater Bridge
Throughput: up to 300Mbps
WiFi clients: up to 30
Administration functions:
Management: console, Telnet, Web (HTTP/ HTTPS), SNMP v1, v2c, CMS
Network security: supports IP, URL and MAC filter
VLAN: up to 15 IDs
VPN support: PPTP server and clientL, L2TP server and client, Open server and client, IPSec, GRE
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
