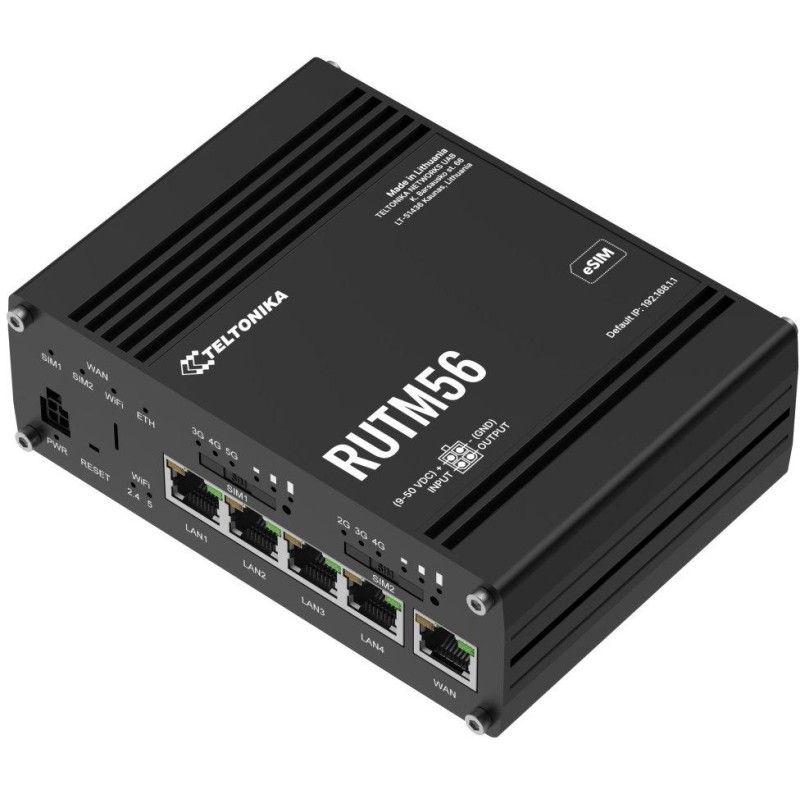

Teltonika RUTM56
Industrial mobile router with two modems that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.).
This model features 5G, 4G/LTE, Wi-Fi 5, dual SIM slots, eSIM support, and 5 Ethernet ports, making it ideal for quickly setting up primary and backup connections with remote management capabilities. DIN rail, wall, or flat surface mounting (brackets not included).
The package includes a 24W power adapter, an Ethernet cable (1.5 m), 6× 5G antennas, 2× Wi-Fi antennas, a GNSS antenna, and a set of SIM adapters.
- Connectivity: dual modem (5G, 4G/LTE, 3G + 4G/LTE, 3G, 2G)
- Wi-Fi: wireless access point with Hotspot function
- WAN failover: automatic switchover to an available backup connection
- RMS: remote management, access and VPN services
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Protocols: support for many protocols including MQTT, Modbus TCP and DNP3
- SIM: presence of 2x SIM slots (mini SIM, 2FF format), eSIM support (up to 7 profiles)
- Design: aluminum body, IP30 protection
More detailed information can be found in the attached manual, in the documents tab or on the pagehttps://wiki.teltonika-networks.com/view/RUTM56 .
Software:
- Operating system: RutOS (OpenWrt-based Linux operating system)
- Mobile features: eSIM, SIM switch, status, SMS, USSD, Black/White list, Multiple PDN, band management, SIM inactivity protection service, SIM PIN management, APN, Bridge, Passthrough, Framed routing
- Wireless features: Wi-Fi security, SSID/ESSID, Wi-Fi users, wireless features, MAC filter, QR code generator, TravelMate
- Network features: routing, network protocols, VoIP passthrough support, connection monitoring, firewall, firewall status page, port management, network topology, hotspot, DHCP, QoS/Smart Queue Management (SQM), DNS over HTTPS, DDNS, network backup, load balancing, SSHFS, VRF support, traffic management, port mirroring
- Security: Authentication, firewall, attack prevention, VLAN, mobile quota management, WEB filter, access control, TPM, SSL certificate generation, 802.1x
- VPN and Tunneling: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
- Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
- Services: OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS, API
- Location tracking: GNSS, coordinates, NMEA, NTRIP, server software, Geofencing
BASIC SPECIFICATIONS
Wi-Fi standard: IEEE 802.11b/g/n/ac Wave 2, MU-MIMO
Data transfer speed:
Modem 1:
5G - DL: 2.4/3.4 Gbps, UL: 900/550 Mbps
4G (LTE) - DL: 1600 Mbps, UL: 200 Mbps
3G - DL: 42 Mbps, UL: 5.76 Mbps
Modem 2:
4G (LTE) - DL: 150 Mbps, UL: 50 Mbps
3G - DL: 21 Mbps, UL: 5.76 Mbps
2G - DL: 236.8 Kbps, UL: 236.8 Kbps
Wi-Fi:
Dual Band MU-MIMO DL: 867 Mbps
Antenna: 6× SMA connector (5G/LTE), 2× RP-SMA connector (Wi-Fi), 1× SMA connector (GNSS)
Ports: 5× RJ-45 (1× WAN, 4× LAN), 2× SIM slot (mini SIM, 2FF format), 1× digital input (DI), 1× digital output (DO)
PoE support: yes, passive PoE
Power supply: DC 9–50 V (4-pin industrial connector), consumption < 12.5 W
Dimensions: 132 × 95 × 44.2 mm
