Description

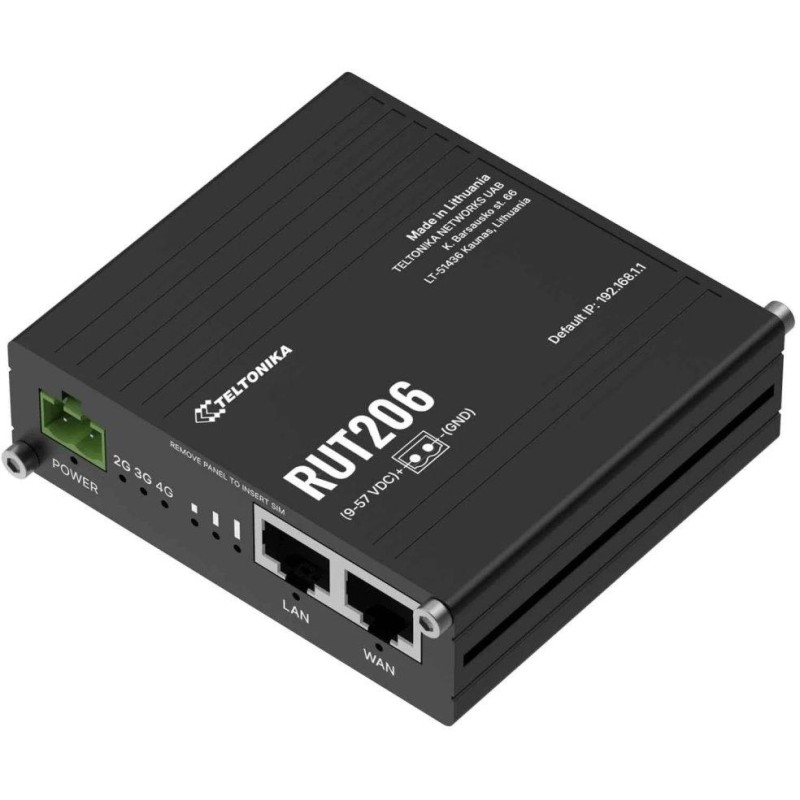

Teltonika RUT206 Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.). This model is equipped with 4G and Wi-Fi wireless connectivity, two SIM slots, 2 Ethernet ports and RS-232 and RS-485 serial interfaces, making it ideal for quick setup of primary and backup connections with remote management. Mounting possible on a DIN rail, wall or flat surface (brackets not included). Connectivity: 4G/LTE, 3G, 2G Wi-Fi: wireless access point with Hotspot function WAN failover: automatic switching to an available backup connection RMS: remote management, access and VPN services Protocols: support for many protocols including MQTT, Modbus TCP, BACNET, OPC UA and DNP3 SIM: 2× SIM slot (mini SIM, 2FF format) Serial interface: 1× RS-232, 1× RS-485 Design: aluminum body, IP30 protection Software: Operating system: RutOS (Linux operating system based on OpenWrt) Mobile functions: SIM switch, status, SMS, USSD, Black/White list, Multiple PDN, band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough Wireless functions: Wi-Fi security, SSID/ESSID, Wi-Fi users, wireless connection functions, MAC filter, QR code generator, TravelMate Network functions: VoIP passthrough support, connection monitoring, firewall, firewall status page, management ports, network topology, hotspot, DHCP, QoS/Smart Queue Management (SQM), DNS over HTTPS, DDNS, network backup, load balancing, SSHFS, traffic management Security: authentication, firewall, attack prevention, VLAN, mobile quota management, WEB filter, access control, SSL certificate generation, 802.1x VPN and tunneling: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core Services: BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS, RMS API For more detailed information, see the attached manual, in the documents tab or on the page wiki.teltonika-networks.com/view/RUTC206. BASIC SPECIFICATIONS Wi-Fi standard: IEEE 802.11b/g/n Data transfer rate: 4G (LTE) - DL: 150 Mbps, UL: 50 Mbps 3G - DL: 21 Mbps, UL: 5.76 Mbps 2G - DL: 236.8 kbps, UL: 236.8 kbps Antenna: 2× SMA connector (LTE), 1× RP-SMA connector (Wi-Fi) Ports: 2× 10/100 Mbps RJ-45 (1× WAN, 1× LAN), 2× SIM slot (mini SIM, 2FF format), 1× 6pin terminal (RS-232, RS-485) PoE support: yes, active (802.3af) or passive (DC 16–57 V) Power supply: DC 9–57 V (2pin industrial connector) Dimensions: 83 × 83 × 25 mm Weight: 132g
