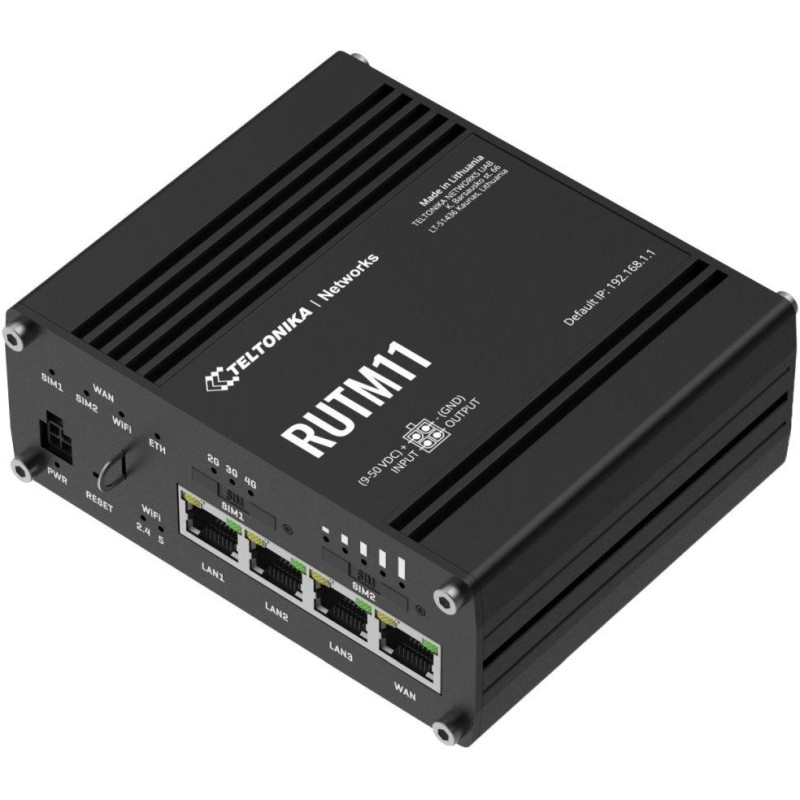

Teltonika RUTM11
Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.).
This model is equipped with 4G (LTE), Wi-Fi 5, two SIM slots and 4 Gigabit Ethernet ports, making it ideal for quickly setting up primary and backup connections with remote management. DIN rail, wall or freestanding mounting possible (brackets not included).
The package includes an 18W power adapter, an Ethernet cable (1.5 m), 5x antennas and a set of SIM adapters.
- Connectivity: 4G/LTE, 3G
- Wi-Fi: wireless access point with Hotspot function
- WAN failover: automatic switchover to an available backup connection
- RMS: remote management, access and VPN services
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Protocols: support for many protocols including MQTT, Modbus TCP and DNP3
- SIM: presence of 2× SIM slots (mini SIM, 2FF format)
- USB: possibility of connecting an external HDD, flash drive, additional modem, printer, USB serial adapter, etc.
- Design: aluminum body, IP30 protection
More detailed information can be found in the attached manual, in the documents tab or on the pagewiki.teltonika-networks.com/view/RUTM11 .
Software:
- Operating system: RutOS (OpenWrt-based Linux operating system)
- Mobile features: SIM switch, status, SMS, USSD, Black/White list, multiple PDNs, band management, SIM idle protection service, APN, Bridge, Passthrough
- Network features: VoIP passthrough support, connection monitoring, firewall, firewall status page, port management, network topology, DHCP, QoS/Smart Queue Management (SQM), DDNS, network backup, load balancing, hotspot, SSHFS, VRF support
- Security: Authentication, firewall, attack prevention, VLAN, mobile quota management, WEB filter, access control
- VPN and Tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
- Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
- Services: BacNET, OPC UA, MODBUS, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS
- Location tracking: GNSS, coordinates, NMEA, NTRIP, server software, Geofencing
BASIC SPECIFICATIONS
Wi-Fi standard: IEEE 802.11b/g/n/ac Wave 2, MU-MIMO
Data transfer speed:
4G (LTE) - DL: 300 Mbps, UL: 50 Mbps
3G - DL: 42 Mbps, UL: 5.76 Mbps
Antenna: 2× SMA connector (LTE), 2× RP-SMA connector (Wi-Fi), 1× SMA connector (GNSS)
Ports: 4× RJ-45 (1× WAN, 3× LAN), 2× SIM slot (mini SIM, 2FF format), 1× USB, 1× digital input, 1× digital output
PoE support: yes, passive PoE
Power supply: DC 9-50 V (4-pin industrial connector), consumption < 12.3 W
Dimensions: 115 × 95.1 × 44.2 mm
