Description

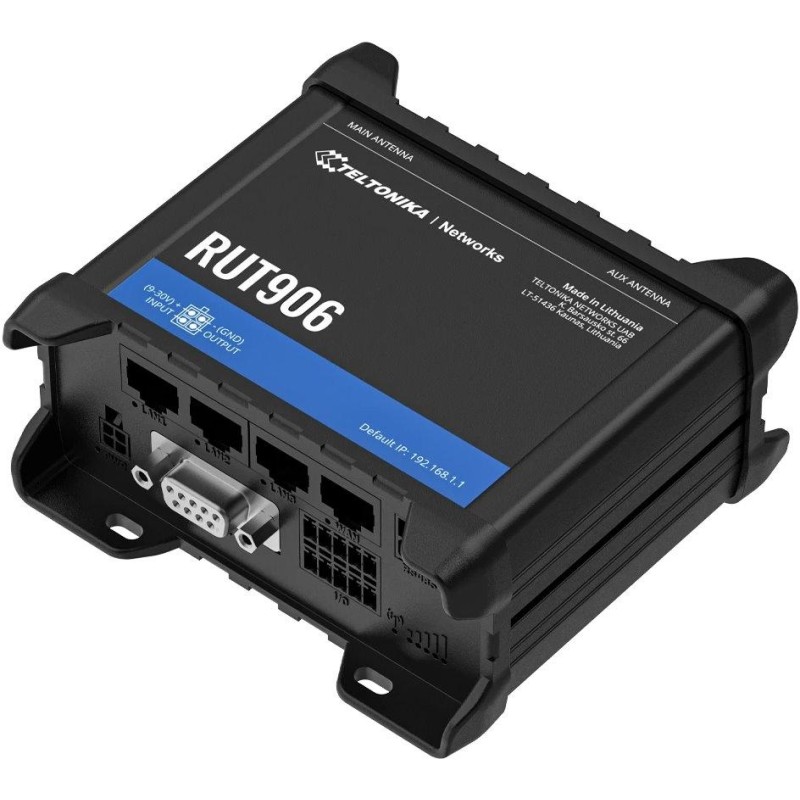

Teltonika RUT906 Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.). This model is equipped with 4G and Wi-Fi wireless connectivity, two SIM slots, 4 Ethernet ports and RS-232 and RS-485 serial interfaces, making it ideal for quick setup of primary and backup connections with remote management. Mounting possible on a DIN rail, wall or flat surface (brackets not included). Connections: 4G/LTE, 3G, 2G Wi-Fi: wireless access point with Hotspot function WAN failover: automatic switching to an available backup connection RMS: remote management, access and VPN services GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS Protocols: support for many protocols including MQTT, Modbus TCP, BACNET, OPC UA and DNP3 SIM: 2× SIM slot (mini SIM, 2FF format) USB: possibility of connecting an external HDD, flash drive, additional modem, printer, USB serial adapter, etc. Serial interface: 1× RS-232, 1× RS-485 Design: aluminum body, IP30 protection Software: Operating system: RutOS (Linux operating system based on OpenWrt) Mobile features: Auto APN, band lock, SIM switching, black/white list of operators, Data/SMS limits Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy based routing Firewall: Port forwarding, traffic rules, custom rules, pre-configured firewall rules, DMZ, NAT, NAT-T, unlimited firewall configuration via CLI VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden GNSS: NMEA forwarding, NTRIP, AVL, Geofencing For more detailed information, see the attached manual, the documents tab, or the wiki.teltonika-networks.com/view/RUTC906 page. BASIC SPECIFICATIONS Wi-Fi standard: IEEE 802.11b/g/n Data transfer rate: 4G (LTE) - DL: 150 Mbps, UL: 50 Mbps 3G - DL: 21 Mbps, UL: 5.76 Mbps 2G - DL: 236.8 kbps, UL: 236.8 kbps Antenna: 2× SMA connector (LTE), 2× RP-SMA connector (Wi-Fi), 1× SMA connector (GNSS) Ports: 4× RJ-45 (1× WAN, 3× LAN), 2× SIM slot (mini SIM, 2FF format), 1× USB, 1× RS-232, 1× RS-485, 1× DI, 1× DO, 1× 10pin industrial socket for inputs/outputs PoE support: yes, passive Power supply: DC 9–30 V (4pin industrial connector), consumption < 7 W Dimensions: 109.5 × 100 × 50 mm
