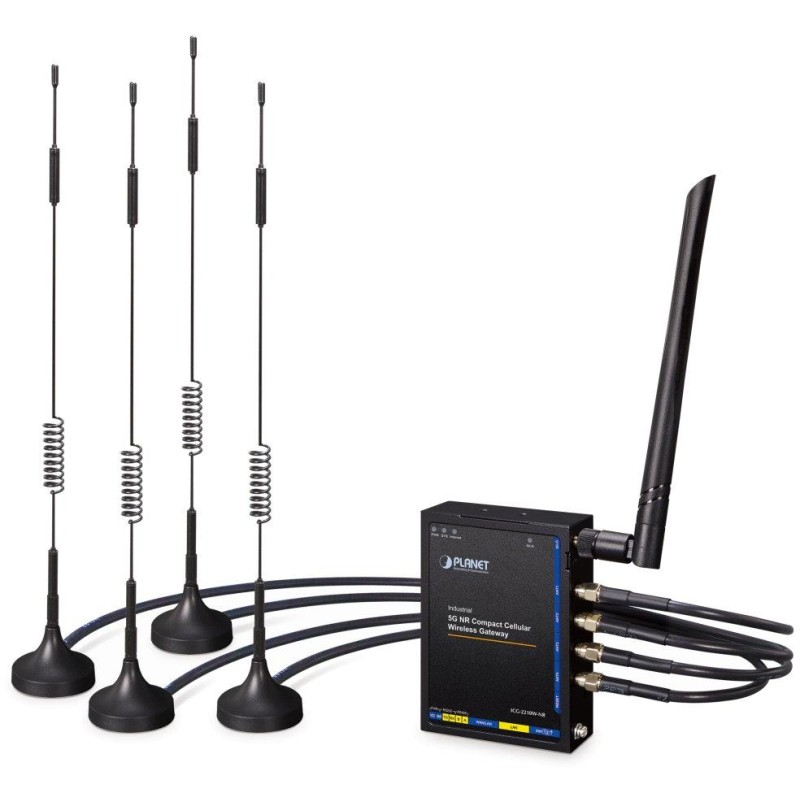

PLANET ICG-2210W-NR
Compact wireless industrial gateway for demanding mobile applications. It is equipped with state-of-the-art features, 5G NR (New Radio) support, two micro SIM slots , two Gigabit Ethernet ports (1× LAN + 1× WAN/LAN) and RS-232/RS-485 serial communication interface. Thanks to its compact design, the ICG-2210W-NR is ideal for confined spaces or vehicle applications.
4× 5G NR antenna (SMA connectors, 5 dBi gain, 3G/4G/LTE/5G mobile networks), download up to 2.4 Gbps, upload up to 500 Mbps , Wi-Fi connection (802.11a/b/g/n/ac).
Web/SNMP v1/v2c/v3 management, SSH v2, TLS v1.2, PLANET Smart Discovery utility support, router with firewall, VPN support, dual WAN , IP30 protection, operating temperature -40 to +75 °C , DIN rail mounting, DC 9–36 V power supply.
The basic communication interface is the 5G NR (NSA/SA) interface with backward support for previous generation networks (4G/LTE/3G), which you can use for places with poor signal coverage, when moving or roaming.
In addition to the gateway function, this device is also equipped with a wired router function via RJ-45 connectors. Thanks to this, the device is also ready for use with a classic wired connection if this installation is necessary.
Planet industrial elements are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments.
Key features:
- Global 5G NR (NSA/SA) and 4G LTE network with dual SIM slots for cellular network redundancy
- Dual WAN - failover
- Automatic failover between 5G NR and Gigabit WAN
- 1× serial port (RS-485) for Modbus applications + 1× serial port (RS-232)
- Wi-Fi connection (802.11a/b/g/n/ac), 150 Mbps for 2.4 GHz; 433 Mbps for 5 GHz
- 1T1R MIMO technology for better throughput and coverage, transmit power control
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful Packet Inspection (SPI) Firewall + Content Filtering
- Advanced DoS/DDOS attack blocking
- Port range routing
- Operating temperature -45 to +75 °C, DIN rail design, fanless
- Metal housing with IP30 protection
BASIC SPECIFICATIONS
Physical properties:
Ports: 1× GbE RJ-45 LAN, 1× GbE RJ-45 LAN/WAN, 1× RS-232, 1× RS-485, 2× micro SIM slot, 1× RP-SMA connector (Wi-Fi), 4× SMA connector (5G-NR)
Mobile connection: 5G-NR (New radio), 4G/LTE, 3G
High Availability: Automatic failover between 5G NR and Gigabit WAN
MODBUS support: yes
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 9–36 V, total power consumption 5.72 W (power supply included)
LED status indication: yes
Operating temperature: -40 to +75 °C, humidity up to 90%
Dimensions: 106 × 76 × 23.5 mm
Weight: 285g
Supported LTE bands and frequencies:
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B28/B29/B30/B32/B38/B40/B41/B42/B43/B66/B71
LTE TDD: B41/B46(LAA)/B48
WCDMA: B1/B5/B8
Wi-Fi interface:
Type: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Throughput: 150 Mbps for 2.4 GHz; 433 Mbps for 5 GHz
Administration functions:
Management: Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2, Smart Discovery utility
Network Security: Cybersecurity, Firewall, SPI, DoS/DDoS attack blocking, content filtering, MAC/IP filter, NAT ALGs, SYN/ICMP Flooding blocking
Routing: static, dynamic, OSPF
Wi-Fi support: built-in hostpot function for Wi-Fi clients
DHCP server: yes
Radius server/client: no
VPN support: max. 30 tunnels, max. 50 Mbps, hybrid, IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
