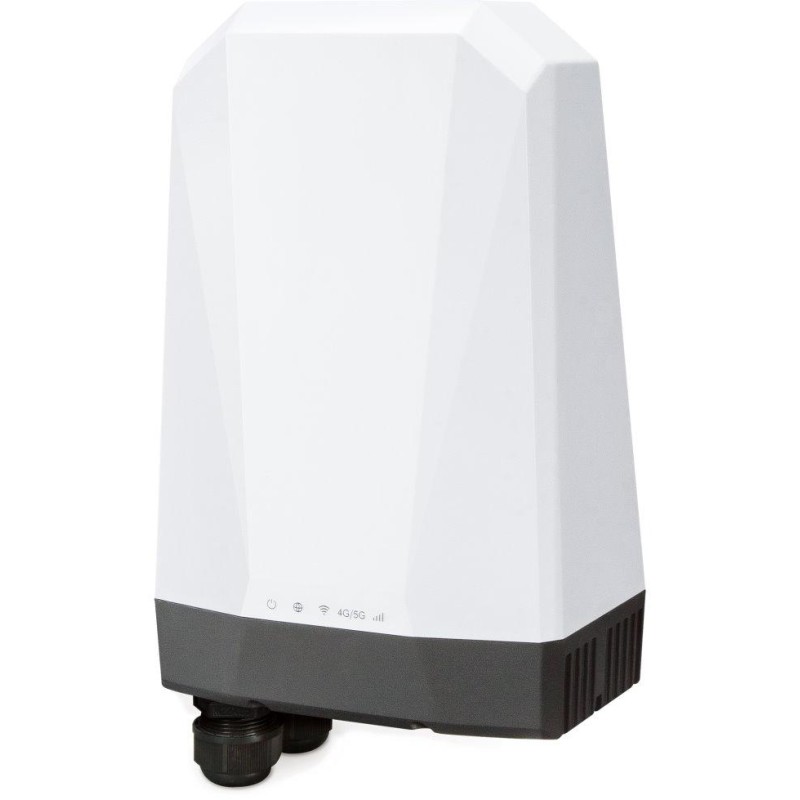

PLANET FWA-2100-NR
The outdoor industrial gateway uses advanced 5G NR (New Radio) technology, dual mobile WAN, providing lightning-fast and stable network access in any environment. Two nano SIM slots ensure uninterrupted Internet access by switching between two different 5G networks. Integrated IPSec VPN function and GRE, SSL, PPTP and L2TP server mechanisms provide complete data security and secure transmission. Built-in AP controller , Captive Portal, RADIUS and DHCP server make it easy for small and medium-sized businesses to deploy secure services without the need for additional servers. The device is powered by PoE+ 802.3at or a 12 V DC power adapter (not included).
Key features:
- Global 5G NR (NSA/SA) and 4G LTE network with dual SIM slots for cellular network redundancy
- Data throughput (5G-NR): up to 2.4 Gbps (download), up to 500 Mbps (upload)
- Dual WAN - failover
- 1× Gigabit Ethernet LAN port
- Wi-Fi connection (802.11n), 72 Mbps
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful Packet Inspection (SPI) Firewall + Content Filtering
- Advanced DoS/DDOS attack blocking
- Port range routing
- High Availability (HA)
- AP controller - access interface (Captive Portal) including RADIUS - management of up to 64 AP Wi-Fi units
- Support for Planet NMS control systems and CloudViewer application
- Two power supply methods: PoE+ (802.3at) or 12 V DC
- Operating temperature -20 to +60 °C
- IP68 housing
BASIC SPECIFICATIONS
Physical properties:
Ports: 1× GbE RJ-45 LAN, 2× nano SIM slot
Mobile connectivity: 5G-NR (New radio), 4G/LTE, WCDMA
High Availability: automatic failover between two 5G NR networks
IP protocol version: IPv4, IPv6
Design: wall/column
Power supply: PoE+ (802.3at, 48 V/ 0.5 A), or DC 12 V/ 1.5 A, total power consumption 18 W (power supply not included)
LED indication of mobile signal status and strength: yes
Operating temperature: -20 to +60 °C, humidity up to 90%
Protection level: IP68
Dimensions: 240 × 150 × 100 mm
Weight: 1020g
Supported LTE bands and frequencies:
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B28/B29/B30/B32/B38/B40/B41/B42/B43/B66/B71
LTE TDD: B41/B46(LAA)/B48
WCDMA: B1/B5/B8
Wi-Fi interface:
Type: IEEE 802.11n, IEEE 802.11b/g/n (for configuration)
Frequency: 2.4GHz
Administration functions:
Management: Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2, NMS controller support, Smart Discovery utility and Planet CloudViewer application
Network Security: Cybersecurity, Firewall, SPI, DoS/DDoS attack blocking, content filtering, MAC/IP filter, NAT ALGs, SYN/ICMP Flooding blocking
Routing: static, dynamic, OSPF
Wi-Fi support: yesController for Planet Wi-Fi AP units, Captive portal and RADIUS
DHCP server: yes
Radius server/client: no
VPN support: max. 30 tunnels, max. 50 Mbps, hybrid, IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
