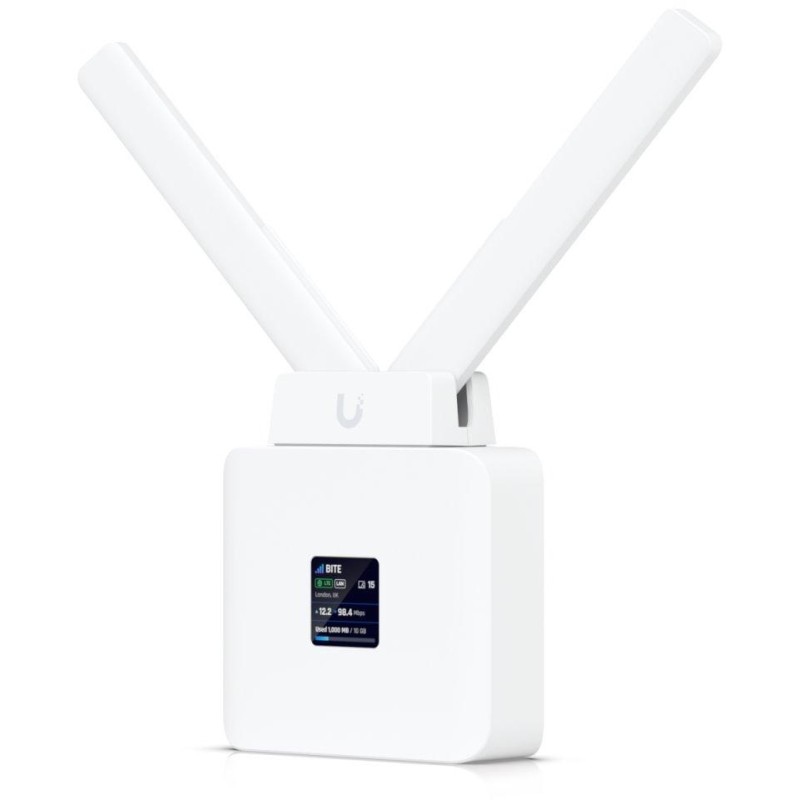

Ubiquiti Mobile Router - LTE router, Wi-Fi 2.4 GHz, IP66 protection, GPS, PoE In, PoE Out, 802.3af/at

Ubiquiti Mobile Router

Manageable mobile Plug-and-Play Wi-Fi router . Simply insert a nano SIM card for LTE data. This router is LTE Cat 4 and has a flexible mounting system that allows for easy installation.

•

• LTE Category 4 Mobile Wi-Fi Router

• 1.3" LCD display

• 2x GbE port (1x PoE in, 1x PoE out)

• Automatic failover between LTE and wired WAN

• PoE output with power up to 10 W (requires power supply via PoE+ switch)

• Power supply via PoE, USB-C or 4pin DC connector

• Integrated GPS module

• Optional Mobility Cloud subscription

• Flexible installation - wall or DIN rail mounting


The device can be managed locally (UniFi mobile app) or in paid cloud mode. In the case of remote cloud management (UniFi Mobility), you can try the free trial version for 30 days. After this period, you can switch back to local management or to the paid mode of 2 €/month or 19 €/year per router. In case of switching to local mode (after the trial version ends), the device will not be reset and will remain configured with the last settings.

Mobility Cloud offers secure remote access and full management via the UniFi Mobility Portal. Mobility Cloud is not required when using a custom nano-SIM. Basic management, such as Wi-Fi configuration, is always available with local access via the UniFi mobile app when connected to the mobile router's Wi-Fi.

BASIC SPECIFICATIONS

Processor and memory: 74 Kc MIPS 775 MHz + 128 MB DDR2

Interface: 2x GbE RJ-45 (Ethernet), LTE (Cat 4), Wi-Fi 4 (802.11b/g/n), nano SIM slot

Throughput (LTE Cat 4): 150 Mbps download, 50 Mbps upload

Power supply: PoE+ (DC 48–54 V), USB-C (5 V), 4pin ATX DC socket, power consumption up to 9 W

Dimensions: 220.6 × 89.8 × 28.8 mm

Weight: 257 g (303 g with holder)

Manual (assembly instructions):

dl.ui.com/qig/umr-eu
