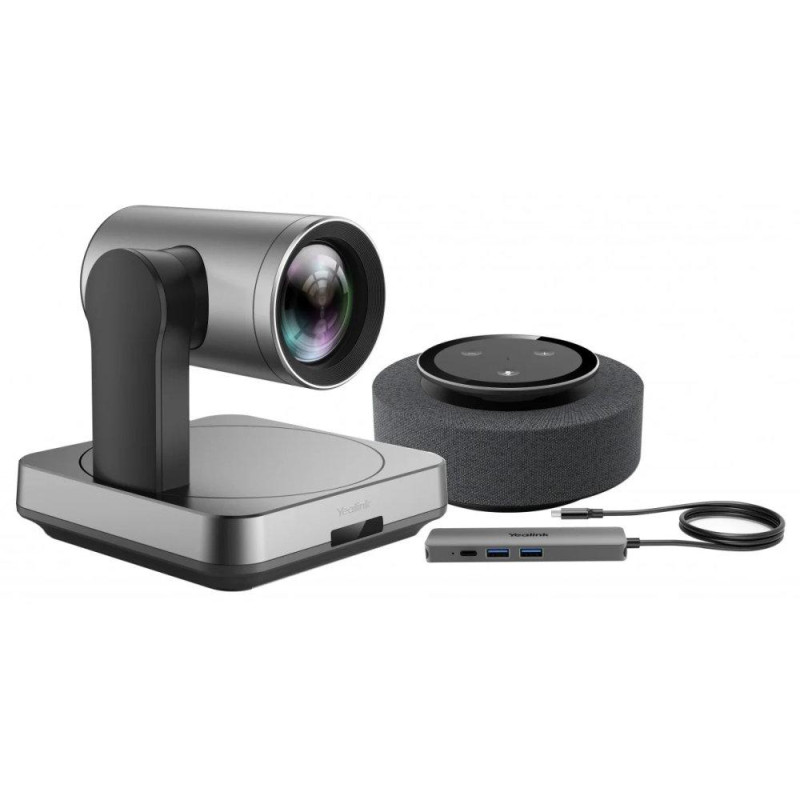

Yealink UVC84-BYOD-050
Yealink UVC84-BYOD Meeting Kit (for medium-sized rooms) is an elegant “Bring Your Own Device” (BYOD) video conferencing solution that allows you to easily connect your own laptop to professional audio and video equipment in a meeting room. It includes a high-quality 4K Yealink UVC84 camera with automatic participant framing and 12x optical zoom , which ensures a clear image even at a greater distance. The package includes Yealink MSpeech - a powerful USB speakerphone with built-in microphones and a speaker that covers a medium-sized room and ensures clear and natural sound. The key element is the BYOD Box , which allows you to connect video, audio and power via a single USB-C cable , without the need for additional drivers. The entire solution is compatible with common platforms such as Zoom, Microsoft Teams or Skype for Business, and is ideal for companies that want to use their own devices, but at the same time have professional technology for hybrid meetings.
BASIC SPECIFICATIONS
UVC84 (4K USB PTZ camera)
Resolution: 4K at 30fps
Lens: 80° angle of view (diagonal), 12x optical zoom + 3x digital zoom
Interface: 1× USB-B 2.0, 1× audio output (3.5mm jack), 1× Yealink VCH (RJ-45)
PTZ: ± 100° rotation, -90° to +40° tilt
Dimensions: 182 × 155 × 155 mm
Weight: 1.15 kg
Color: gray–black
MSpeech USB speakerphone (360° microphone + speaker)
Power: 4W RMS
Frequency range: 100–8000 Hz
Connectivity: USB 2.0
Wireless connection: no
Dimensions: 150 × 150 × 68 mm
Weight: 540g
Color: gray
BYOD Box
Ports: 1× HDMI, 2× USB 3.0, 1× USB-C (power input)
Interface: USB-C
Cable length: 150 cm
Dimensions: 115 × 35 × 10.6 mm
Color: gray
Wiring diagram:
