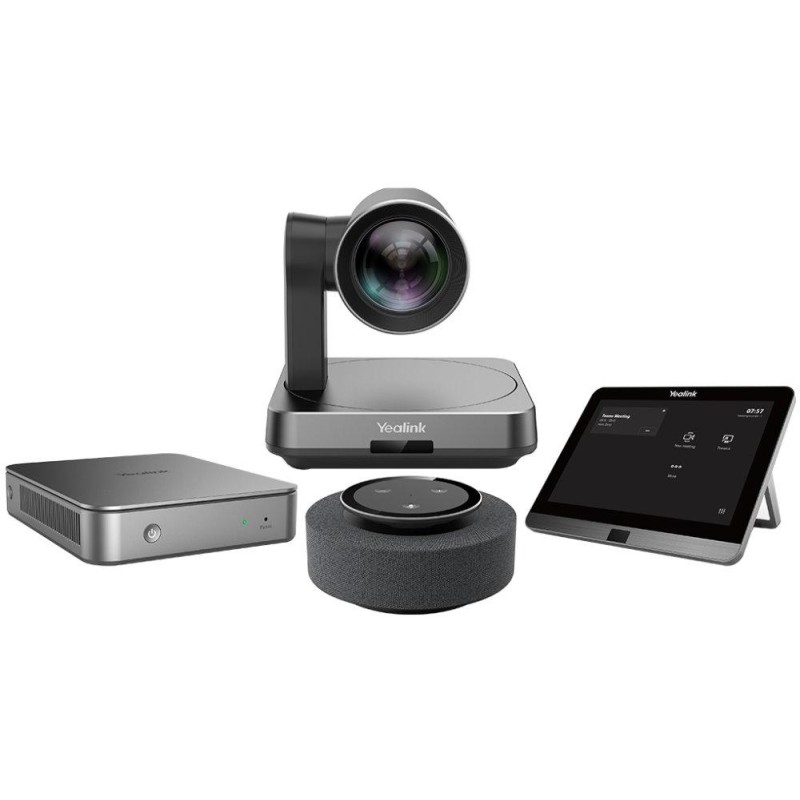

Yealink MVC640
A video conferencing endpoint that is suitable for smaller meeting rooms (for up to 11 people) and is fully integrated with Microsoft Teams and Skype for Business communication systems. The advantage is a camera with PTZ control, 12x optical zoom and auto framing function, which can automatically recognize the speaker and accordingly approach and direct him. The compact MSpeech smart speaker with 10 integrated microphones and a range of 6 meters in a 360° range will provide clear and spacious sound. The entire video conference can be controlled using an 8" touch tablet, which contains several tools for easy management of meetings in the Microsoft Teams environment. During the video conference, it is possible to use wireless content sharing in Full HD quality for even greater comfort (requires optional accessory - wireless presentation dongle WPP20). In addition, wired content sharing is also available by connecting to the USB-C or HDMI port.
BASIC SPECIFICATIONS
MCore (Mini PC)
Processor: Intel Core i5 (8th gen.), 4 cores
RAM size: 8 GB (2× 4 GB)
HDD capacity: 128 GB SSD
Interface: Wi-Fi, Bluetooth, 2× HDMI output, 1× Yealink VCH (RJ-45), 4× USB 3.0, 1× Gbit RJ-45
Dimensions: 197 × 168 × 39 mm
Weight: 1.35 kg
Color: silver
MTouch II (control tablet)
Display diagonal: 8"
Resolution: 1280 × 800 px
Equipment: Wi-Fi AP, flip-up stand
Interface: 1× HDMI input, 1× USB-C input, 1× 3.5 mm jack
Dimensions: 202 × 151 × 100 mm
Weight: 1 kg
Color: silver-black
UVC84 (4K USB PTZ camera)
Resolution: 4K at 30fps
Lens: 80° angle of view (diagonal), 12x optical zoom + 3x digital zoom
Interface: 1× USB-B 2.0, 1× audio output (3.5mm jack), 1× Yealink VCH (RJ-45)
PTZ: ± 100° rotation, -90° to +40° tilt
Dimensions: 183 × 156 × 156 mm
Weight: 2.9 kg
Color: black–silver
MSpeech smart USB speakerphone (360° microphone + speaker)
Power: 4W RMS
Frequency range: 100–8000 Hz
Connectivity: USB 2.0
Wireless connection: no
Dimensions: 150 × 150 × 68 mm
Weight: 540g
Color: gray
Wiring diagram:
