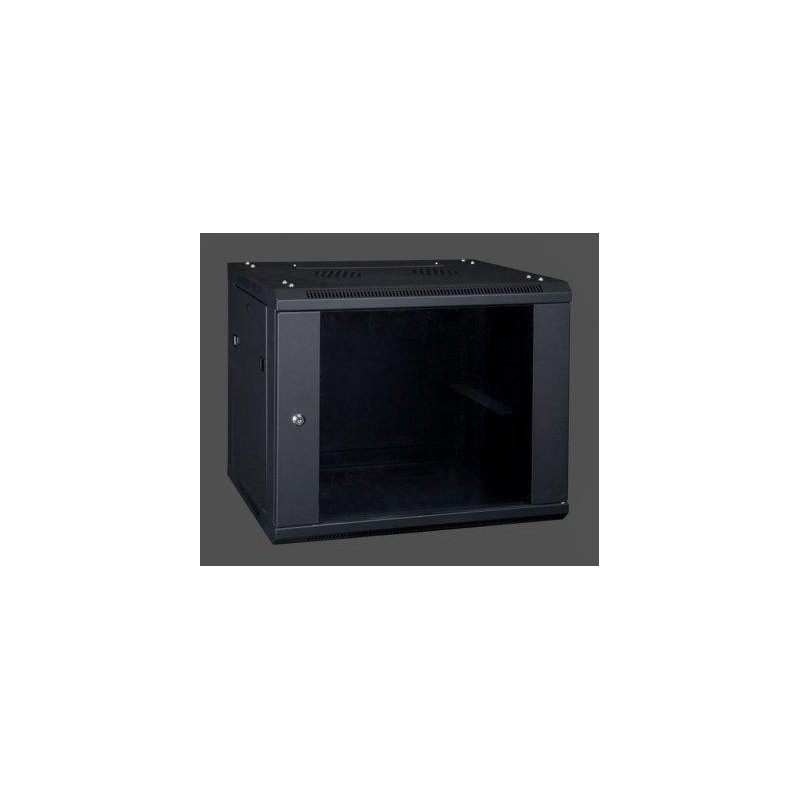

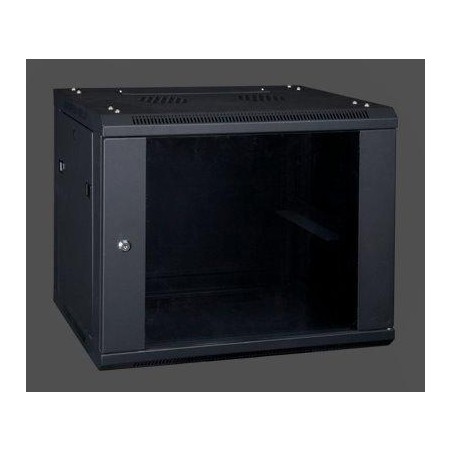

XtendLan 22U/600x550, wall-mounted, two-part, glass door

XtendLan WD-22U-65-BLACK

The distribution cabinet is suitable for installing data and telecommunications equipment.

Universal two-piece cabinets are designed for wall mounting. The cabinets are excellently crafted and have an elegant appearance.
They are made of rolled steel, the supporting parts are made of 1.5mm thick steel, the rest of them are made of 1.2mm steel. The construction allows a static load of 60kg. Comes with an assembly kit.

BASIC SPECIFICATIONS

Rack format: 19"

Capacity: 22U

Degree of protection: IP20

Dimensions: 600 x 550 x 1082 mm (width x depth x height)

Design:

door - safety tempered glass, smoked, lockable

back cover - full

side cover - full, easily removable, can be equipped with a lock

top cover - perforated, with positions for two fans

Color: black, RAL9004

Other features

•

• The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.

• Fasteners (cage nuts, washers, screws) are included with the switchboard

• There is a grounding point for connecting the grounding wire at the bottom of the switchboard.

• There are cable entry holes in the top and bottom of the rear panel and the top of the front panel and are covered with blanking plugs.

• meets international standard IEC 60297-2
