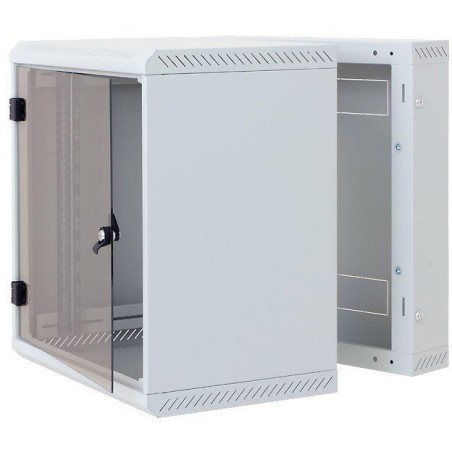

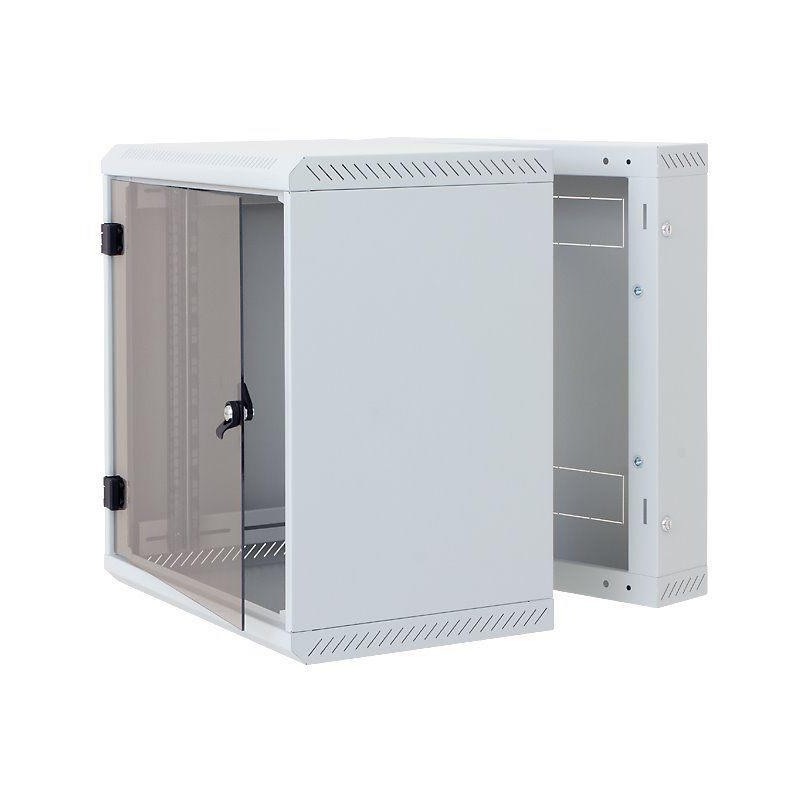

Triton 19" two-part rack 4U/615mm full glass door

Triton RBA 19" 4U

Two-part wall-mounted distribution board with IP20 protection, load capacity when properly hung 20 kg . All-glass door with 4 mm tempered safety glass , robust welded construction. The distribution board includes two sliding vertical rails.

•

• High structural strength - The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure a great appearance of the cabinet.

• Doors - The cabinet doors are all-glass as standard, but can also be all-metal or perforated upon request.

• Glass - All-glass doors are made of tempered safety glass 4 mm thick, which is resistant to common impacts. When broken, it forms a number of small fragments like car glass. The doors are tested in a certified testing laboratory and comply with the requirements of the ČSN EN 12150-1+A standard.

• Flexible door opening - The custom hinge system allows the door to open at an angle of 165°. The door can be easily dismantled.

• Door lock - Allows easy and quick access to the cabinet. In the standard version, the door lock and the hinged part have the same key.

• Easy access - The openable parts of the cabinet allow easy access to the rear of the cabinet. After unlocking the connecting locks, you can easily lift off the front of the cabinet. All parts are interconnected.

• Adjustable vertical rails - 19" vertical rails can be continuously adjusted to any depth of the rack. This makes it easier to mount devices and organize connecting cables.

• Knock-out blanking plugs - Cable entries are provided in the top, bottom and rear of the cabinet, covered with knock-out blanking plugs. To prevent dust from entering, the cables can be sealed in the opening with a brush. A trim edge is used to protect the cables from damage (both are included in the cabinet package).


Features

•

• 19" two-part wall-mounted distribution cabinet with IP20 protection.

• The switchboard is hung directly on the wall.

• The switchboard includes two sliding vertical rails.

• Cabinet construction - compact welded cabinet / all-glass door with 4 mm tempered safety glass, all-metal or perforated on request.

• The maximum permissible load for each door is 10 kg.

• The minimum thickness of the surface treatment is 65 µm.

• Distribution cabinets are designed for the installation of data and telecommunications equipment and its distribution systems.

• All moving and detachable parts of the switchboard are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the switchboard.

• The main M8 grounding screw is located at the bottom of the switchboard.

• Cable entries covered by knock-out blanks are located in the upper and lower parts of the rear wall of the cabinet, others are on the upper and lower walls of the cabinet.


BASIC SPECIFICATIONS

Height: 4U (280mm)

Depth: 615 mm

Width: 600 mm

Max. recommended load: 20 kg

Weight: 17 kg

Accessories:

2× key - front door

4× screw 6×50

4× washer 6.6

4× dowel 10

8× M6 floating nuts

1× dust plug
