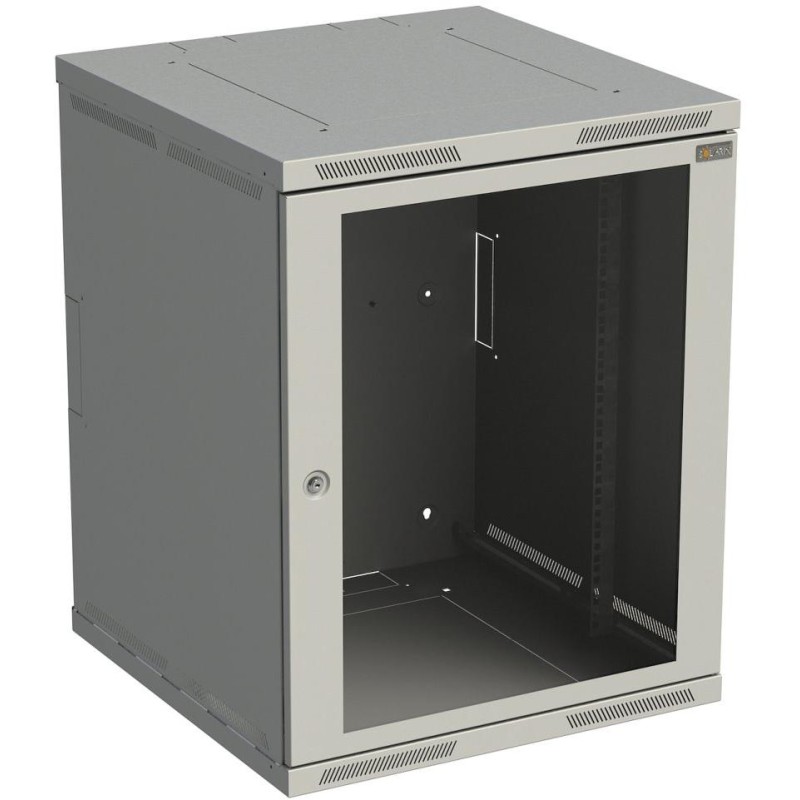

Solarix SENSA-15U-66-11-G
The SENSA wall-mounted data cabinet with riveted construction is a distribution cabinet whose production focused on reliability and a favorable price.
There is a perforation in the top and bottom lid of the cabinet for easy ventilation of the internal equipment.
Cable entry is handled by knockout holes located in the ceiling, bottom, sides of the cabinet and in its back.
The door is fitted with a lock with two keys and hidden pivot hinges.
Manufactured variants
Height: 6U, 9U, 12U, 15U, 18U, 21U
Width: 600 mm
Depth: 400, 500, 600 mm
Construction: 1.3 mm thick sheet metal, 1.5 mm galvanized support rails
Load capacity: standard 45 kg (even load)
IP protection: standard IP20
Color: powder coated in RAL 7035 gray
Doors: sheet metal or with safety glass (EN 12150-1)
Standard configuration
- 1 pair of sliding 19" vertical rails (another pair on request).
- 1 door with lock and hidden hinges.
- Perforations in the top and bottom of the cabinet for easy ventilation.
- Prepared cable entry points in the ceiling, bottom and sides of the cabinet in the form of knock-out holes.
Accessories
A large number of accessories can be ordered for the cabinet, such as blanking caps, tie-down panels and many others, including special accessories at the customer's request.
The cabinet is attached to the wall through the holes in the back wall of the cabinet.
BASIC SPECIFICATIONS
Rack format: 19"
Height: 15U
Degree of protection: IP20
Load capacity: 45 kg
Dimensions: 756 x 600 x 600 mm
Weight: 33 kg
Color: gray (RAL 7035)
