XtendLan Outdoor rack for 19", 6U, depth 400mm, IP55, gray

XtendLan WEH-6U-604036

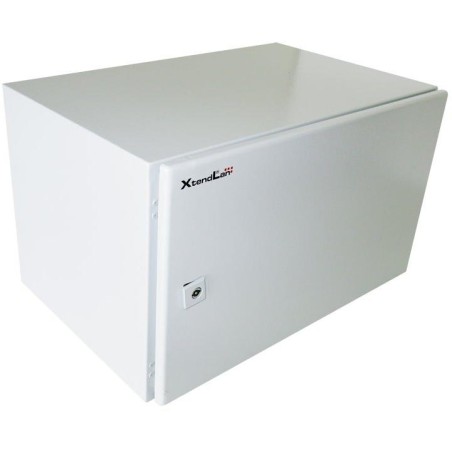

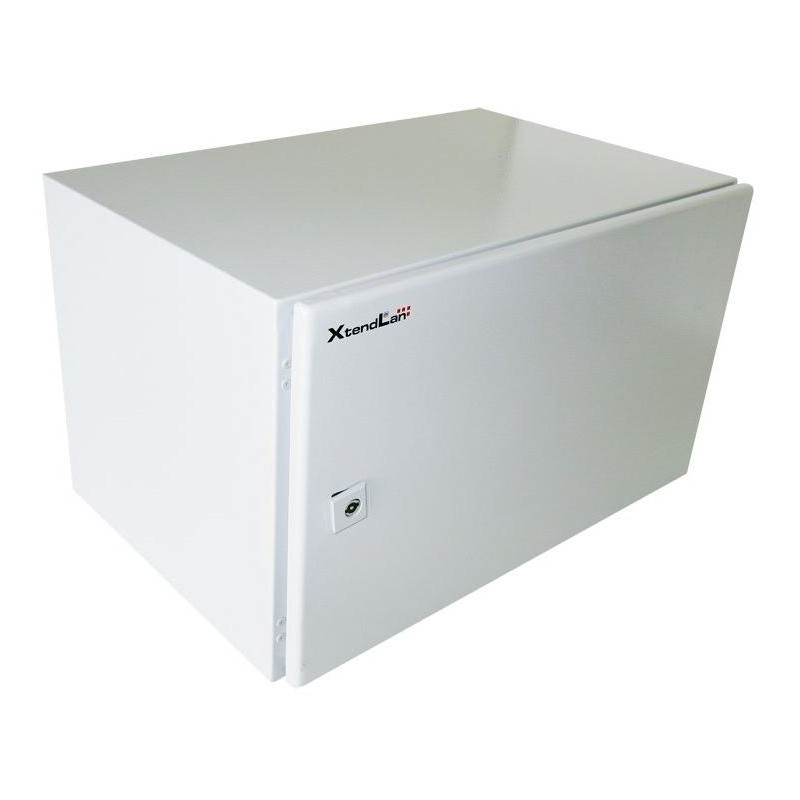

Illustrative photo

The distribution cabinet is suitable for installing data and telecommunications equipment.

Outdoor wall-mounted switchboard made of 1.5 mm thick rolled steel. Three-layer surface treatment.

BASIC SPECIFICATIONS

Rack format: 19"

Capacity: 6U

Protection level: IP55 - waterproof

Dimensions: 600 × 400 × 360 mm (width × depth × height)

Design:

door - solid, opening 110°, reversible opening direction, polyurethane foam seal

back cover - full

side cover - full

top cover - full

Color: gray, RAL7032

Other features

•

• Mounting holes for wall mounting always 20 mm from the outer edges.

• Vertical mounting rails for 19" devices (left and right).

• The connecting material is included with the switchboard.

• In the lower part of the cabinet there is a 303 × 113 mm cable passage with a removable cover.

• It meets IEC60529, EN60529/10.91 and GB4208-93 standards.


Accessories:

- ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)

- mounting screws

- universal key

Dimensional diagram:

Dimensional diagram - detail:

Open switchboard:

Fixed hinges and door grounding:

Lock detail:

Accessories:
