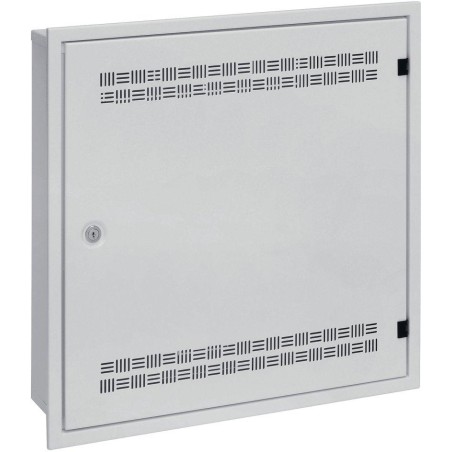

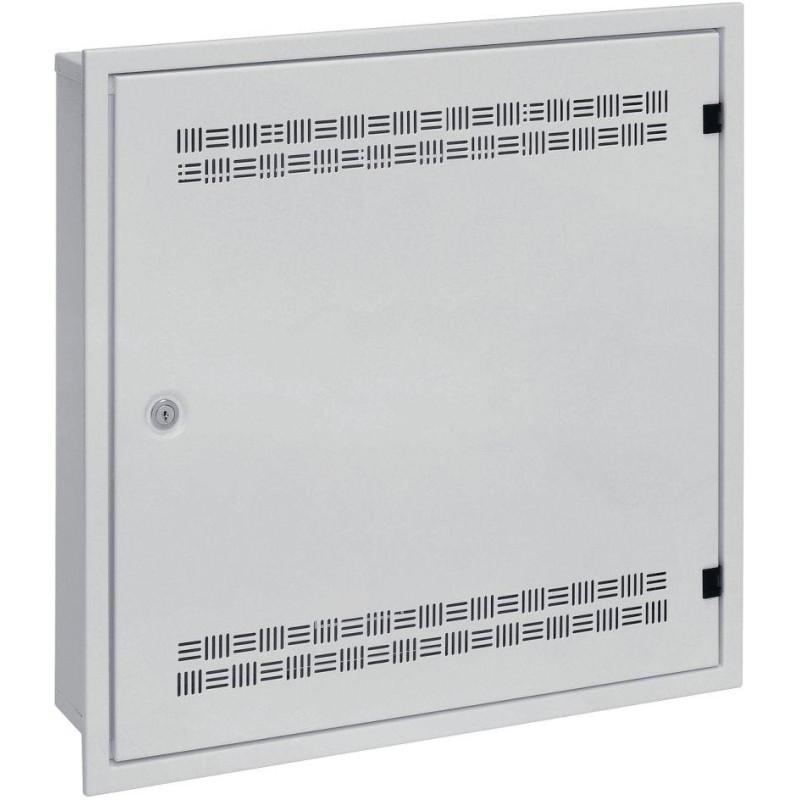

Solarix SOHO LC-18 wall-mounted rack with 2U, 4U and 11U rails, 550x550x150mm, grey RAL7035, with frame for wall mounting

Solarix SOHO LC-18 distribution box

The modern wall-mounted data distribution cabinet Solarix LC-18 is designed for the installation of smaller-scale network cabling elements or for the installation of telecommunications distribution elements.

The Solarix LC-18 cabinet is made of a skeleton that is characterized by great strength and rigidity. The front of the cabinet is equipped with a sheet metal door with two hinges and a metal lock with a patent key. These sheet metal doors are supplemented with perforations for passive ventilation of the equipment located in the cabinet.

Cable entry is possible through pre-prepared holes in the back and in all walls of the cabinet. There are holes for wall mounting in the rear of the cabinet.

19" frames have dimensions of 4U and 11U in the vertical direction and 2U in the horizontal direction.

There are holes prepared on the cabinet and frame that determine the positions during assembly. The frame is flush with the door, then the door opening angle is approximately 110°, or the door is extended from the frame, then the door opening angle is 180°.

•

• 3 pairs of vertical 19" rails for mounting 2U, 4U and 11U devices included


• door can be opened at an angle of 180°, option to choose right or left closing


• perforated front door with 1-point patent key lock


• cable entries in the bottom, top and rear


• 4 holes with a diameter of 6.5 mm in the back for wall mounting


• grounding cable connecting the cabinet body to the door


• load capacity 30 kg


• protection level: IP20



BASIC SPECIFICATIONS

Rack format: 19"

Degree of protection: IP20

Dimensions: 550 x 550 x 150 mm

Color: gray (RAL 7035)
