XtendLan WS-18U-66-BL-UP

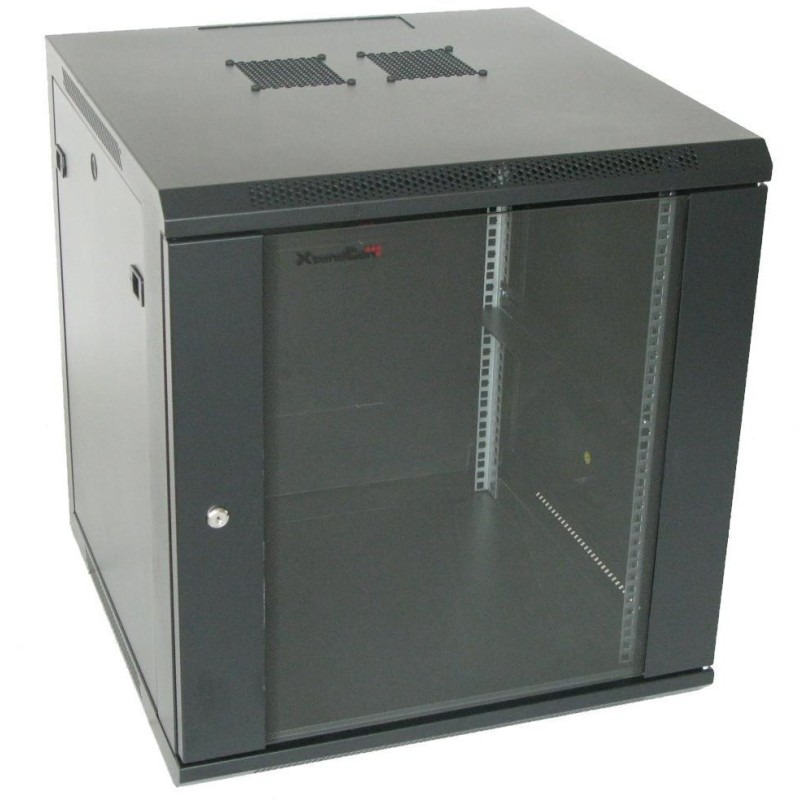

This is an illustrative photo only, the rack is 18U high.
Distribution cabinet for installing data and telecommunications equipment.
A universal one-piece distribution box designed for wall mounting. The distribution box is excellently crafted and has an elegant appearance.
Its attachment is easy thanks to the included patented mounting panel. It is made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of the parts are made of 1.2 mm steel sheet.
The design allows a static load of 60 kg . The front door is lockable . The side panels are equipped with latches and are removable by hand. They can be equipped with a lock, which is installed in a prepared hole.
Comes with a mounting kit .
This switchboard is delivered disassembled.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 18U
Degree of protection: IP20
Dimensions: 600 × 600 × 900 mm (width × depth × height)
Design:
door - tempered safety glass, smoked, reversible opening direction, lockable
back cover - full
side cover - full, easily removable, can be equipped with a lock
top cover - perforated, with positions for two fans
Color: black, RAL9004
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, screws) are included with the switchboard
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- meets the international standard IEC 60297-2
Assembly instructions (cz)
