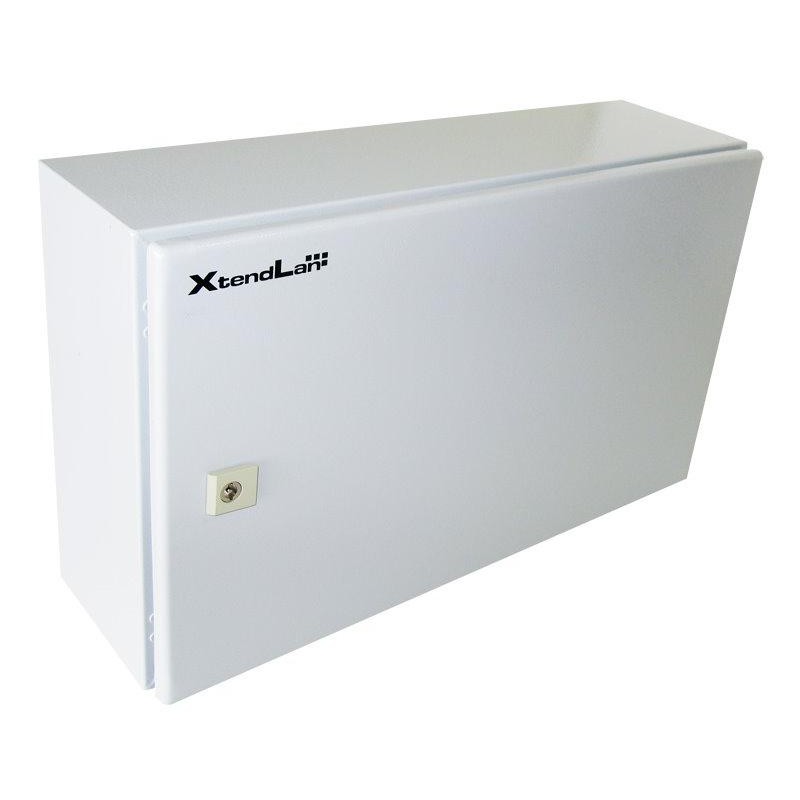

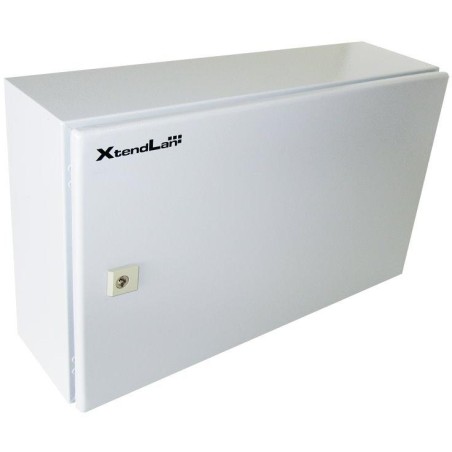

XtendLan Outdoor rack for 19", 6U, depth 180mm, IP55, gray

XtendLan WEH-6U-601836

The distribution cabinet is suitable for installing data and telecommunications equipment.

Outdoor wall-mounted switchboard made of 1.5 mm thick rolled steel. Three-layer surface treatment.

BASIC SPECIFICATIONS

Rack format: 19"

Height: 6U

Protection level: IP55 - waterproof

Dimensions: 600 x 360 x 180 mm

Design:

door - solid, opening 110°, reversible opening direction, polyurethane foam seal

back cover - full

side cover - full

top cover - full

Color: gray, RAL7032

Other features

•

• Mounting holes for wall mounting always 20 mm from the outer edges

• vertical mounting rails for 19" devices - left and right

• Fasteners are included with the switchboard.

• There is a passage for cabling in the lower part of the cabinet

• meets IEC60529, EN60529/10.91 and GB4208-93 standards


Accessories:

ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)

mounting screws

master key

Open switchboard:

Fixed hinges and door grounding:

Lock detail:

Accessories:
